Adafruit RGB Matrix Bonnet for Raspberry Pi

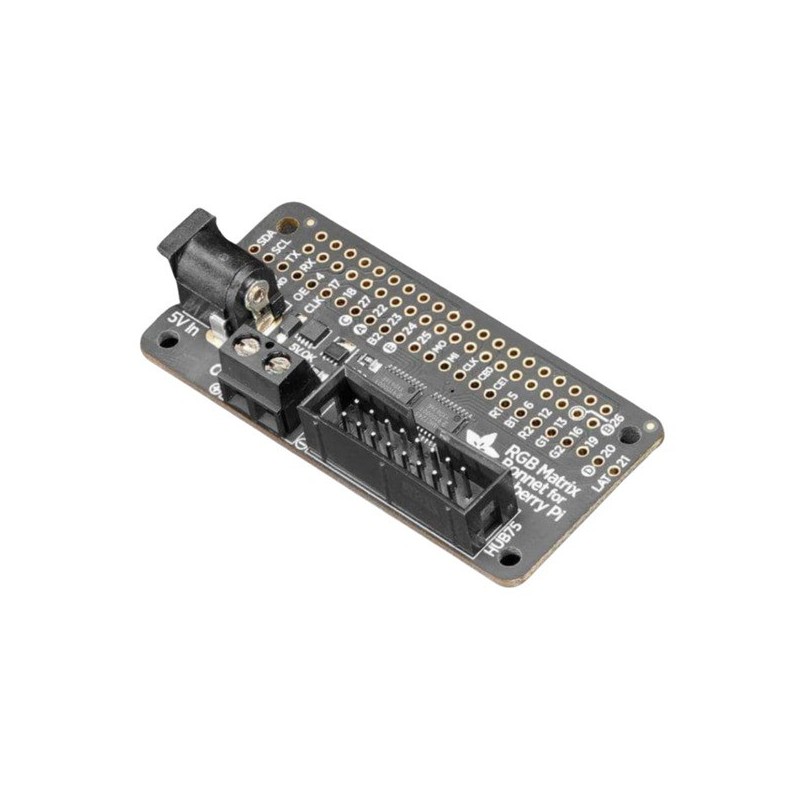

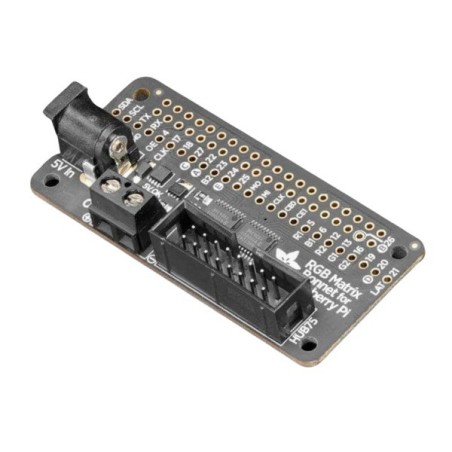

You can now create a dazzling display with your Raspberry Pi with the Adafruit RGB Matrix Bonnet. These boards plug into your Pi and make it super easy to control RGB matrices such as those we stock in the shop and create a colorful scrolling display or mini LED wall with ease.

• "Bonnet" boards work on Raspberry Pi with a 40-pin GPIO header — Zero, Zero W/WH, Model A+, B+, Pi 2, Pi 3, Pi 4They do not work with older 26-pin boards like the original Model A or B. Note with the Pi Zero, you may need to solder a header on the Pi board; it’s normally unpopulated on that model.
• Currently the Matrix driving software library does not support the Pi 5 (and no ETA when it might be done) so best to use a Pi 4 until Pi 5 support is complete
• If using a Pi that has PoE headers on it, take care not to press down on the matrix bonnet so hard that it may make contact with the 2x2 PoE pins. A riser header will help keep the board up and out of the way.
• We also have an older, HAT version of our RGB Matrix design. The HAT version does not come fully assembled, does not support 1/32-scan matrices, but does come with a real time clock (RTC)

This bonnet will make your matrix projects super easy and avoid wiring complexity. Let me break it down for you:

• Simple design - plug in power, plug in IDC cable, run our Python code!
• Power protection circuitry - you can plug a 5V 4A wall adapter into the bonnet and it will automatically protect against negative, over or under-voltages! Yay for no accidental destruction of your setup.
• Onboard level shifters to convert the RasPi's 3.3V to 5.0V logic for clean and glitch free matrix driving
• Fully assembled compact design no soldering required! Plugs onto any Raspberry Pi with a 2x20 connector, and you're ready to glow.

Works with any of our 16x32, 32x32 or 32x64 RGB LED Matrices with HUB75 connections. You can also use 64x64 matrices by soldering a small jumper on the PCB. Want more lights? No problem, chain multiple matrices together for a longer display - we've only tested up to 32x128 but it works just fine. The bigger the display the harder it is on the Pi, so keep that in mind if you're using a lower-powered Pi Zero.

Please note: this Bonnet is only for use with HUB75 type RGB matrices. Not for use with NeoPixel, DotStar, or other 'addressable' LEDs.

Each order comes with a fully assembled and ready to go bonnet with all parts assembled. RGB Matrix is not included, please check out our fine selection

A 5V power supply is also required, not included, for power the matrix itself; the Pi cannot do it, to calculate the power, multiply the width of all the chained matrices * 0.12 Amps : A 32 pixel wide matrix can end up drawing 32*0.12 = 3.85A so pick up a 5V 4A power supply. We also stock 5V 10A power supplies. Actual power usage will vary with how many LEDs you light up at once.

Raspberry Pi not included (but we have 'em in the shop so pick one up, Zero, Model A+, B+, Pi 2 , 3, or Pi 4)

We have a full guide tutorial with installation, software, datasheets, EagleCAD PCB files, Fritzing objects and more!
