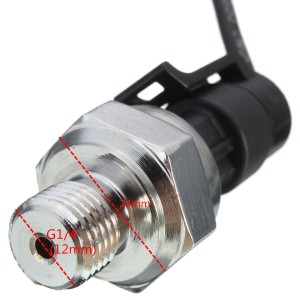

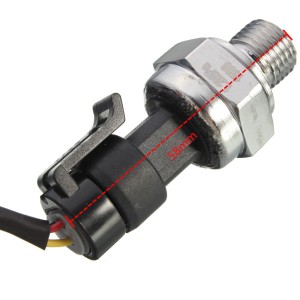

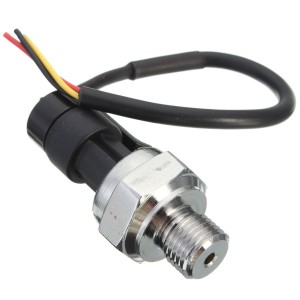

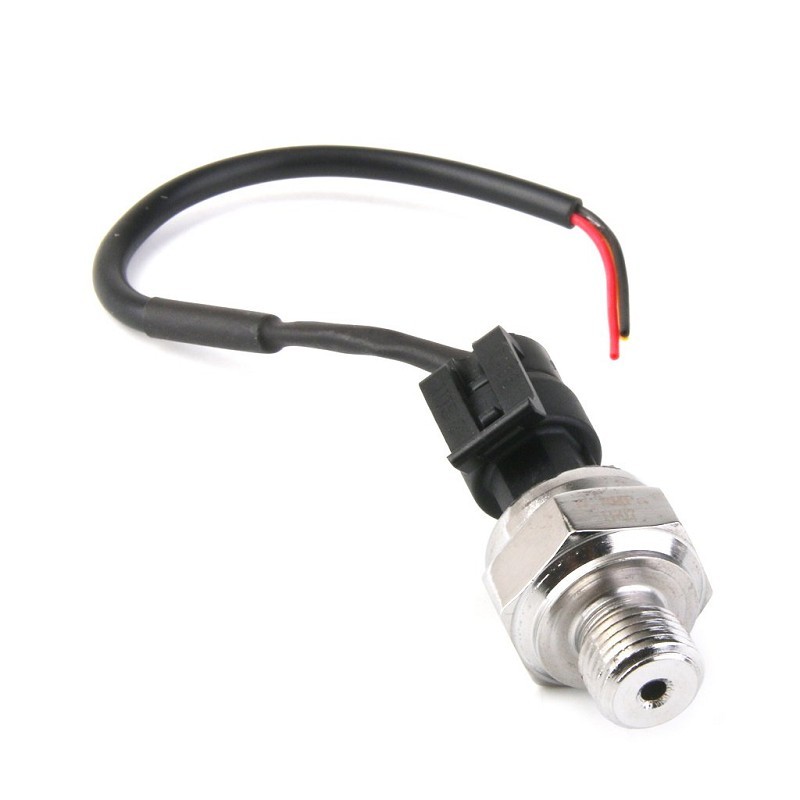

1.2MPa G1/4" inch 5V Stainless Steel Pressure Transducer Sensor

Reference RBD-2966

Stainless steel pressure transducer with G1/4" threaded interface
Pressure range up to 1.2MPa, suitable for medium-pressure systems
High accuracy (±1.5%FS) with <2ms response time
Output: 0.5–4.5VDC @ 5V input, low power <10mA consumption
IP65-rated waterproof body with surge voltage protection
Ideal for oil, gas, hydraulic, and industrial automation monitoring

Description
Product Details

Description

The 1.2MPa G1/4" Stainless Steel Pressure Transducer Sensor is a compact and durable sensor designed for accurate pressure measurement in medium-pressure environments. Featuring a stainless steel body with IP65 waterproof protection, this sensor delivers a 0.5–4.5V analog output at 5V input, making it easy to integrate with microcontrollers, PLCs, and monitoring systems. With precision compensation technology, high accuracy (±1.5%FS), and a rapid <2ms response time, it is an excellent choice for oil tanks, gas storage, hydraulic systems, and industrial automation applications requiring stable and reliable performance. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Medium-Pressure Range – Up to 1.2MPa, suitable for tanks and pipelines.
High Accuracy – ±1.5%FS ensures reliable and stable readings.
Fast Response – <2ms for real-time monitoring.
Durable Stainless Steel Body – Corrosion-resistant and long-lasting.
Analog Output – 0.5–4.5VDC, compatible with standard controllers.
Low Power Consumption – <10mA operating current.
IP65 Waterproof & Surge Protection – Safe for industrial use.
Compact & Lightweight – Easy to mount in limited spaces.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Oil & Gas Storage Tanks – Reliable medium-pressure detection.
Hydraulic Systems – Monitoring fluid pressure in machinery.
Industrial Automation – Integration with PLCs and control systems.
Water & Liquid Systems – Non-corrosive medium pressure measurement.
IoT & Robotics Projects – Pressure sensing for smart systems.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications

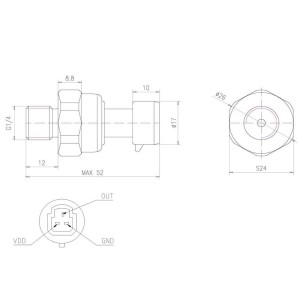

Interface Size	G1/4" (2-point thread)
Working Voltage	5V ±0.5VDC
Output Voltage	0.5–4.5VDC @ 5V
Working Current	<10mA
Working Pressure Range	0–1.2MPa
Maximum Applied Pressure	2.4MPa
Destruction Pressure	1.2MPa
Suitable Medium	Gas/liquid (clean, non-corrosive)
Accuracy	±1.5%FS
Response Time	<2.0ms
Protection Level	IP65
Working Temperature	-20°C to 105°C
Storage Temperature	-20°C to 105°C
Body Material	Stainless Steel
Shipment Weight	0.0508 kg
Shipment Dimensions	6 × 5 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 1.2MPa G1/4" inch 5V Stainless Steel Pressure Transducer Sensor

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details

Reference RBD-2966

In stock 5 Items

Specific References

EAN13: 2966
