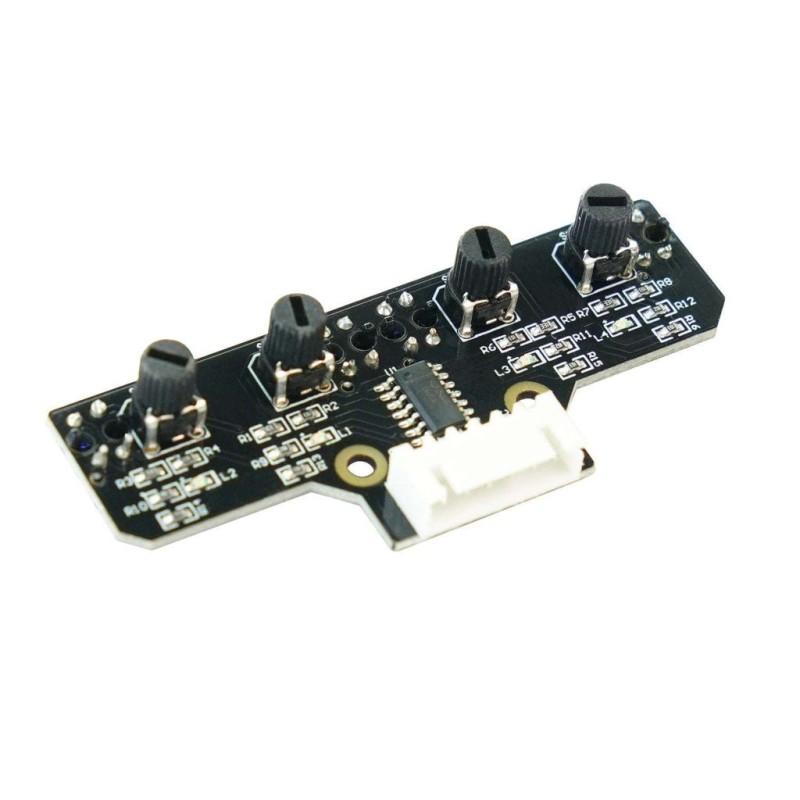

Yahboom 4 Channel Infrared Line Following Tracking Sensor Module

Reference RBD-2414

4-Channel Infrared Tracking Sensor: Optimized spacing and design for precise line detection.
Supports Complex Tracks: Capable of recognizing 90° curves and challenging tracks.
Adjustable Sensitivity: Knob-type adjustable resistors for fine-tuning detection.
Wide Compatibility: Easily connects to smart cars or expansion boards using cables or DuPont connectors.
Robust Design: Includes mounting holes for M3 copper posts or screws for secure installation.

Description
Product Details

Description

The Yahboom 4 Channel Infrared Line Following Tracking Sensor Module is a versatile and precise tracking module designed for smart car and robotics applications. Equipped with four infrared probes, the inner probes ensure accurate black line detection, while the outer probes provide early warnings and enhanced track recognition. It supports complex track layouts, including 90° curves. The module features adjustable sensitivity via knob-type resistors, making it adaptable for various surfaces and conditions. With an easy-to-connect interface and durable design, this sensor module is an excellent choice for robotics enthusiasts and professionals looking for reliable line-following performance. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Precise Detection: Four infrared probes with optimized spacing ensure accurate black line recognition.
Supports Advanced Tracks: Capable of handling 90° curves and complex layouts.
Adjustable Sensitivity: Knob-type resistors and operational amplifiers allow fine-tuning for different conditions.
Easy Integration: Compatible with smart cars and expansion boards using cables or DuPont connectors.
Robust Build: Includes M3 mounting holes for secure attachment using copper posts or screws.
Wide Detection Range: Adjustable detection distance from 1mm to 10cm, recommended at 0.8cm.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Line-Following Robots: Ideal for smart cars and autonomous navigation systems.
Obstacle Avoidance Projects: Enhances the ability to detect and navigate obstacles.
Race Tracks and Competitions: Handles sharp curves and complex layouts efficiently.
DIY Robotics Projects: Perfect for hobbyists creating custom robotics systems.
STEM Education: Useful for teaching and learning robotics and sensor technology.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Maximum Turning Angle	320°
Working Voltage	3.3V ~ 5V
Working Temperature	-10°C ~ +50°C
Installation Aperture	M3 Copper Post/Screw
Working Current	10mA ~ 50mA
Detection Distance	1mm ~ 10cm adjustable (0.8cm recommended)
Size	70mm x 29mm
Output Interface	6-pin interface (4-channel signal, positive & negative power supply)
Output Signal	TTL level (connects directly to MCU I/O port)
Shipment Weight	0.02kg
Shipment Dimensions	7 x 3 x 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Datasheet

Package Includes:

1 x Yahboom 4 Channel Infrared Line Following Tracking Sensor Module
