Sipeed Tang Primer 20K FPGA Development Kit GW2A FPGA Dock Board

Product Description:
The Sipeed Tang Primer 20K FPGA Development Kit is a high-performance, feature-rich FPGA learning and development platform powered by the Gaoyun GW2A-LV18 FPGA chip with 20K LUT4. This full-function package (Package Four) includes the 20K core board, docking board, essential accessories, and multiple interface options, making it an ideal choice for FPGA development, AI acceleration, and embedded system prototyping.

With a wide range of onboard peripherals—such as HDMI output, Ethernet, RGB LCD interface, DVP camera connector, audio output, PMOD expansion, and USB-UART/JTAG—it offers a complete environment for both beginners and advanced FPGA developers.

Key Features:

• Powerful FPGA Core: Gaoyun GW2A-LV18 with 20K LUT4 for high-speed logic processing.

• Memory & Storage: 1Gbit DDR3 SDRAM, 32Mbit SPI Flash, TF card slot.

• Rich I/O Interfaces: 4 × PMOD connectors, RGB LCD interface, SPI LCD connector, DVP camera interface, MIC array connector.

• Multimedia Support: HDMI output, 3.5mm audio jack.

• Network & USB: 10/100M Ethernet port, USB 2.0 PHY, USB-UART, JTAG support.

• Expansion Ready: DDR3 SODIMM socket for easy upgrades.

• User-Friendly: 6 user LEDs, 5 push buttons, power/reset switches.

Technical Specifications:

• FPGA Model: Gaoyun GW2A-LV18PG256C8/I7

• Logic Units: 20K LUT4

• Memory: 1Gbit DDR3 SDRAM (onboard), DDR3 SODIMM slot

• Storage: 32Mbit SPI Flash, TF card slot

• Interfaces:

  • HDMI output

  • 4 × PMOD connectors

  • SPI LCD connector

  • RGB LCD connector

  • DVP camera connector

  • MIC array connector

  • 3.5mm audio jack

  • 10/100M Ethernet (RJ45)

  • USB 2.0 PHY, USB-UART & JTAG

• Power Supply: DC 5.5×2.5mm jack or USB Type-C

• Programming/Debug: Onboard USB-JTAG & UART circuits

• Dimensions: Core Board + Dock Board combo

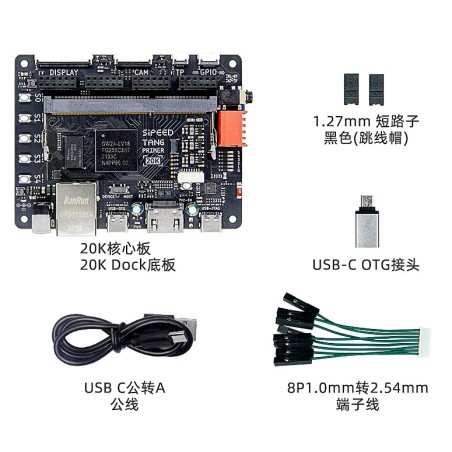

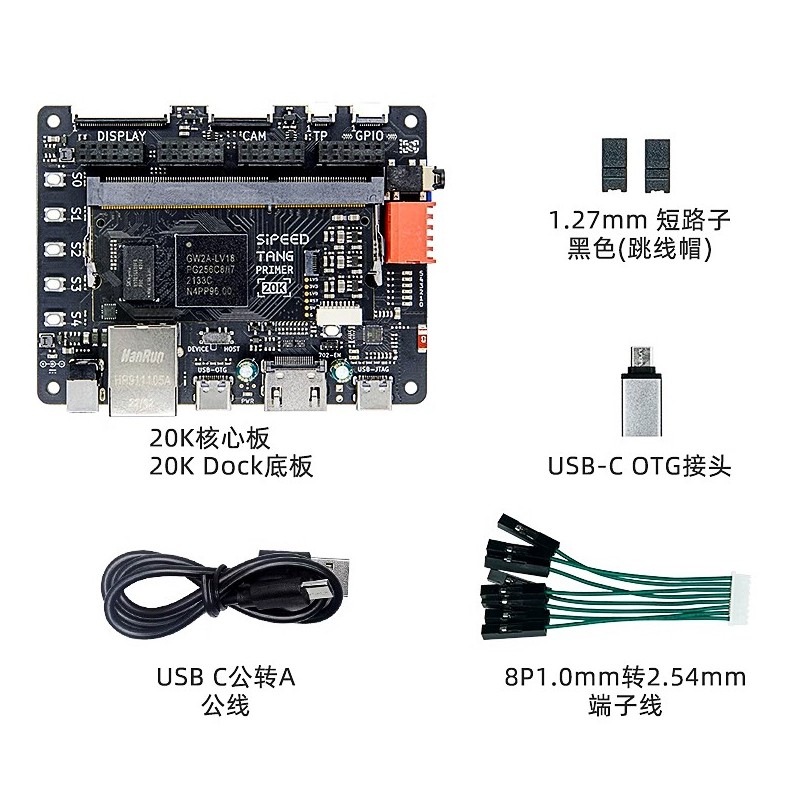

Package Includes (Full Package – 套餐四):

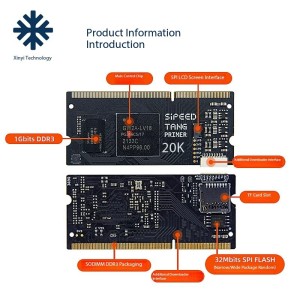

• 1 × Tang Primer 20K Core Board

• 1 × Tang Primer 20K Dock Board

• 2 × 1.27mm Black Jumpers

• 1 × USB-C OTG Adapter

• 1 × USB-C to USB-A Cable

• 1 × 8P 1.0mm to 2.54mm Jumper Wire Cable

• User Documentation

Applications:

• FPGA learning and education

• Digital signal processing

• AI acceleration and edge computing

• Embedded system prototyping

• High-speed data processing projects

Why Choose the Sipeed Tang Primer 20K Kit?
With powerful FPGA capabilities, abundant I/O options, multimedia support, and a comprehensive accessory pack, the Tang Primer 20K Full Package is an all-in-one solution for developers, students, and engineers looking to explore FPGA-based projects with ease and flexibility.

Bring your FPGA projects to life with the Sipeed Tang Primer 20K Development Kit—power, versatility, and learning all in one package!
