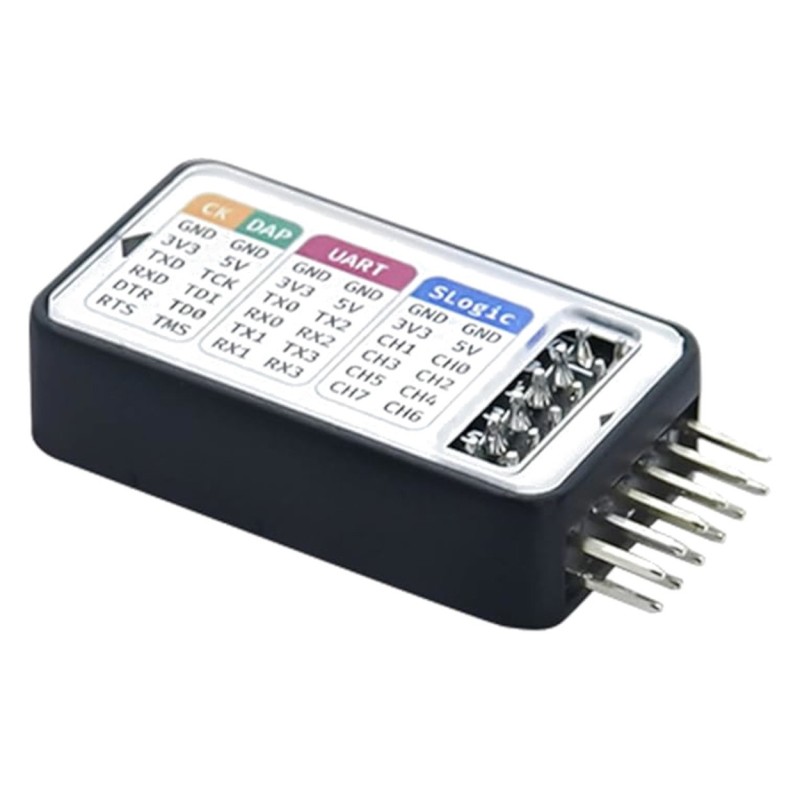

Sipeed SLogic Combo 8 Kit Logic Analyzer Serial Port DAP-Link & CK-Link 4-in-1 Debugging Tool

Product Description

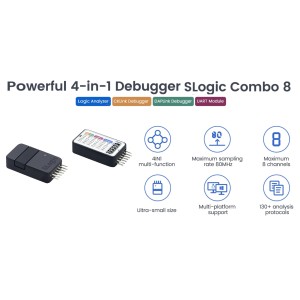

The Sipeed SLogic Combo 8 Kit is a multi-functional 4-in-1 debugging tool designed for embedded developers, engineers, and hardware enthusiasts. Compact yet powerful, it integrates a logic analyzer, USB-to-UART module, DAP-Link, and CK-Link into a single device.

With a sampling rate of up to 80 MHz and the ability to capture and parse over 130 communication protocols, the SLogic Combo 8 delivers robust performance for signal analysis and embedded debugging. Switching between modes is simple — press the function button and check the indicator color to toggle between analyzer, UART, or debugging modes.

Whether you’re debugging RISC-V or ARM chips, analyzing signals, or simulating multiple serial ports, the SLogic Combo 8 is a versatile companion that reduces the need for multiple tools in your development setup.

Key Features

• 4-in-1 Functionality: Logic Analyzer, USB-to-UART, DAP-Link, CK-Link

• Logic Analyzer:

  • 8 channels, up to 80 MHz sampling rate

  • Supports 130+ protocols for analysis

  • Edge triggering (rising/falling/high/low) for precision signal capture

• Serial Communication (UART):

  • Supports up to 4 serial ports simultaneously

  • Max baud rate: 20 Mbps

  • Total bandwidth up to 42 Mbps

• DAP-Link / CK-Link Debugging:

  • Debug ARM and RISC-V MCUs

  • Debug serial port up to 20 Mbps

  • Typical burning speed: 110 KB/s

• High-Speed Data Transfer:

  • Transmission bandwidth up to 320 Mbps

  • Typical configuration: 80M@4CH, 40M@8CH

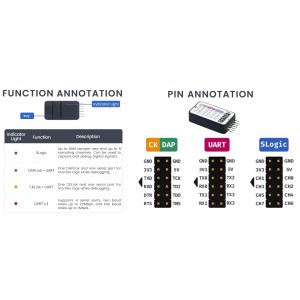

• Easy Switching: One-button mode change with LED color indicator

• Compact and Portable: Replaces multiple tools with one lightweight device

Specifications

• Model: Sipeed SLogic Combo 8 Kit

• Channels: 8 CH

• Max Sample Rate: 80 MHz

• Input Range: 0 ~ 3.6V

• Thresholds: VIH > 2V, VIL < 0.8V

• CK-Link JTAG Clock Rate: 16 MHz

• CK-Link Dump Speed: ~1200 KB/s

• DAP-Link Typical Burning Speed: ~110 KB/s

• UART Max Baud Rate: 2×20 Mbps + 2×1 Mbps

• Transmission Bandwidth: 320 Mbps

• Color: Black

Applications

• Embedded system debugging (RISC-V, ARM MCUs)

• Logic analysis and signal acquisition

• Multi-serial port emulation for IoT and robotics

• Protocol analysis for hardware development

• Educational use in electronics labs

Package Includes

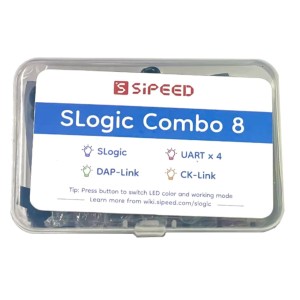

• 1 × Sipeed SLogic Combo 8 Kit (Black)

Why Choose This Tool?

The Sipeed SLogic Combo 8 Kit condenses the functionality of multiple tools into a single, affordable solution. From logic analysis to multi-serial debugging and MCU programming, it’s a must-have for developers seeking efficiency, portability, and versatility in embedded system development.
