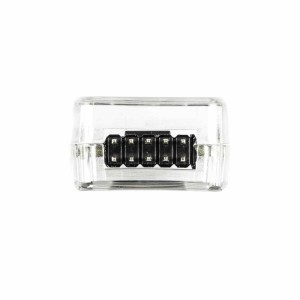

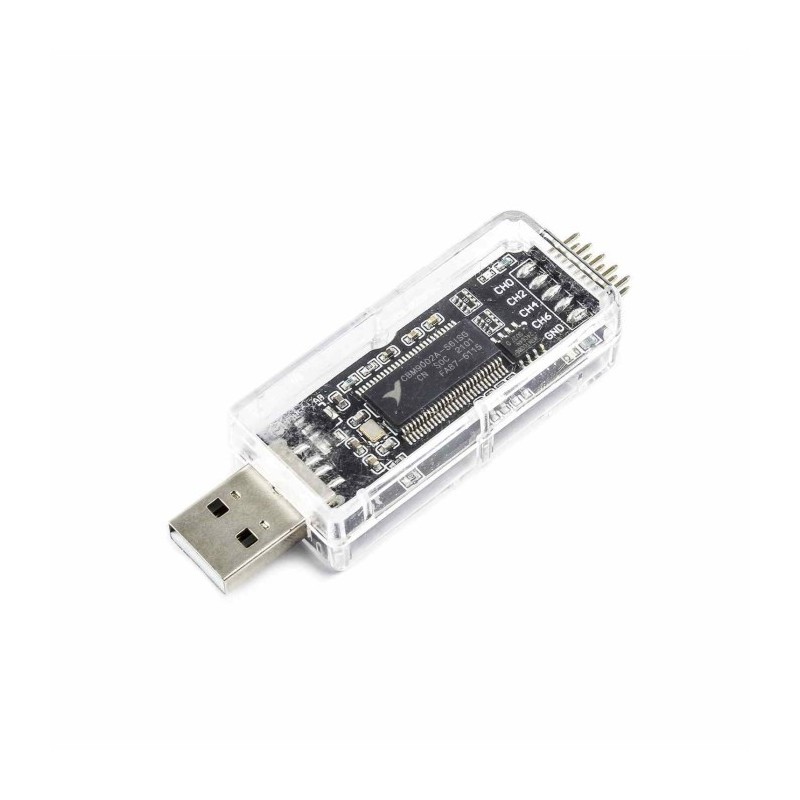

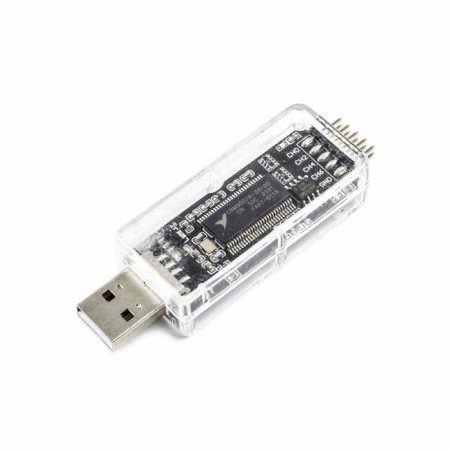

    NanoDLA 24MHz 8-Channel USB Logic Analyzer

    RBD-3806

    The NanoDLA 24MHz 8-Channel USB Logic Analyzer from MuseLab is a compact, open-source debugging tool designed to meet the needs of electronic engineers and developers. With support for up to 24MHz sampling frequency, 8 simultaneous channels, and compatibility across major operating systems, it provides a reliable solution for protocol analysis, timing verification, and performance debugging.

    DLA V2.0

    BDT 890
    BDT 890 BDT 890 BDT 890 BDT 890
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 890 Tax excluded
    BDT 890 Tax included
    BDT 0 Tax
    BDT 890 Tax excluded
    BDT 0 Tax
    BDT 890 Tax included
    Quantity
    9 Items

    1 person has purchased this item
    9 items in stock
    Description

    The NanoDLA 24MHz 8-Channel USB Logic Analyzer from MuseLab is a compact, open-source debugging tool designed to meet the needs of electronic engineers and developers. With support for up to 24MHz sampling frequency, 8 simultaneous channels, and compatibility across major operating systems, it provides a reliable solution for protocol analysis, timing verification, and performance debugging.

    Unlike many logic analyzers on the market that rely on cracked or proprietary software, NanoDLA is fully open-source, working seamlessly with the PulseView (sigrok) software suite. It supports 100+ protocol decoders, making it a versatile tool for embedded system development, problem isolation, and multi-component analysis.

    Specifications

    • Sampling Channels: 8 channels

    • Maximum Sampling Frequency: 24MHz

    • Logic Level Range:

      • Low: -0.5V to 0.8V

      • High: 2V to 5.25V

    • Input Voltage Range: -0.5V to 5.25V

    • Supported Operating Systems: Windows, Linux, Mac, Android

    • Dimensions: 71.5 x 23.6 x 14.2 mm

    • Software Environment: PulseView (sigrok)

    Features

    • Fully open-source hardware and software – hardware schematics, firmware, and host software available for customization

    • Supports 100+ communication protocol decoders via PulseView (I²C, SPI, UART, CAN, 1-Wire, and more)

    • 8 channels for simultaneous signal capture and analysis

    • Cross-platform compatibility: works on Windows, Linux, macOS, and Android

    • Compact and portable design for field and lab use

    • Ideal for embedded system debugging, signal timing analysis, performance optimization, and protocol verification

    Applications

    • Protocol debugging (I²C, SPI, UART, CAN, etc.)

    • Timing and signal integrity analysis

    • Embedded system development and troubleshooting

    • Complex multi-component system debugging

    • Education and R&D environments

    User Guide & Resources:
    https://github.com/wuxx/nanoDLA/blob/master/README.md

    Product Details
    RBD-3806
    9 Items

    Specific References

    EAN13
    3806
