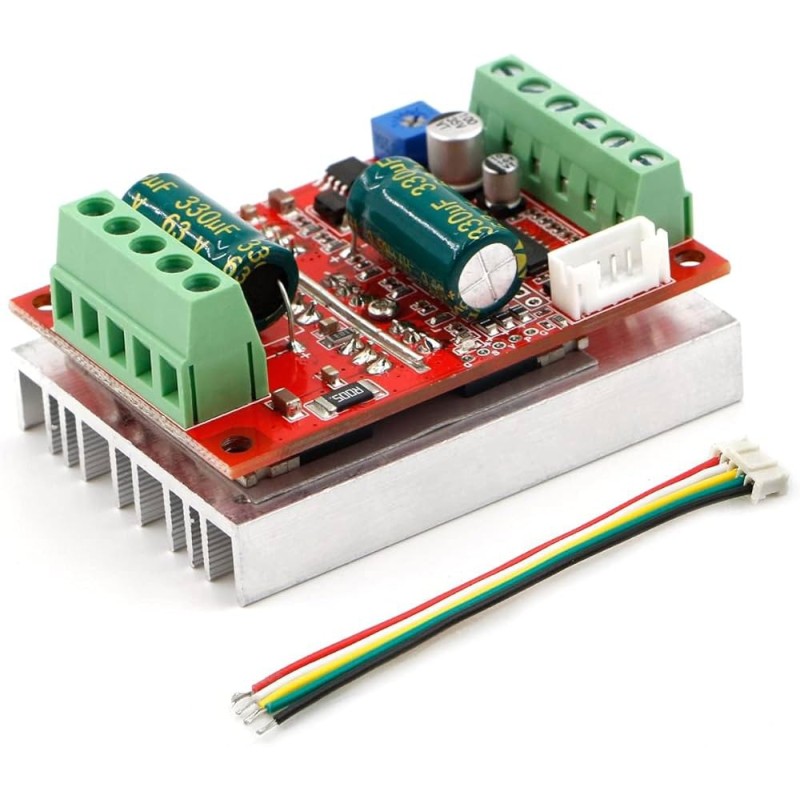

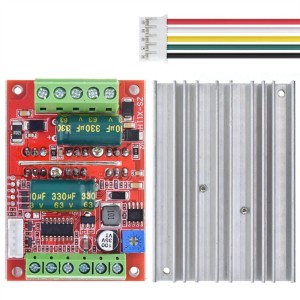

BLDC Three-Phase Brushless Hall Motor Controller 9–60V 400W DC Motor Driver Board

Product Description:
The BLDC Three-Phase Brushless Hall Motor Controller is a powerful and flexible motor driver designed for 12V, 24V, and 48V brushless DC motors. Supporting an input range of 9V to 60V, it delivers smooth, stable, and efficient motor control with adjustable speed, direction, and braking functions.

With Hall sensor feedback, this controller ensures precise torque and rotation control, ideal for applications requiring reliable bidirectional operation. It includes built-in protection against overcurrent and supports both manual and external speed control via analog or PWM signals.

Compact, efficient, and easy to integrate, this motor controller is an excellent choice for DIY projects, robotics, electric vehicles, and automation systems.

Key Features:

• Wide working voltage range: 9V–60V DC

• Rated current: 16A, peak up to 20A

• Power output: 200–300W rated, up to 400W with good heat dissipation

• Overcurrent protection for safe operation

• Compatible with Hall-sensor brushless DC motors

• Supports forward/reverse, stop, and brake control

• Built-in potentiometer for manual speed adjustment

• Supports external 0–5V analog or PWM speed control

• Integrated 5V output (max 50mA) for external devices

• Compact metal and plastic design

Interface Description:

1. MA / MB / MC – Motor phase outputs

2. VCC / GND – Main DC power input

3. 5V / GND – 5V auxiliary output (max 50mA)

4. SC – Speed pulse output (optional monitoring)

5. DIR – Direction control (low-level = reverse)

6. STOP – Stop control (low-level = motor stop)

7. BRAKE – Brake control (high-level = braking active)

8. SPEED CTRL – Speed input (internal potentiometer or 0–5V/PWM external signal)

9. HA / HB / +5V / GND – Hall sensor signal input

Applications:

• RC and DIY Electric Vehicles

• Robotics and Motion Control Systems

• Industrial Automation Equipment

• CNC Tools and Mechanisms

• Marine and Underwater Propulsion Projects

Package Includes:

• 1 × BLDC Three-Phase Brushless Hall Motor Controller (9–60V, 400W)

Why Choose This Controller?
This controller combines high performance, wide voltage support, and precise control in a compact, affordable design. With Hall feedback and multiple control inputs, it delivers dependable operation and smooth motor response for a variety of DC brushless motor applications.

Achieve efficient, stable, and bidirectional control — the perfect motor driver board for your next robotics or automation project!
