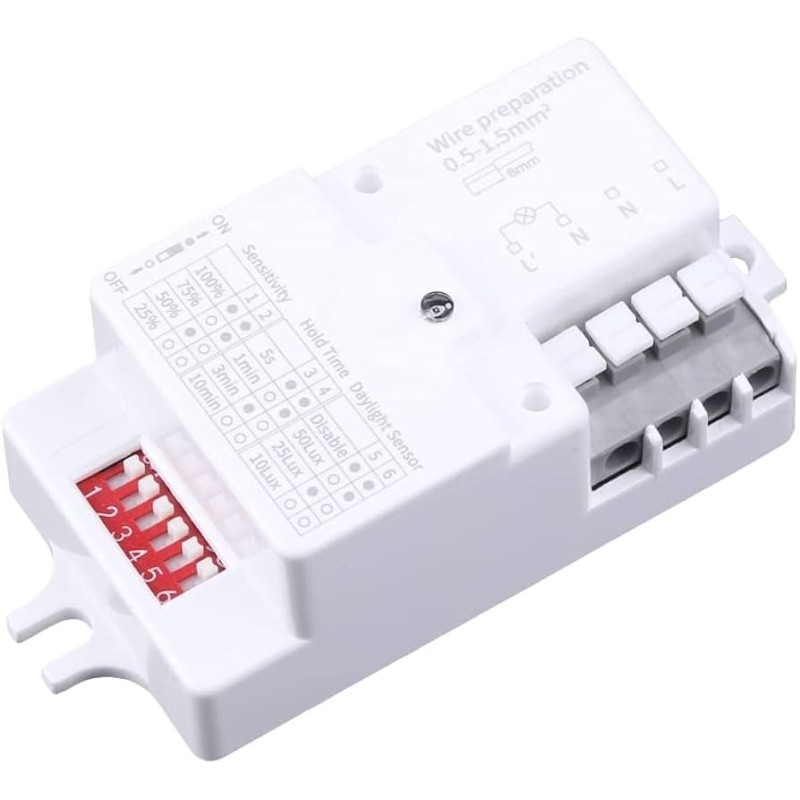

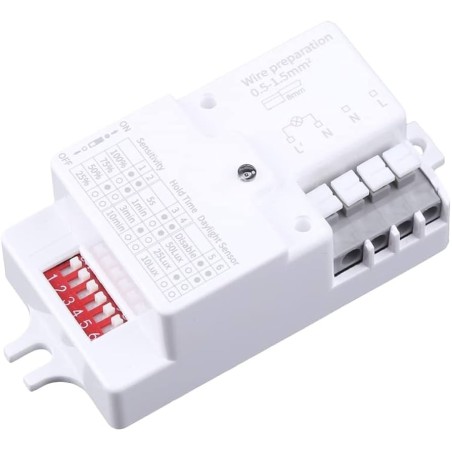

The Microwave Radar Motion Detector Switch is a high-precision AC 220V–240V/50Hz sensor designed for smart LED lighting control and energy-efficient automation. Using advanced 5.8GHz microwave radar technology, it detects motion through non-metallic materials such as glass, wood, and thin walls, ensuring dependable performance where traditional PIR sensors may fail. With adjustable sensing distance, time delay, and ambient light threshold via DIP switches, users can customize operation according to installation needs. Its compact design allows easy integration into lighting fixtures, while low standby power consumption helps reduce electricity costs. This sensor is ideal for residential, commercial, and industrial lighting automation projects. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
5.8GHz Microwave Radar Technology – Ensures accurate and stable motion detection even through glass or thin partitions.
360° Omnidirectional Coverage – Provides wide detection area for corridors, staircases, and open halls.
Fully Adjustable Settings – Easily configure sensing range (1–8m), delay time (6s–30min), and photo sensitivity (≥2 Lux) using DIP switches.
LED & Fluorescent Compatible – Supports up to 800W resistive load and 400W capacitive load.
Energy Saving Operation – Low standby power (~0.9W) minimizes continuous energy use.
Wide Temperature Range – Operates reliably from -20°C to +65°C.
Compact & Easy Installation – Small form factor for seamless integration inside lighting housings.
Moisture Protection Option – Can be installed within IP65+ enclosures for damp environments.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Home Security Lighting – Automatically activates entrance and perimeter lights.
Office Automation – Controls lighting efficiently in meeting rooms and workspaces.
Corridor & Staircase Lighting – Eliminates manual switching and improves safety.
Warehouse & Industrial Areas – Ensures lighting only operates when movement is detected.
Commercial Spaces – Ideal for malls, parking areas, and shared facilities.
Energy-Saving Projects – Integrates into smart building automation systems.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Working Voltage | 220V–240V AC / 50Hz |
| Microwave Frequency | 5.8GHz |
| Load Capacity | 800W (Incandescent) / 400W (Fluorescent/LED) |
| Standby Power Consumption | ~0.9W |
| Sensing Distance | 1m – 8m (Adjustable) |
| Time Delay | 6 sec – 30 min (Adjustable) |
| Photo Sensing Range | ≥2 Lux (Adjustable) |
| Working Temperature | -20°C to +65°C |
| Microwave Emission | <10mW |
| Coverage | 360° |
| Dimensions | 8 × 4 × 3.2 cm |
| Color | White |
| Shipment Weight | 0.041 kg |
| Shipment Dimensions | 8 × 4 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x AC 220V-240V/50Hz Microwave Radar Sensor Body Motion Detector Switch for LED Light
