Product Description:

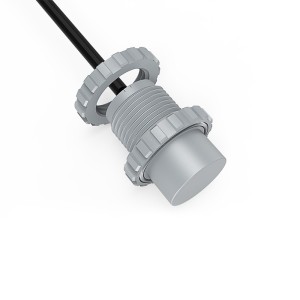

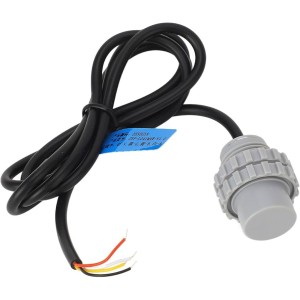

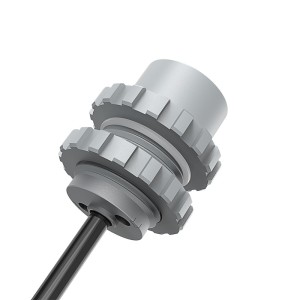

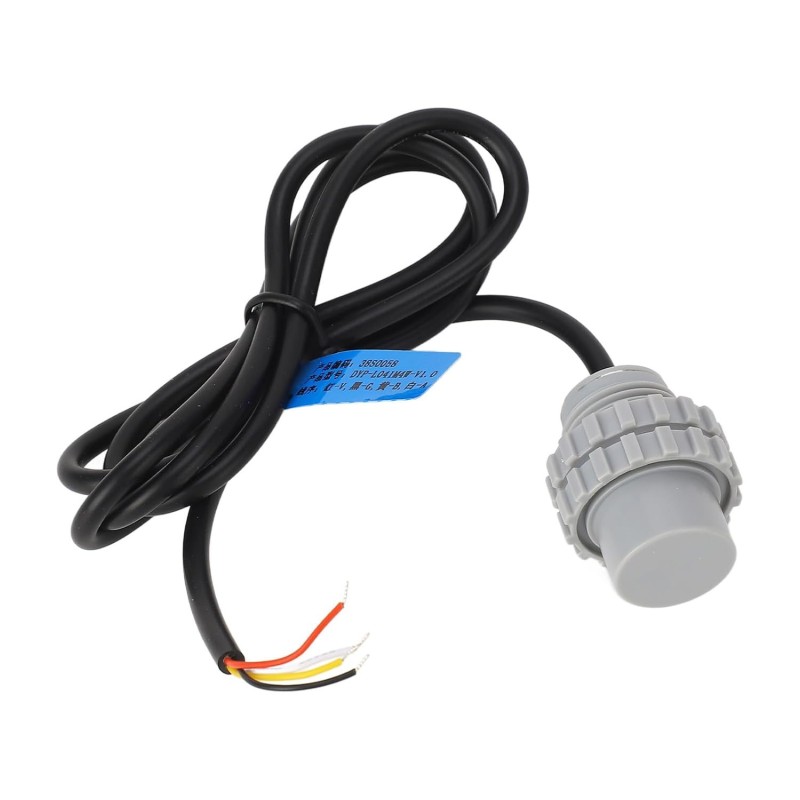

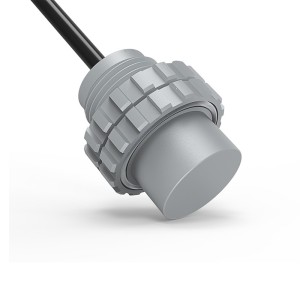

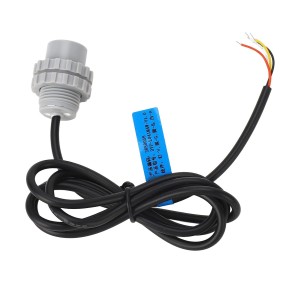

The DYP-L08 Ultrasonic Underwater Ranging Sensor is a compact and highly accurate sensor module engineered specifically for underwater applications such as obstacle avoidance, distance measurement, and automatic control. Featuring IP68 waterproofing and the ability to operate reliably at depths of up to 10 meters, this sensor is ideal for submersible robots, underwater drones, and aquatic automation systems.
With a ranging distance of 5cm to 200cm, centimeter-level accuracy, and UART-controlled output, the L08 ensures precise detection and easy integration. Its small blind zone (just 5cm), low power consumption, and robust waterproof design make it a top choice for marine and freshwater use cases.
Key Features:
Measuring Range: 5cm – 200cm
Blind Zone: Minimum 5cm
Output Type: UART-controlled output
Operating Voltage: 3.3V – 5.0V
Waterproof Rating: IP68 (up to 10 meters underwater)
High Accuracy: ±(0.5 + S×0.5%) cm within 2 meters (S = distance)
Low Current Consumption: ≤20mA average
Compact and Lightweight Design
Customizable Module Address, Baud Rate, and Angle
Operating Temperature: -15°C to 55°C
Field of View (FOV): 15°
Applications:
Underwater robotics and autonomous vehicles
Obstacle avoidance in swimming pool bots
Depth and distance measurement in aquaculture systems
Water tank level sensing
Marine biology instrumentation
Submerged equipment automation
Why Choose the DYP-L08 Sensor?
Combining waterproof reliability, compact design, and high-precision ranging, the L08 is the go-to ultrasonic sensor for robust underwater projects. Whether you're designing an aquatic robot or an automated depth monitoring solution, the L08 ensures dependable performance under pressure.
Optimize your underwater systems today with the DYP-L08 – precision sensing, even below the surface.
