Reference: RBD-1249
Banner

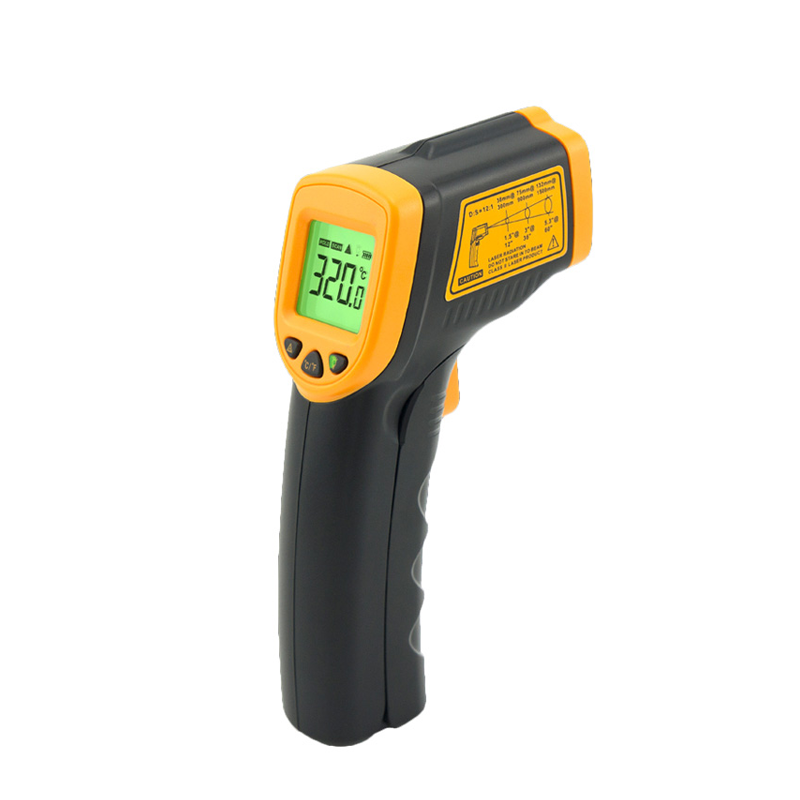

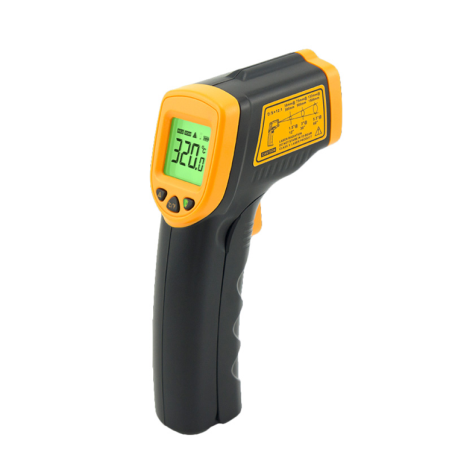

The SmartSensor AR320 is an ideal entry-level solution for getting accurate temperature readings without touching or contacting the equipment or space. Use the built-in laser pointer for a more pin-point accuracy or if surface or space is less than ideal to touch. It's rubberized handle gives it a better grip and slightly better protection against low impact falls. (Requires 2 AAA Batteries - NOT INCLUDED). RoboticsBD
The most basic design consists of a lens to focus the infrared (IR) energy on to a detector, which converts the energy to an electrical signal that can be displayed in units of temperature after being compensated for ambient temperature variation. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Temperature Range | -32℃~380℃(-26℉~716℉) |
| Accuracy | ±2%or2℃ |
| Distance Spot Ratio | 12:1 |
| Emissivity | 0.95 pre-set |
| Resolution | 0.1℃or 0.1℉ |
| Wavelength & Response Time | (8-14)um&500ms |
| Repeatability | ±1%or±0.1℃ |
| ℃/℉Selection | Yes |
| Data Hold Function | Yes |
| Laser Target Pointer Selection | Yes |
| Backlight Display Selection | Yes |
| Auto Power Off | Yes |
| Power | 2*1.5V AAA batteries |
| Product Net Weight | 130g |
| Product Size | 146*80*38mm |
| Shipment Weight | 0.150 kg |
| Shipment Dimensions | 20 × 14 × 4 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Smart Sensor AR320 Infrared Thermometer.
