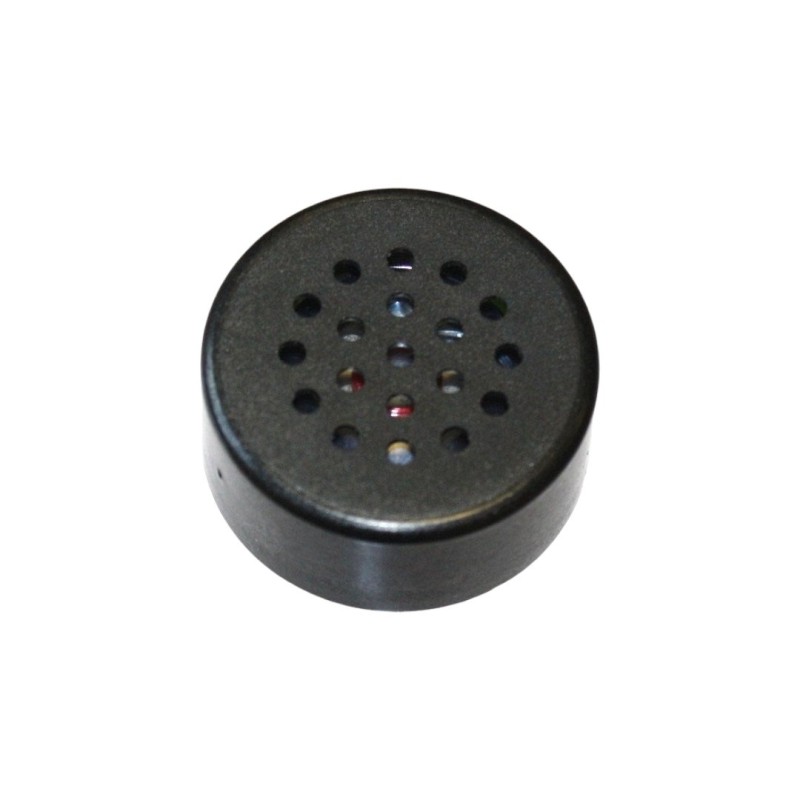

PCB Mount Mini Speaker Breadboard-Friendly - 8 Ohm 0.

PCB Mount Mini Speaker - 8 Ohm 0.2W

Reference RBD-2692

Breadboard-Friendly PCB Mount Mini Speaker - 8 Ohm 0.2W
1.1" (~30mm) diameter speaker with 8 Ohm impedance
Perfect for breadboard-based audio projects
Durable plastic casing, lightweight design
Power handling: Nominal 0.1 Watts, Maximum 0.2 Watts

Description
Product Details

Description

This breadboard-friendly mini speaker is an ideal audio solution for your breadboard-based projects. With a diameter of 30mm and a 0.2W power handling capacity, it offers a significant upgrade over piezo buzzers in terms of sound quality. The speaker features an 8Ω impedance, making it compatible with a wide range of low-power audio driver circuits. Through-hole pins spaced at 15mm perfectly match the standard breadboard layout, simplifying integration. This mini speaker allows you to incorporate basic audio feedback or sound effects into your projects without sacrificing valuable space. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Breadboard-Friendly Design: Fits seamlessly onto breadboards and perfboards.
8Ω Impedance: Compatible with most low-power audio circuits.
0.2W Power Handling: Provides clear and audible sound output.
Superior Sound Quality: Offers a significant improvement over piezo buzzers.
Through-Hole Pins: Easy connection with standard breadboard spacing.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Educational Electronics Projects: Experiment with sound generation and speaker integration.
Simple Audio Feedback: Generate audible alerts or notifications for user interaction.
DIY Music Projects: Integrate into custom music players with moderate volume requirements.
Game Development Projects: Add basic sound effects to games or interactive applications.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Diameter	30mm (1.1 inch)
Power (Nominal)	0.1W
Power (Maximum)	0.2W
Impedance	8Ω ± 20%
Resonant Frequency	1200Hz ± 150Hz
Sound Pressure Level	80 ± 3 dB (at 0.1W, 0.8, 1.0, 1.2, 1.5 kHz)
Frequency Range	F0-10000 Hz
Housing Material	Noryl
Cone Material	Mylar
Operating Temperature	-20°C to +60°C
Storage Temperature	-30°C to +70°C
Weight	8.5g ± 5g
Shipment Weight	0.012 kg
Shipment Dimensions	5 x 5 x 4 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x Breadboard-Friendly PCB Mount Mini Speaker - 8 Ohm 0.2W
