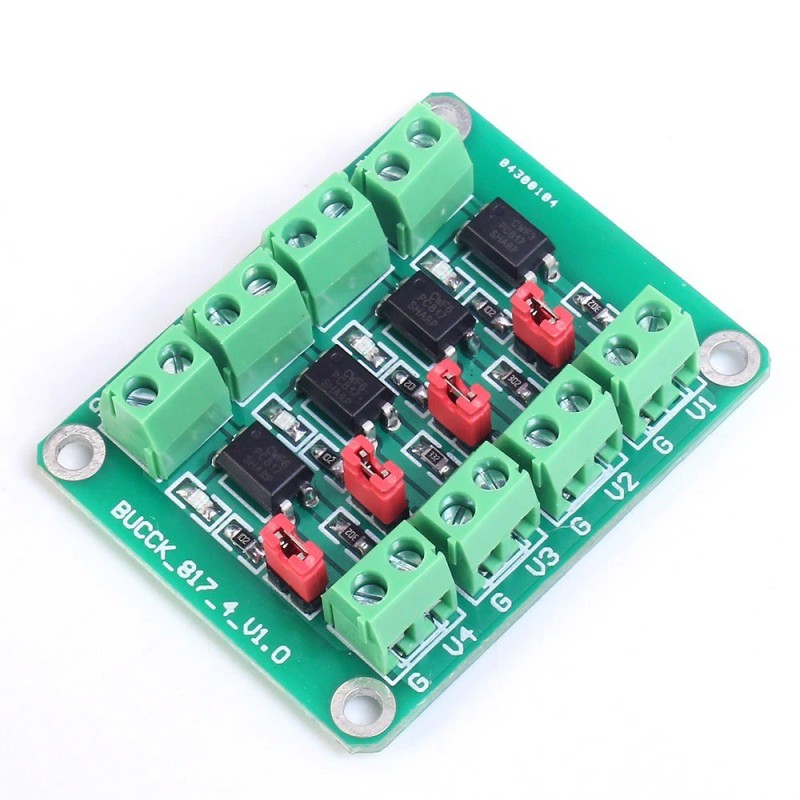

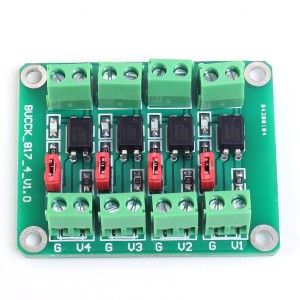

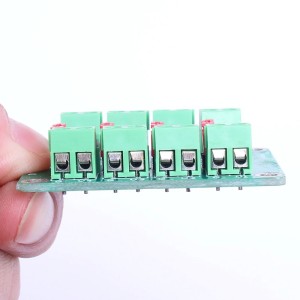

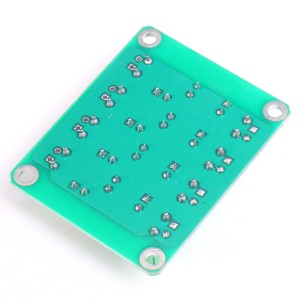

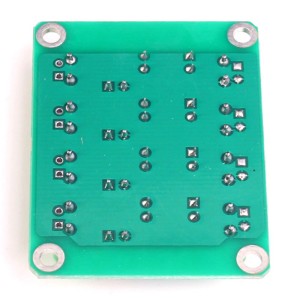

This is a PC817 4 Channel Optocoupler Isolation Board. Onboard with 4-Channel 817 are independent, so they can achieve different voltage control at the same time. Using 4-way 817 optocoupler, to achieve the control signal and the control signal isolation, you can directly use the microcontroller or other devices IO port to achieve voltage isolation control, you can achieve a small voltage control, the control side can be an external transistor MOS tube or different voltage levels Of the device interface.
Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Note:
- The input port is shared with GND
- The output ports are independent of each other
- It is optocoupler output. V and G will be connected after input valid signa in input port.
Applications:
- I/O Isolation for MCUs (Micro Controller Units)
- Noise Suppression in Switching Circuits
- Signal Transmission Between Circuits of Different Potentials and Impedances
Features:
- Driving Port Signal Voltage: 3.6-24V
- Output Port Voltage Port: 3.6-30V
- Output Can Be Switched From Pull-Up or Pull-Down With Jumpers.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| No. of Channels | 4 |
| Input Voltage (V) | 3.6-24DC |
| Output Voltage (VDC) | 3.6-30 |
| Length (mm) | 47.3 |
| Width (mm) | 37.7 |
| Height (mm) | 10 |
| Weight (gm) | 15 |
| Shipment Weight | 0.018 kg |
| Shipment Dimensions | 5 × 4 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x PC817 4 CH Optocoupler Isolation Module.
