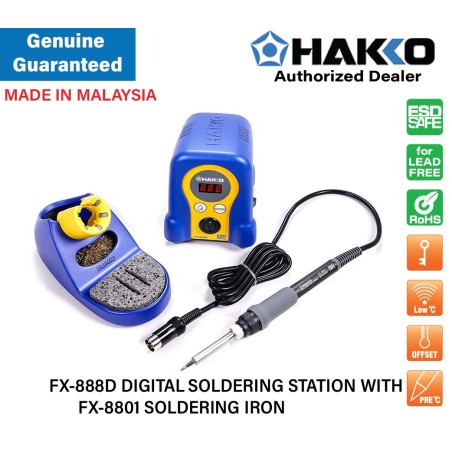

Hakko Original FX888D-06BY Digital Soldering Station

Reliable digital technology by HAKKO - Introducing the FX-888D. The compact Hakko FX-888D soldering station is the digital successor to the analogue FX-888 soldering station. Hakko is known for the excellent build quality of their products and that is also the case with this soldering station. Digitalization also makes it possible to add functionality in the form of a digital calibration, five adjustable presets and password protection (to prevent unwanted temperature violations in production or educational environments).RoboticsBD. Featured By RoboticsBD.

Soldering points suitable for this soldering station are the Hakko T18 soldering tips. Featured By RoboticsBD.

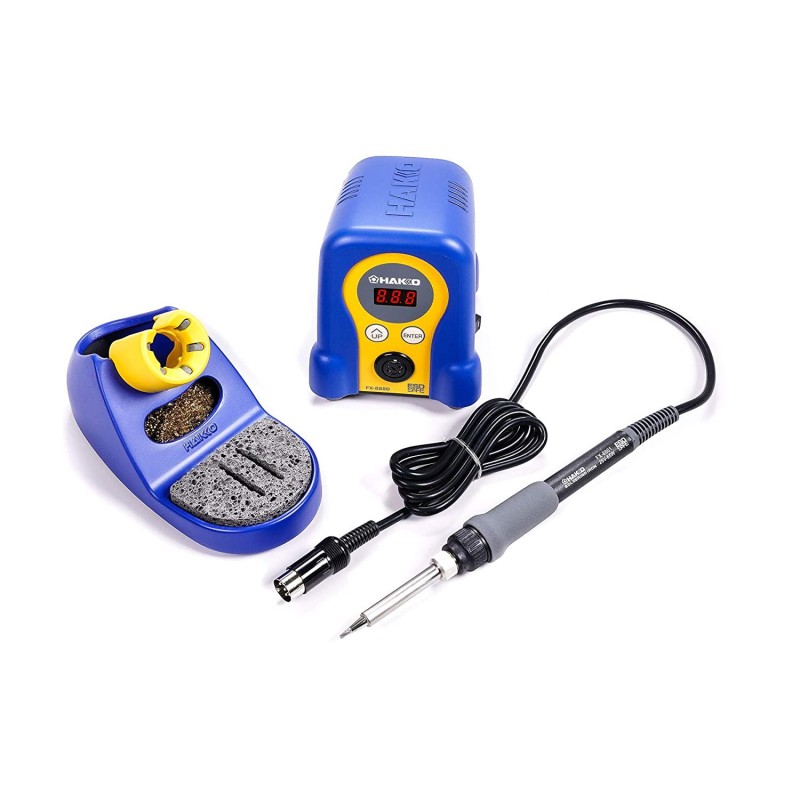

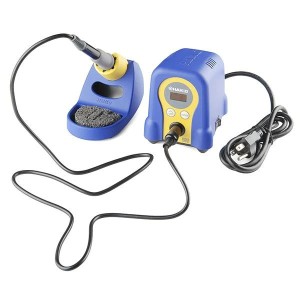

FX-888D Soldering Station - Blue/Yellow

Product Images are shown for illustrative purposes only and may differ from the actual product.

Excellent thermal recovery

Heater output has been increased by 30% compared to that of the conventional models HAKKO 936/937. Also FX-888D delivers excellent thermal recovery by using T18 series tips for their terrific heat conductivity. This allows soldering at a lower set temperature and reducing the thermal impact on components as well as tip oxidation that can shorten tip life.RoboticsBD. Featured By RoboticsBD.

Thermal recovery graph

Rise time to 350°C is 20 seconds faster and tip temperature drop is reduced during continuous work.

HAKKO FX-888D performance comparison graph with conventional stations

Able to shorten the time required for the same work and improve work efficiency significantly.

Designed to be User-Friendly

• Small footprint

1. Compact station body requires a space of only 100 (W) x 120 (D) mm.
2. What’s more, points that come into contact with the floor are positioned as close to the outer edge of the body as possible to improve stability and make the station difficult to fall over.

• Simple and easy operation

1. With only two operation buttons of UP and ENTER in the center, operation is simple and easy.
2. If you’re not familiar with operation of machines, you can operate it without difficulty

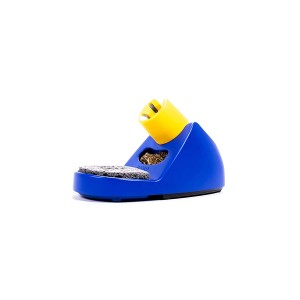

• Iron holder with full of functions

1. An iron holder of the same color of a soldering station comes as a set.
2. Highly functional iron holder not only improves ease of use, but also brings a sense of visual consistency to the work environment.

Strict temperature management

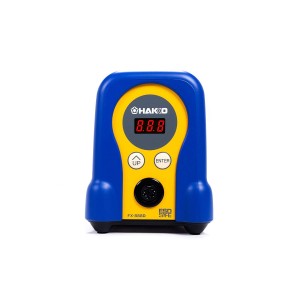

Digital display

The FX-888D's digital display makes it easy to check the set temperature at a glance.RoboticsBD. Featured By RoboticsBD.

Password function

Settings can be locked using a password to prevent them from being changed unexpectedly. Of course, it is possible to restrict all setting changes or prevent users from switching to particular modes. It allows you to choose a style of usage best suited for your worksite.RoboticsBD. Featured By RoboticsBD.

Preset mode

This feature is very convenient when you want to change the set temperature to suit a particular workpiece, component, or tip shape. Simply select the desired temperature from a selection of preset temperatures registered in advance. (Up to 5 preset temperatures can be registered.) Preset mode can save your trouble and improve workability.RoboticsBD. Featured By RoboticsBD.

Adjustment mode

Temperature adjustment* is an essential part of any strict quality control system. With adjustment mode, what used to be a troublesome procedure is now as simple as entering the measured tip temperature to FX-888D.

• Adjust the tip temperature to match the set temperature in case that there is a difference between those temperatures due to tip shape, heater replacement, or other factors.

Features:

1. Adjustable temperature control
2. Temperature range 120° - 899°F (50° - 480°C)
3. Digital display shows °F or °C
4. Maintains idle temperature within 1.8°F (1°C) when set to 400 - 899°F (200 - 480°C)
5. Ceramic heating element and sensor ensures rapid heat-up temperature and fast thermal recovery
6. Password protected temperature setting functionality
7. Preset mode allows you to store up to five (5) preset temperatures
8. Slender, lightweight ergonomic iron handles
9. Compact design takes up less bench space
10. Wide selection of tips available for soldering SMD and through-hole applications
11. ESD Safe

Station

Please allow 5% measuring deviation due to manual measurement.

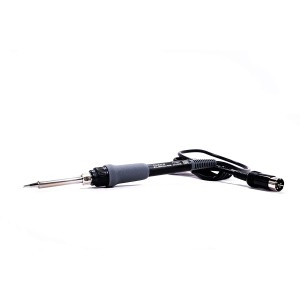

Soldering Iron

Please allow 5% measuring deviation due to manual measurement.

FX-888D Specs

Please allow 5% measuring deviation due to manual measurement.

Documentation:

1. Official Product Page
2. Instruction Manual(English)
3. User Manual (English)

Package Includes:

1 x Hakko Original FX888D-06BY Digital Soldering Station
