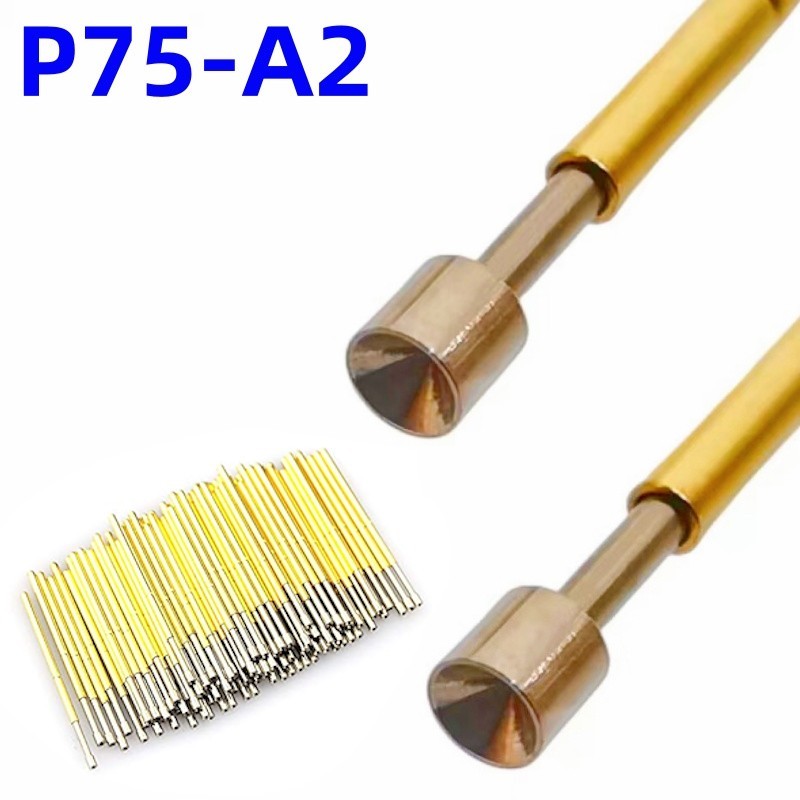

The Spring Test Probe Pogo Pin P75-A2 Solder Cupped Head is a reliable and reusable contact pin designed for electronics testing and programming applications. With its spring-loaded mechanism, it provides a firm yet non-permanent connection, making it especially useful for testing jigs, JTAG programming, and circuits where headers cannot be soldered. Its slim 1.0mm body allows easy insertion into protoboards or perfboards, while the 1.3mm solder cupped head ensures stable electrical contact. The gold plating offers excellent conductivity and long-lasting performance, making it a must-have tool for engineers, makers, and hobbyists. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Spring-loaded design for stable and reliable electrical contact.
Gold-plated coating ensures superior conductivity and resistance to oxidation.
Slim 1.0mm body diameter fits most protoboards and test jigs.
Cupped solder head (1.3mm) for easy and secure contact with pads and test points.
Compact and reusable, reducing the need for permanent headers.
Ideal for JTAG programming, temporary connections, and debugging.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Used in PCB testing jigs for quality checks and troubleshooting.
Perfect for temporary connections in prototyping and debugging.
Suitable for JTAG/SWD programming without soldering headers.
Handy for DIY electronics projects requiring quick test points.
Commonly used in manufacturing test fixtures for batch testing.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| Product Name | Spring Test Probe Pogo Pin P75-A2 |
| Type | Spring-loaded test probe (Pogo Pin) |
| Head Type | Solder cupped head |
| Body Diameter | 1.0mm (0.04") |
| Head Diameter | 1.3mm (0.05") |
| Uncompressed Length | 16.5mm (0.65") |
| Compressed Length | 13.8mm (0.54") |
| Material | Gold-plated metal |
| Pitch Compatibility | 2.54mm (0.1") standard |
| Package Content | 1 piece |
| Shipment Weight | 0.0177 kg |
| Shipment Dimensions | 12 × 8 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Spring Test Probe Pogo Pin P75-A2 Solder Cupped Head
