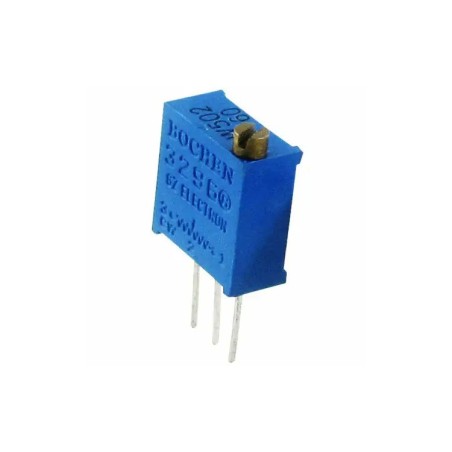

W101 Through Hole Trimmer Potentiometer Variable Trim Pot Resistor 100 Ohms

Reference RBD-2796

Resistance: 100 Ohm
Tolerance: 10 %
Temperature coefficient: ±100 ppm/ºC
Operating temperature range: -55ºC to +125ºC
Mounting type: Through-hole

Description
Product Details

Description

It is a 100 Ohm Trimpot Trimmer Potentiometer. This potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver. Featured By RoboticsBD.

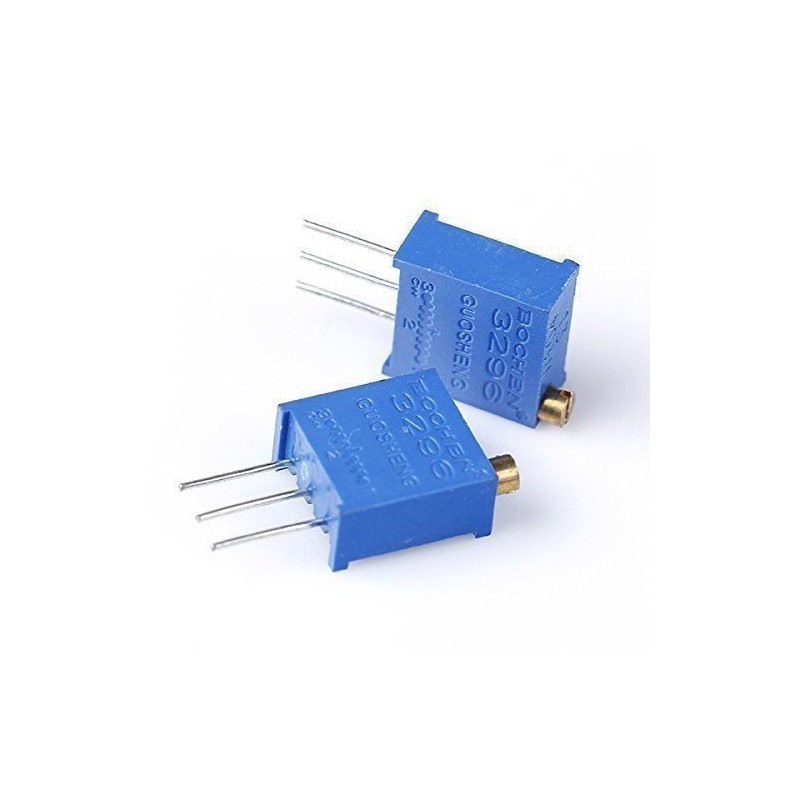

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Resistance (Ω)	100 Ohm
Tolerance	±10%
Temperature Co-efficient	±100 ppm/°C
Operating Temperature Range (°C)	-55 to 125
Mounting Type	Through Hole
Length (mm)	9.5
Width (mm)	4.9
Height (mm)	17.8
Weight (gm)	1.2
Shipment Weight	0.01 kg
Shipment Dimensions	4 × 3 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x W101 Through Hole Trimmer Potentiometer Variable Trim Pot Resistor 100 Ohms

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details

Reference RBD-2796

In stock 138 Items

Specific References

EAN13: 2796
