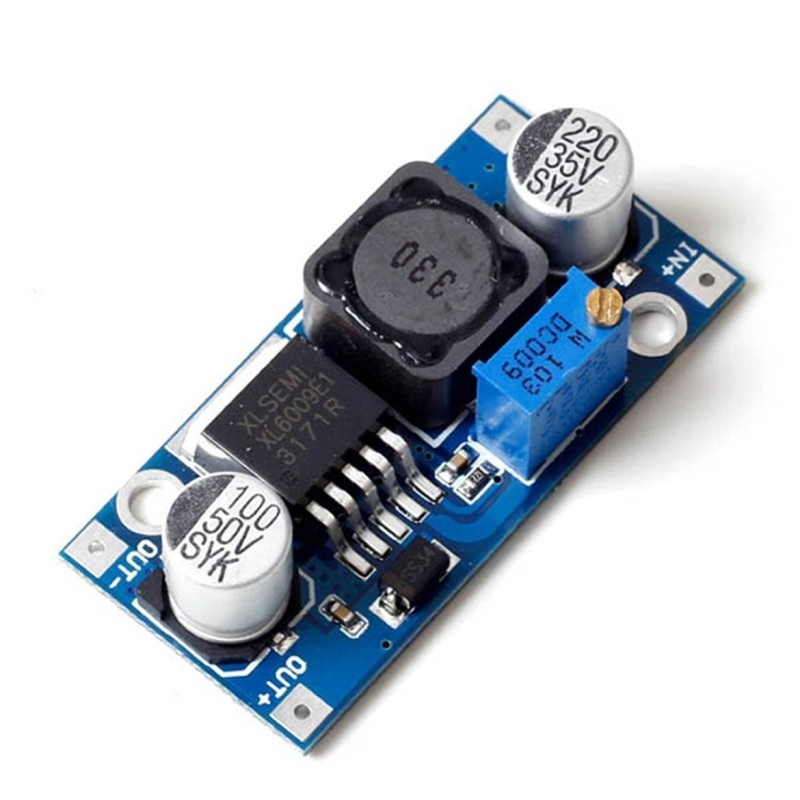

DC-DC Boost Module XL6009
- The performance is much higher than LM2577.
- Non-isolated Boost converter.
- It has a non-synchronous rectifier.
- Low ultra wide input voltage 3 v ~ 32 v, the best is 5 ~ 32 v working voltage range;
- Low ultra wide output voltage 5 v ~ 35 v;
Description
This CN6009 XL6009 DC – DC Step-up converter module is a non-isolated step-up (boost) voltage converter featuring adjustable output voltage and high efficiency.
The module uses the second generation of high-frequency switching technology XL6009E1 core chip performance than the first generation technology LM2577. XL6009 boost module at a lower cost, superior performance. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
It equips 4A high-efficiency MOSFET switches, so as to provide a conversion efficiency of up to 94%.
High switching frequency 400KHz, you can use a small -capacity filter capacitors that can achieve very good results, the ripple is smaller and smaller
Pins
- IN+ input positive
- IN- input negative!
- OUT+ output positive
- OUT- output negative
Features :
- The performance is much higher than LM2577.
- Non-isolated Boost converter.
- It has a non-synchronous rectifier.
- Small and Handy voltage regulator module.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Input Voltage (V) | 3 to 32 |
| Input Current(A) | 4 |
| Output Voltage(V) | 5 ~ 35 |
| Output Ripple(mV) | 50 |
| Efficiency | 0.94 |
| Switching Frequency(KHz) | 400 |
| Load Regulation | ±0.5% |
| Voltage Regulation | ±0.5% |
| Length (mm) | 43 |
| Width (mm) | 20 |
| Height (mm) | 12 |
| Weight (gm) | 12 |
| Shipment Weight | 0.016 kg |
| Shipment Dimensions | 5 × 3 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes :
1 x DC-DC Boost Module.
