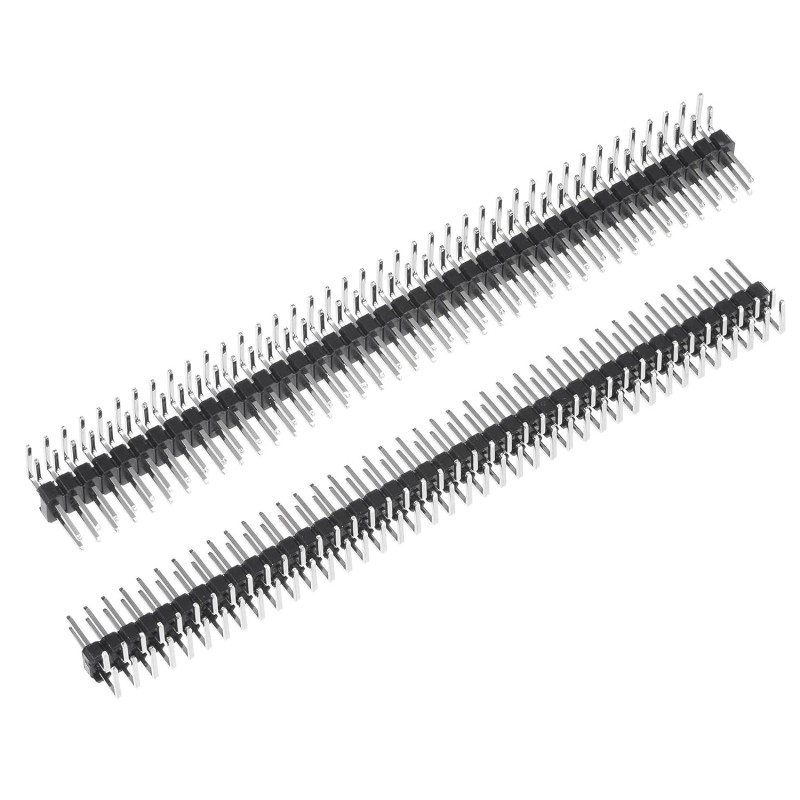

2.54mm 2x40 Pin Male Double Row Header Strip - L-Shaped

Reference RBD-2952

2×40 right-angle male Berg strip connectors.
Breakable to custom lengths for various applications.
Ideal for custom PCBs and prototyping.
Gold contact material for reliable connections.
Through-hole mounting with 2.54mm pitch.

Description
Product Details

Description

The 2.54mm 2x40 Pin Male Double Row Header Strip is a versatile and essential component for custom PCBs and prototyping projects. These right-angle male Berg strip connectors are designed for board-to-board or wire-to-board connections, making them suitable for a wide range of applications. With a 90° angle, they fit perfectly in spaces where standard straight connectors cannot. The connectors can be manually broken to the desired length, providing flexibility in design and application. The gold contact material ensures reliable and consistent connections, while the through-hole mounting makes them easy to solder. Whether you're building custom electronics or need reliable connectors for prototyping, these pin headers offer excellent performance and adaptability. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Right-Angle Design: Bent at a 90° angle, suitable for tight spaces and specific applications.
Customizable Length: Breakable to the required length for versatile use.
High-Quality Material: Gold contact material for reliable and consistent connections.
Through-Hole Mounting: Easy to solder with through-hole mounting.
Wide Compatibility: Ideal for custom PCBs and general headers.
Robust Current Rating: Handles up to 3A current, ensuring reliable performance.
Double Row Configuration: 2x40 pin arrangement for multiple connections.
Unshrouded Design: Simple and straightforward, suitable for various uses.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Custom PCBs: Perfect for creating custom printed circuit boards.
Prototyping: Essential for prototype development and testing.
Board-to-Board Connections: Ideal for connecting multiple boards together.
Wire-to-Board Connections: Suitable for interfacing wires with PCBs.
Electronics Projects: Great for various DIY and electronics projects.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

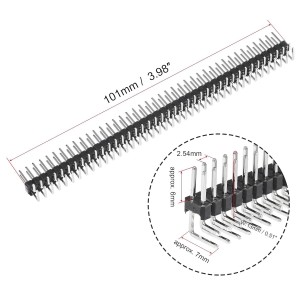

General Specifications
Connector Type	Pin Header
Pitch	2.54mm
Connector System	Board to Board, Wire to Board
Contact Material	Gold
Number of Pins	2x40
Mounting Angle	Right Angle (L Shaped)
Termination Method	Solder
Shrouded/Unshrouded	Unshrouded
Current Rating	3A
Mounting Type	Through Hole
Number of Contacts	2x40
Contact Gender	Pin (Male)
Shipment Weight	0.02 kg
Shipment Dimensions	12 × 8 × 2.5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 2.54mm 2x40 Pin Male Double Row Header Strip - L-Shaped
