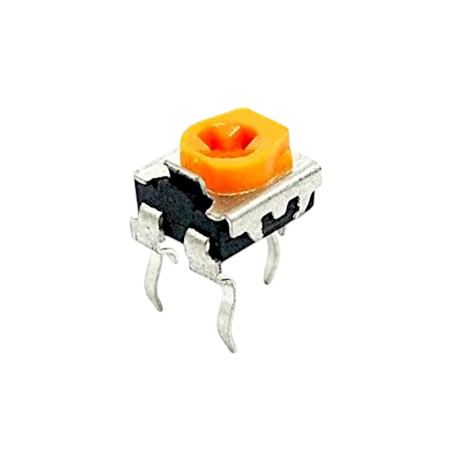

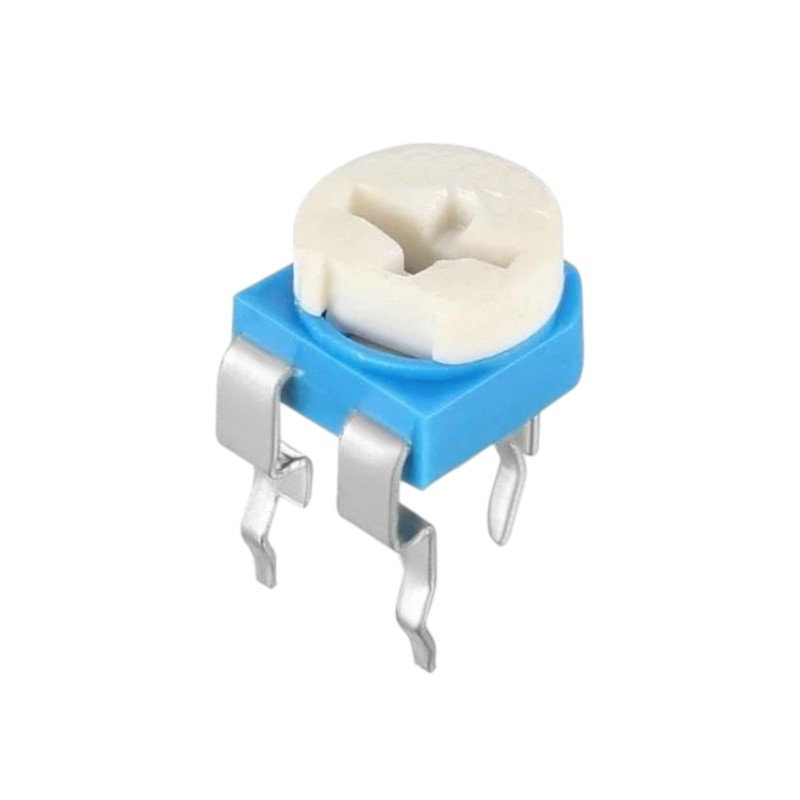

The 2200-ohm Single-Turn Trimmer Potentiometer (222) offers smooth, precise resistance adjustment for various electronic applications. Designed with excellent linearity and secure long leads, it fits well into solderless breadboards and remains stable once inserted. This potentiometer has a typical resistance range of 9.5 to 2200 ohms, with a ±5% tolerance for accurate tuning. Its compact plastic package features a screwdriver adjustment on top for easy end-to-end single-turn control. Ideal for fine-tuning circuits, this cermet-type potentiometer is a valuable component for prototyping, educational projects, and other electronic tuning applications. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Smooth Adjustment: Provides smooth, consistent resistance changes across its range.
- Breadboard Compatibility: Designed with long leads for secure placement in solderless breadboards.
- Precise Tuning: Offers an adjustable resistance range from 9.5 to 2200 ohms with ±5% tolerance.
- Single-Turn Control: Features a top-mounted screwdriver adjustment for quick, single-turn calibration.
- Compact Design: Small 7x7x5 mm plastic package, ideal for tight spaces in circuit designs.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- Circuit Tuning: Ideal for precision adjustments in electronic circuits and prototypes.
- Educational Projects: Suitable for electronics learning and experimentation.
- Sensor Calibration: Used in sensor circuits for fine resistance adjustments.
- DIY Electronics: Perfect for hobbyists building custom circuits and prototypes.
- Embedded Systems: Useful for adjusting parameters in embedded and microcontroller projects.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Resistance | 2200 ohms (±5% tolerance) |
| Turns | 1 (Single-Turn) |
| Adjustment Type | Screwdriver (top-mounted) |
| Breadboard Compatibility | Yes |
| Package | Plastic, 3 radial leads |
| Wattage | 1/2W |
| Type | Cermet |
| Dimensions (L x W x H) | 7 x 7 x 5 mm (0.28 x 0.28 x 0.2 in) |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 3 x 3 x 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x Potentiometer 2.2k ohms Single-Turn Trimmer 222
