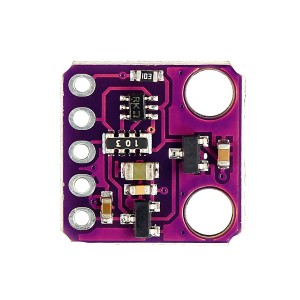

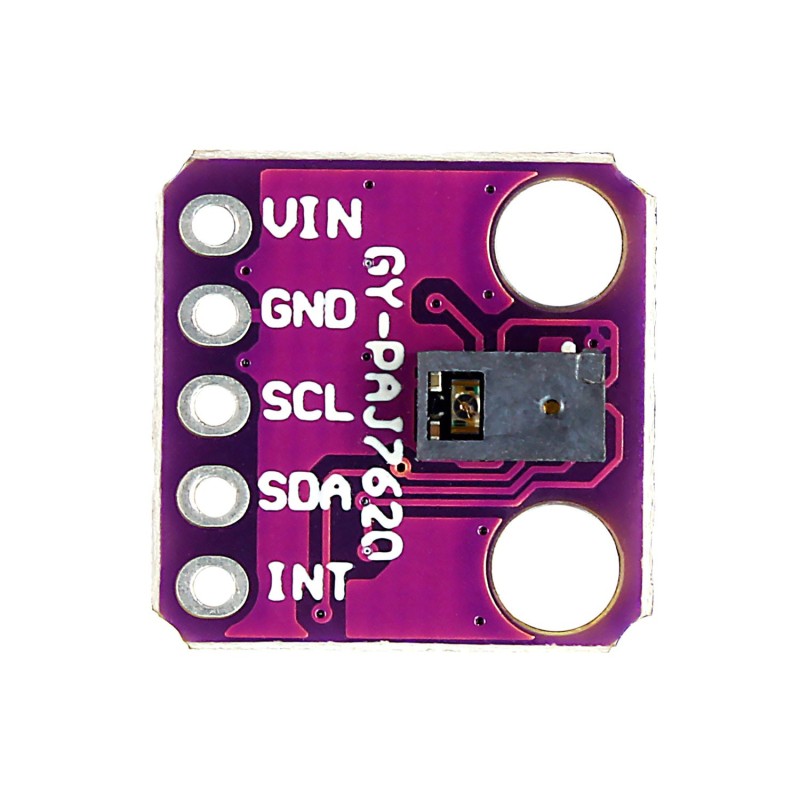

The PAJ7620U2 Gesture Recognition Sensor Module is an intelligent optical sensor designed for motion and proximity-based applications. Capable of recognizing up to 9 intuitive hand gestures—including directional swipes, circular motions, and waving—it enables touchless control interfaces for a wide variety of electronic systems. This makes it a perfect solution for IoT projects, smart home automation, and robotics. The module supports I²C communication at up to 400 kbit/s, allowing seamless integration with microcontrollers such as Arduino, ESP32, Raspberry Pi, and STM32. Its high-speed recognition (up to 1200°/s in gaming mode), combined with ambient light immunity up to 100,000 Lux, ensures reliable performance even in bright environments. With low power consumption and a compact form factor, the PAJ7620U2 offers an efficient and responsive solution for gesture-based control systems. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Detects 9 unique gestures: Up, Down, Left, Right, Push, Pull, Clockwise, Counterclockwise, and Wave.
High-speed recognition with gaming and normal modes.
Proximity sensing for object approach and departure detection.
Operates via I²C interface with up to 400 kbit/s communication speed.
Ambient light immunity up to 100,000 Lux for reliable outdoor or bright-light use.
Low power consumption ideal for portable and battery-operated devices.
Wide operating temperature range from -40°C to +85°C.
Compact, lightweight, and easy to integrate into embedded systems.
Compatible with Arduino, Raspberry Pi, and ESP32.
Perfect for gesture-based interfaces, robotics, and smart automation projects.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Touchless control systems for smart devices and displays.
Robotics gesture control for intuitive robot movement and interaction.
Automotive controls such as dashboard gesture input.
Smart home automation and IoT gesture-based switches.
Gaming interfaces using hand motion recognition.
Public kiosks and contact-free user interfaces.
Health and hygiene-sensitive systems requiring contactless input.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Model | PAJ7620U2 |
| Operating Voltage | 2.8V – 3.3V |
| I/O Voltage | 1.8V – 3.3V |
| Gesture Recognition | Up, Down, Left, Right, Push, Pull, Circle CW, Circle CCW, Wave |
| Gesture Speed (Normal Mode) | 60°/s – 600°/s |
| Gesture Speed (Gaming Mode) | 60°/s – 1200°/s |
| Proximity Detection | Supported |
| Communication Interface | I²C |
| I²C Speed | Up to 400 kbit/s |
| Ambient Light Resistance | Up to 100,000 Lux |
| Operating Temperature | -40°C to +85°C |
| Pull-up Voltage (I²C) | 1.8V – 3.3V |
| Compatibility | Arduino, Raspberry Pi, ESP32, STM32 |
| Country of Origin | China |
| Shipment Weight | 0.006 kg |
| Shipment Dimensions | 3 × 2 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x PAJ7620U2 Gesture Recognition Sensor Module
