    20KG 180° Digital Metal Gear Servo High Torque Robotics Bangladesh
    • 20KG 180° Digital Metal Gear Servo High Torque Robotics Bangladesh

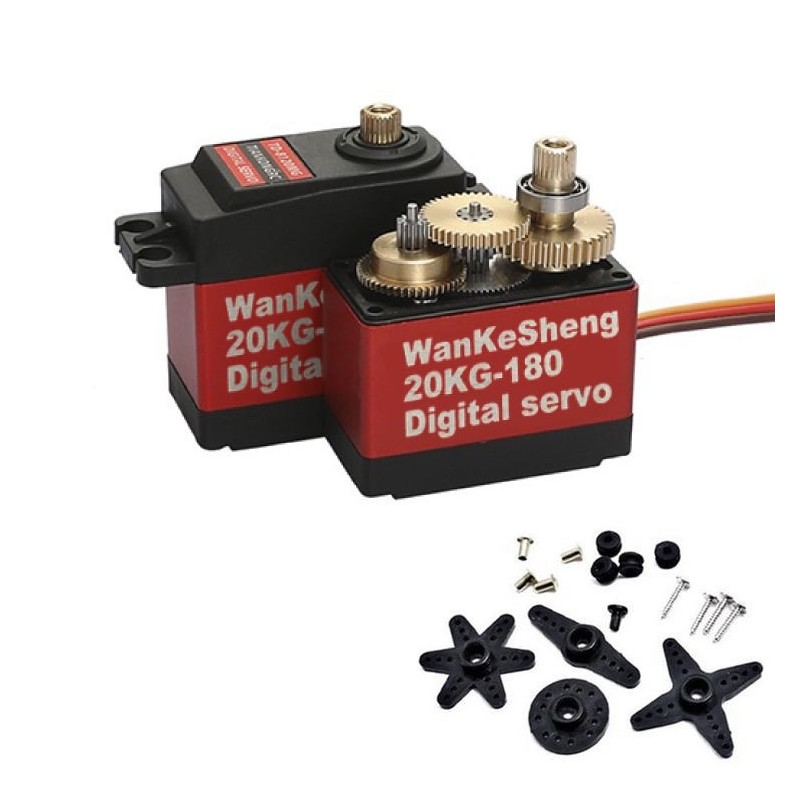

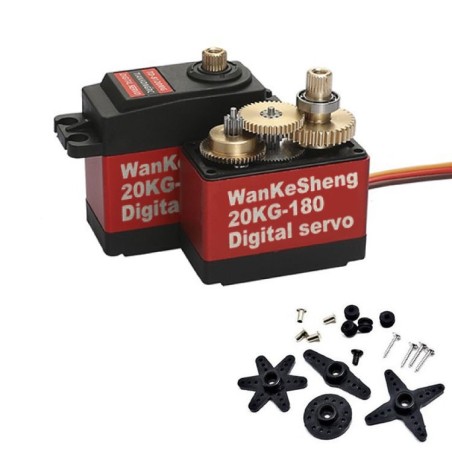

    20KG 180° Digital Metal Gear Servo High Torque

    RBD-3683

    This high-performance digital servo delivers exceptional torque and precision for demanding robotics, RC, and automation projects. With a stall torque of up to 22.8kg.cm at 7.2V, a robust all-metal gear train, and an aluminum casing, it ensures reliable operation even in challenging conditions. The 180° ±3° rotation range offers accurate motion control, while its splashproof design makes it suitable for outdoor or rugged use.

    BDT 1,299
    BDT 1,299 BDT 1,299 BDT 1,299 BDT 1,299
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 1,299 Tax excluded
    BDT 1,299 Tax included
    BDT 0 Tax
    BDT 1,299 Tax excluded
    BDT 0 Tax
    BDT 1,299 Tax included
    Quantity
    17 Items

    9 people have purchased this item
    17 items in stock
    Description

    This high-performance digital servo delivers exceptional torque and precision for demanding robotics, RC, and automation projects. With a stall torque of up to 22.8kg.cm at 7.2V, a robust all-metal gear train, and an aluminum casing, it ensures reliable operation even in challenging conditions. The 180° ±3° rotation range offers accurate motion control, while its splashproof design makes it suitable for outdoor or rugged use.

    Features:

    • High Torque: 20.5kg.cm (4.8V) / 22.8kg.cm (7.2V)

    • Precision Control: 180° ±3° rotation range

    • Durable Construction: Aluminum casing with all-metal gears

    • Splashproof: Suitable for outdoor projects

    • Fast Response: 0.14 sec/60° at 7.2V

    • Wide Voltage Range: Operates on 4.8V–7.2V

    Specifications:

    • Voltage: 4.8V | 7.2V

    • Speed: 0.18 sec/60° (4.8V) | 0.14 sec/60° (7.2V)

    • No-Load Current: 210mA (4.8V) | 260mA (7.2V)

    • Stall Current: 2100mA ±10% (4.8V) | 2700mA ±10% (7.2V)

    • Control Signal: PWM, 500–2500 μs pulse width

    • Dead Band Width: 5 μs

    • Dimensions: 40.0 × 20.5 × 40.5 mm

    • Weight: 56g ±5%

    • Gear Material: All-metal

    • Case Material: Aluminum

    Package Includes:

    • 1 × 20KG 180° Digital Metal Gear Servo

    Product Details
    RBD-3683
    17 Items

    Specific References

    EAN13
    3683
