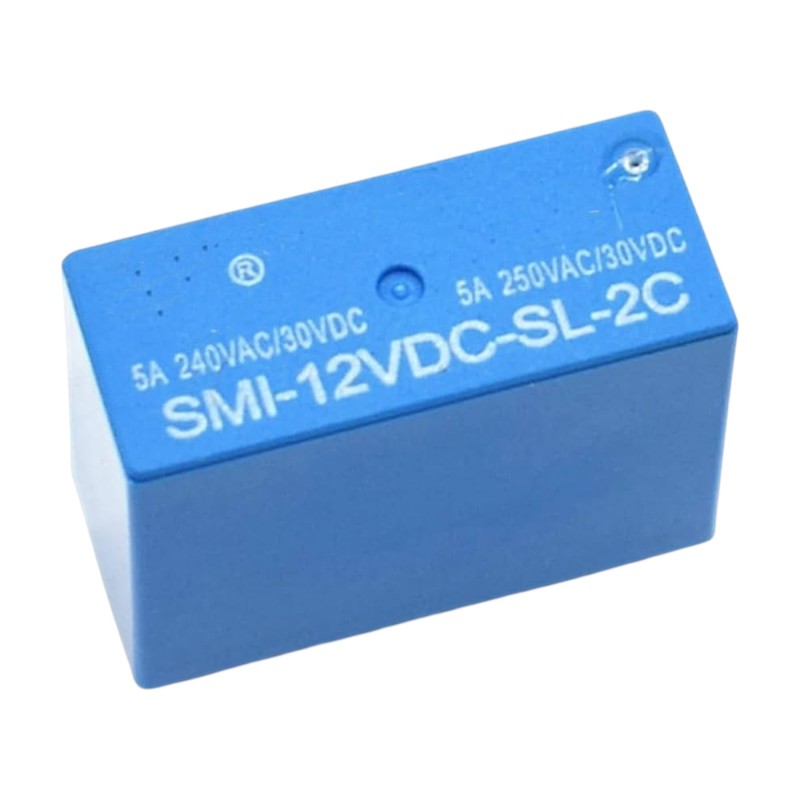

The SMI-12VDC-SL-2C Power Relay is a compact 12V DC electromagnetic relay designed for switching applications requiring high reliability and compact design. With a 5A contact capacity and 8-pin configuration, this relay supports dual-contact (2C) operation for enhanced switching flexibility. Its slim construction allows for high-density PCB installations, making it ideal for modern electronic equipment. The relay body is made from heat-resistant and chemically durable plastic materials, ensuring long-term reliability even in harsh conditions. It is available in both low and general coil power consumption versions to meet diverse application needs. Perfect for use in cooking appliances, air conditioning systems, audio equipment, and various domestic and industrial control circuits, this relay delivers strong performance in a small footprint. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Compact and slim 8-pin relay for high-density PCB mounting.
12V DC coil voltage with 5A switching capacity.
Available in low and general coil power consumption versions.
Durable plastic housing for resistance to heat and chemicals.
Fully enclosed construction protects from dust and soldering flux.
Reliable performance suitable for domestic and industrial devices.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Air conditioning systems and HVAC control units.
Cooking appliances and kitchen automation devices.
Audio and entertainment equipment.
Domestic electrical control panels and timers.
Industrial automation and relay control boards.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Product Type | Power Relay |
| Model | SMI-12VDC-SL-2C |
| Coil Voltage | 12V DC |
| Contact Form | DPDT (2C) |
| Contact Capacity | 5A at 250V AC / 30V DC |
| Number of Pins | 8 |
| Mounting Type | Through-Hole |
| Insulation Resistance | 100 MΩ (minimum at 500V DC) |
| Dielectric Strength | 1500V AC (Between Coil & Contact) |
| Coil Power Consumption | Low and General Power Versions |
| Housing Material | Heat & Chemical Resistant Plastic |
| Protective Structure | Dust and Solder Flux Resistant |
| Operating Temperature | -40°C to +85°C |
| Dimensions | Compact Slim Type |
| Shipment Weight | 0.013 kg |
| Shipment Dimensions | 4 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Power Relay SMI-12VDC-SL-2C 12V 5A 8-Pin
