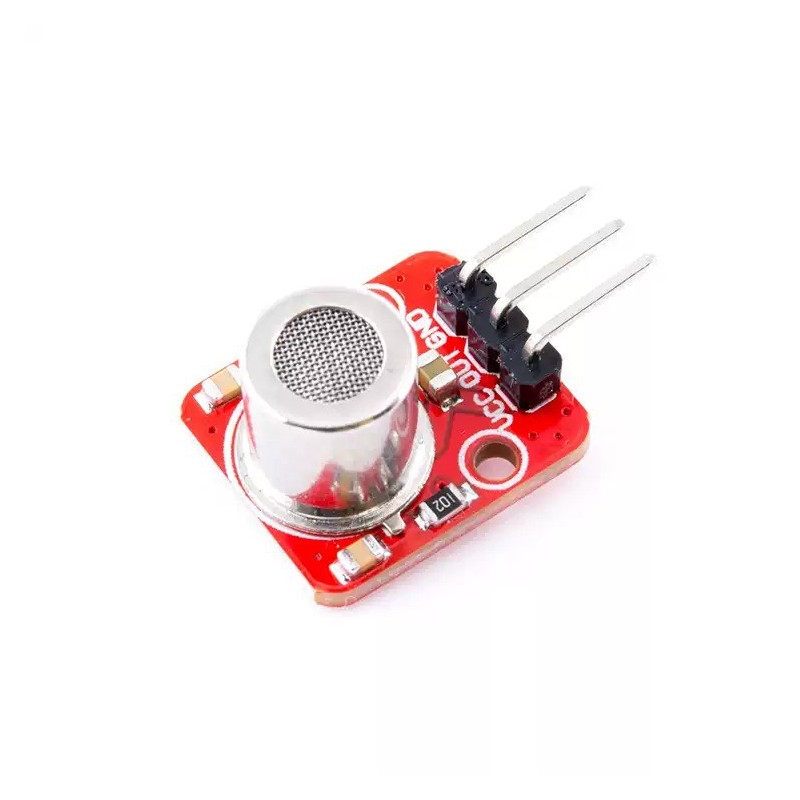

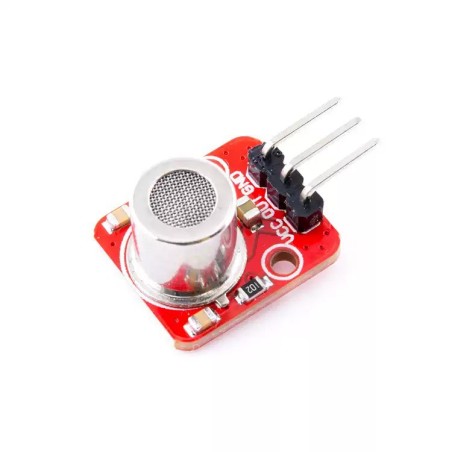

The MP-4 gas sensor module is a semiconductor-type sensor designed for detecting combustible gases such as methane (CH₄) and natural gas. Using advanced flat-type semiconductor manufacturing technology, the sensor integrates a micro Al₂O₃ ceramic heater and a metal oxide semiconductor layer with high sensitivity and fast response.
When exposed to combustible gases, the sensor’s conductivity changes proportionally to the gas concentration, providing a measurable analog voltage output. This makes it ideal for household, commercial, and industrial gas leak detection, fire prevention systems, and air quality safety monitoring.
Features
Detects methane, natural gas, and other flammable gases
High sensitivity and quick response time
Analog output, easy to interface with Arduino or MCU
Compact and durable metal-encased sensor design
Suitable for smart home gas monitoring and safety alarms
Specifications
| Parameter | Description |
|---|
| Detection Gases | Methane (CH₄), Natural Gas |
| Detection Range | 300–10,000 ppm |
| Heating Voltage | 5.0 V ± 0.1 V AC or DC |
| Heater Resistance | 33–38 Ω (room temperature) |
| Sensor Resistance (Rs) | 2 kΩ–20 kΩ (in 5000 ppm CH₄) |
| Sensitivity (S) | Rs (in air) / Rs (in 5000 ppm CH₄) ≥ 5 |
| Slope (α) | ≤ 0.6 (R5000 ppm / R3000 ppm CH₄) |
| Preheating Time | ≥ 48 hours |
| Output Type | Analog |
| Operating Voltage | 5 V DC |
| Dimensions | 13.8 × 16 × 11 mm |
| Mounting Hole | 2 mm |
| Operating Temperature | -20°C to +50°C |
| Operating Humidity | 65% ± 5% RH |
Applications
Home gas leak detectors
Natural gas alarm systems
Fire and safety monitoring
Smart ventilation and HVAC systems
Industrial gas leak warning devices
