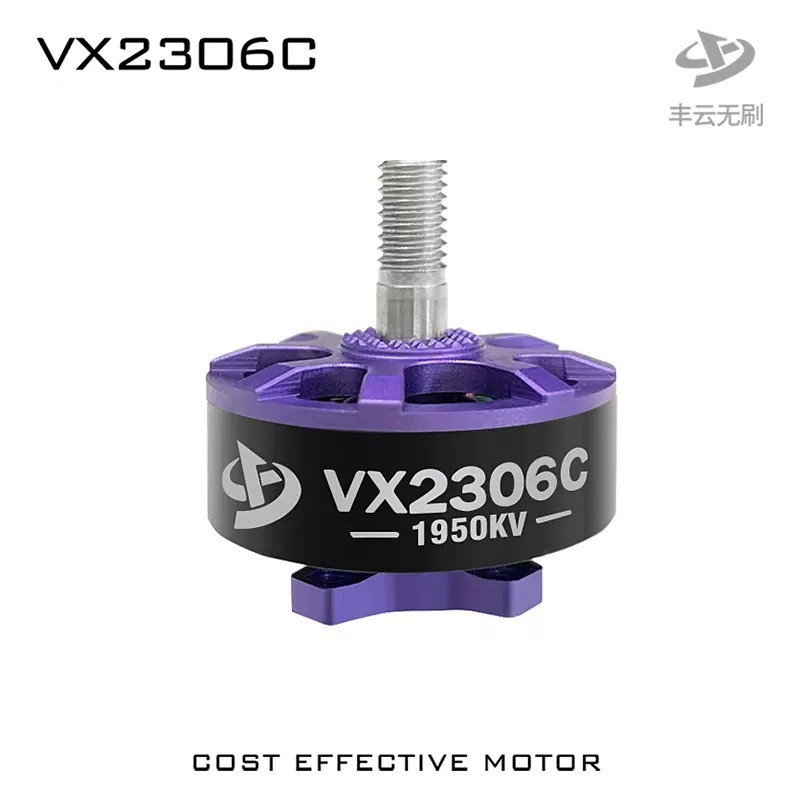

The VX2306C 1950KV Brushless Motor is engineered for FPV pilots who demand high efficiency, strong torque, and stable performance for 5-inch FPV racing and freestyle quads. With a perfect balance of power and throttle response, this motor provides smooth flight characteristics, excellent durability, and impressive thrust on 6S LiPo setups.
Whether you're pushing for long-range cruising, acrobatic freestyle, or high-speed racing, the VX2306C 1950KV delivers reliable performance at an affordable price.
Key Features
• High-performance 2306 stator optimized for powerful 5-inch FPV builds
• Smooth 1950KV rating ideal for 6S LiPo performance
• Strong thrust output up to 2185g
• Efficient low internal resistance (53mΩ) for stable power delivery
• Durable build quality with precision bearings
• Cost-effective motor for racing, freestyle, and long-range applications
• Available in two color options: Matte Purple / Matte Black
Technical Specifications
| Parameter | VX2306C 1950KV |
|---|
| KV Value | 1950KV |
| Configuration | 12N/14P |
| Motor Dimensions | Φ28.5 × 18.7 mm |
| Weight | 35g |
| Internal Resistance | 53mΩ |
| Idle Current (A/V) | 1.05 / 10 |
| Max Current | 53.3A |
| Max Power | 1279W |
| Max Thrust | 2185g |
| Rated Voltage | 6S LiPo |
| Bearing Size | 4 × Φ9 × 4 mm |
How to Use
• Perfect for 5-inch FPV drones used in freestyle, cinematic, racing, and long-range builds.
• Recommended propeller size: 5”–6”
• Pair with a high-quality 6S ESC (45A–60A recommended).
Applications
• FPV Racing Drones
• Freestyle Quads
• Cinematic Long-Range Drones
• High-speed Performance Builds
Package Includes
• 1 × VX2306C 1950KV Brushless Motor
• Mounting Hardware Set
Why Choose This Motor?
The VX2306C 1950KV is a top choice for FPV pilots seeking high thrust, smooth efficiency, and cost-effective performance for aggressive 6S builds. It delivers the power you need without sacrificing control or durability.
