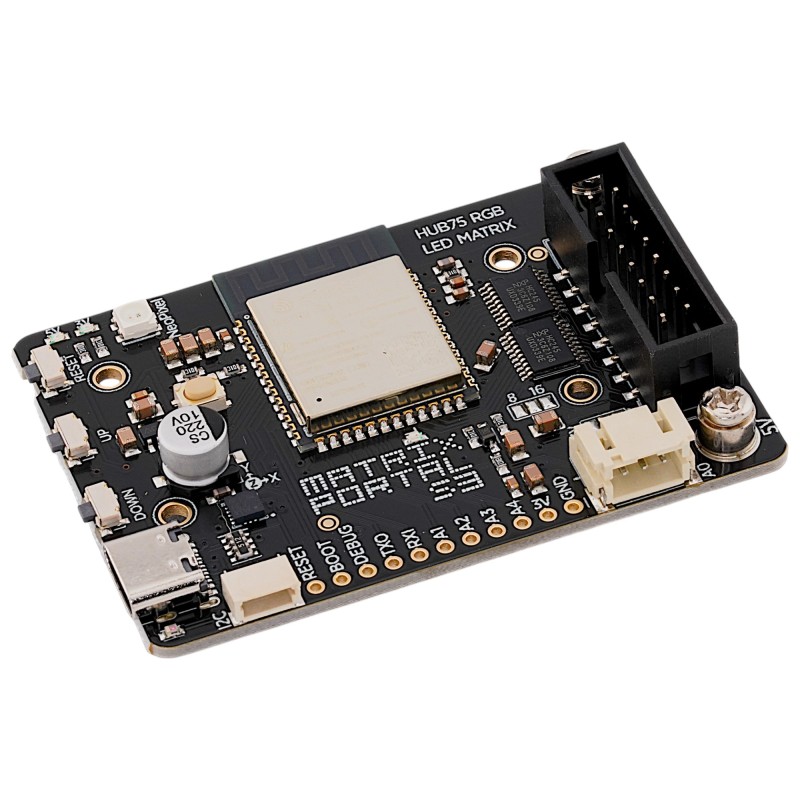

Matrix Portal S3 CircuitPython Powered Internet Display Controller

RBD-4133

The Matrix Portal S3 is a plug-and-play controller designed for driving HUB75 RGB LED matrix panels with minimal wiring and no soldering. It connects directly to compatible RGB matrices and provides built-in WiFi connectivity, making it suitable for Internet-connected displays, dashboards, clocks, signage, and data visualization projects.

BDT 3,945
BDT 3,945 BDT 3,945 BDT 3,945 BDT 3,945
Tax excluded Tax includedTax excludedTax includedTax excluded
BDT 3,945 Tax excluded
BDT 3,945 Tax included
BDT 0 Tax
BDT 3,945 Tax excluded
BDT 0 Tax
BDT 3,945 Tax included
Quantity
Out-of-Stock

1 person has purchased this item
There are not enough products in stock
Description

Product Overview
The Matrix Portal S3 is a plug-and-play controller designed for driving HUB75 RGB LED matrix panels with minimal wiring and no soldering. It connects directly to compatible RGB matrices and provides built-in WiFi connectivity, making it suitable for Internet-connected displays, dashboards, clocks, signage, and data visualization projects.

The board is powered by an ESP32-S3 microcontroller and supports both CircuitPython and Arduino development environments.

Processor and Memory
• ESP32-S3 dual-core processor
• 8 MB Flash memory
• 2 MB PSRAM
• Native USB support

Wireless Connectivity
• WiFi support
• Bluetooth Low Energy hardware support
• CircuitPython supports WiFi networking (BLE not supported in CircuitPython)

Matrix Compatibility
• Supports HUB75 RGB LED matrices
• Compatible sizes from 16x32 up to 64x64
• Supports front or rear IDC cable connections
• Address E jumper included for 64x64 matrices

Power and Connectivity
• USB Type-C connector for power and data
• External 5 V power recommended for large or multiple matrix panels
• Power terminals for matrix power connection
• Supports chaining or panelizing multiple displays

Interfaces and Expansion
• STEMMA QT I2C connector for sensors and accessories
• JST 3-pin connector with analog input support
• GPIO breakout with reset, boot, serial TX, and six GPIO pins
• Supports PWM, SPI, I2S, UART, and analog inputs

Onboard Components
• LIS3DH accelerometer for orientation and motion detection
• Two user buttons and one reset button
• Status NeoPixel and red indicator LED
• Green power indicator LEDs for 3.3 V and 5 V rails

Matrix Drive Features
• Parallel RGB matrix output using ESP32-S3 hardware peripheral
• Dedicated processing for display refresh without software bitbanging
• Dual-core operation allows networking and display tasks to run independently

Software Support
• CircuitPython support with Protomatter matrix library
• Arduino support available
• Preloaded demo firmware for a 32x64 RGB matrix

Audio Notes
• No onboard DAC
• External I2S audio amplifier recommended if audio output is required

Typical Applications
• Internet-connected LED displays
• Clocks and information dashboards
• Weather, calendar, and status displays
• Art installations and signage
• IoT visualization projects

Package Contents
• Matrix Portal S3 controller board (preassembled and preprogrammed)

Not Included
• RGB LED matrix panel
• USB Type-C power supply

Product Details
RBD-4133

Specific References

EAN13
4133
