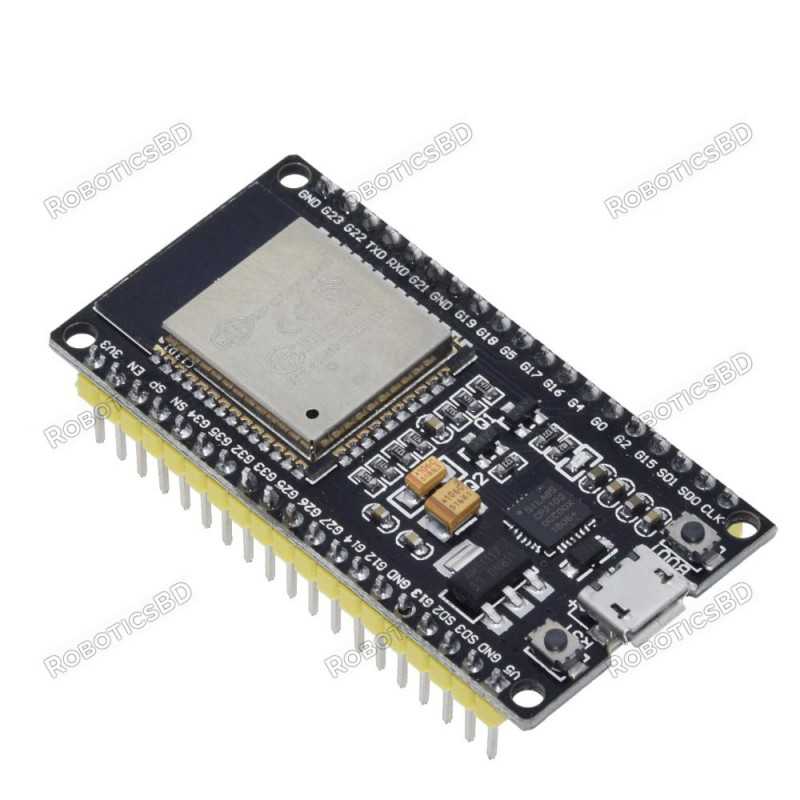

ESP-32S ESP-WROOM-32 Development Board 38P NodeMCU Robotics Bangladesh
  • ESP-32S ESP-WROOM-32 Development Board 38P NodeMCU Robotics Bangladesh
  • ESP-32S ESP-WROOM-32 Development Board 38P NodeMCU Robotics Bangladesh
  • ESP-32S ESP-WROOM-32 Development Board 38P NodeMCU Robotics Bangladesh

ESP-32S ESP-WROOM-32 Development Board 38P NodeMCU

RBD-1820

  • 38 Pin version
  • 2.4GHz Dual-Mode WiFi + Bluetooth Development Board, 38PIN
  • Ultra-Low power consumption works perfectly with the IDE

A high-quality USB cable is essential for this board to ensure sufficient current supply; otherwise, your board may not be recognized by the Windows Device Manager. Please avoid using mobile phone cables and instead use the recommended cable available here: High-Quality USB Cable.

BDT 690.00
BDT 690.00 BDT 690.00 BDT 690.00 BDT 690.00
Tax included Tax excluded Tax included Tax excluded
BDT 690.00 Tax excluded
BDT 690.00 Tax included
BDT 0.00 Tax
BDT 690.00 Tax excluded
BDT 0.00 Tax
BDT 690.00 Tax included
Quantity
In-Stock
50 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

ESP-WROOM-32 ESP32 ESP-32S Development Board 2.4GHz Dual-Mode WiFi + Bluetooth Dual Cores Microcontroller. The ESP32 is integrated with Antenna switches, RF Balun, power amplifiers, low-noise amplifiers, filters, and management modules, and the entire solution occupies the least area of PCB. 2.4 GHz Wi-Fi plus Bluetooth dual-mode chip, with TSMC Ultra-low power consumption 40nm technology, power dissipation performance, and RF performance is the best, safe and reliable, easy to extend to a variety of applications.  Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. High performance-price ratio
  2. Small volume, easily embedded to other products
  3. Strong function with support LWIP protocol, Freertos
  4. Supporting three modes: AP, STA, and AP+STA
  5. Supporting Lua program, easily to develop

Specification:

  1.  2.4GHz Dual-Mode WiFi + Bluetooth Development Board, 38PIN
  2.  Ultra-Low power consumption works perfectly with the IDE
  3.  Support LWIP protocol, Freertos
  4.  SupportThree Modes: AP, STA, and AP+STA
  5. ESP 32 is safe, reliable, and scalable to a variety of applications

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Processor Dual-core 32-bit processor, operating at a frequency of 80, 160 or 240 MHz
RAM 520 KB
Flash memory 448 KB
Power Supply 2.2-3.6 V
ADC 12-bit 18
DAC 8-bit 2
Temperature sensor Built in
SPI 4
I2S 2
I2C 2
UART 3
Ethernet controller Yes
CAN 2.0
Hall Sensor Built in
Shipment Weight 0.091 kg
Shipment Dimensions 10 × 7 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Installation:

  1. 1. Download the Arduino IDE
  2. Install Git from the site
  3. Run Git GUI
  4. Select Clone Existing Repository
  5. In the Source Location write https://github.com/espressif/arduino-esp32.git
  6. In the Target Directory write C:/Users / [USERNAME]/Documents/Arduino/hardware/espressif / esp32
  7. Click Clone
  8. Open the directory C:/Users / [USERNAME]/Documents/Arduino/hardware/espressif/esp32 / tools and run the file get.exe
  9. Connect our Board
  10. If the drivers themselves are not installed, then install the driver for CP210x (I had CP2102) from here
  11. Run the Arduino IDE
  12. Select the cost in the Tools > Board (Tools > Board) (I DOIT ESP32 DEVKIT V1)
  13. Select the COM port to which the Board is installed
  14. How to identify a port?
  15. Open device Manager
  16. Open the group "Ports (COM & LPT)"
  17. Look the name of the device. There must be something like that among them Meet ESP32, part 1: installing the Arduino IDE ESP32, arduino, instruction, first run, dinobot COM7 - this is our port.
  18. Select any example (for example, here)
  19. Load by pressing Ctrl + U
  20. Some instructions say that you need to press the BOOT button on the Board during boot. (Check)

Package Includes:

1 x ESP32 38Pin Development Board.
