An aluminum electrolytic capacitor, often only called an electrolytic capacitor, uses aluminum metal as one electrode, covered with a very thin layer of aluminum oxide as dielectric, and which has an
the electrolyte as its second electrode. RoboticsBD
Aluminum electrolytic capacitors are typically used in power supplies and DC-DC converters for smoothing and buffering rectified DC voltages in many electronic devices. They are also used in industrial power supplies. Aluminum electrolytic capacitors are polarized capacitors because of their
anodization principle. They can only be operated with DC voltage applied with the correct polarity. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Typical applications of aluminum electrolytic capacitors with non-solid electrolytes are
- Input and output decoupling capacitors for smoothing and filtering. RoboticsBD
- DC-link capacitors in AC/AC converters for variable-frequency drive and frequency
changers
- Correction capacitors for power factor correction
Applications:
- Energy storage.
- Pulsed power and weapons.
- Power conditioning.
- Power factor correction Capacitors. .
- Capacitor Safety.
- Hold-up capacitor applications.
- RF coupling and decoupling applications.
- Smoothing capacitor applications.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Capacitance |
220uF |
| Operating Voltage (VDC) |
16V |
| Tolerance(%) |
(+/-5%) |
| Operating Temperature Range (℃) |
-30 to 60 degree Celsius |
| Mounting Type |
Through Hole |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Datasheet
Package Includes:

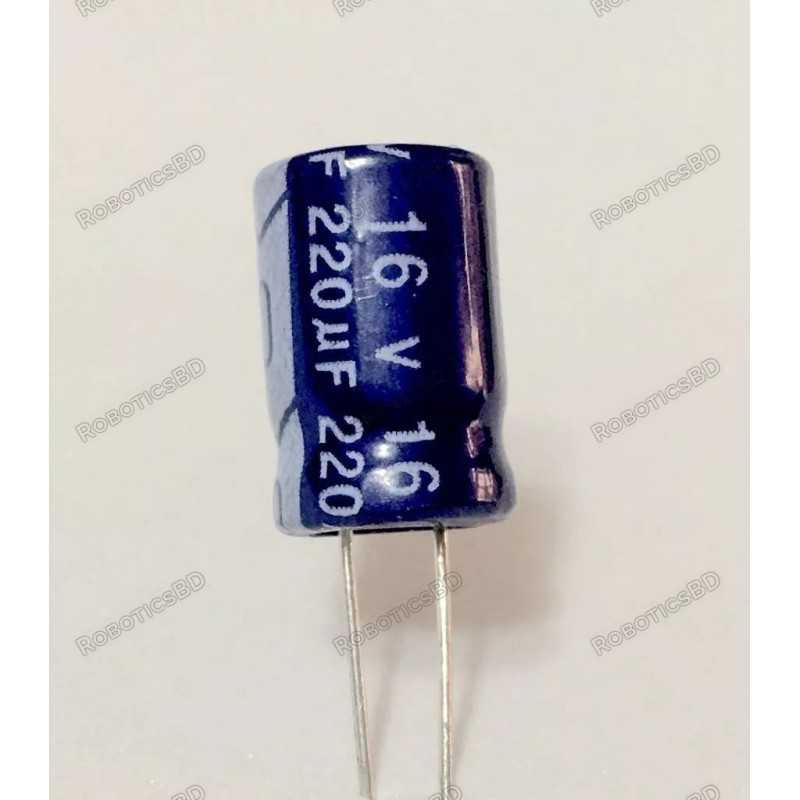

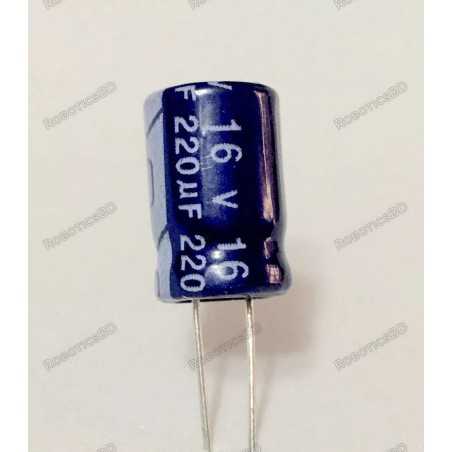

1 x 220uf/16v Capacitor.
