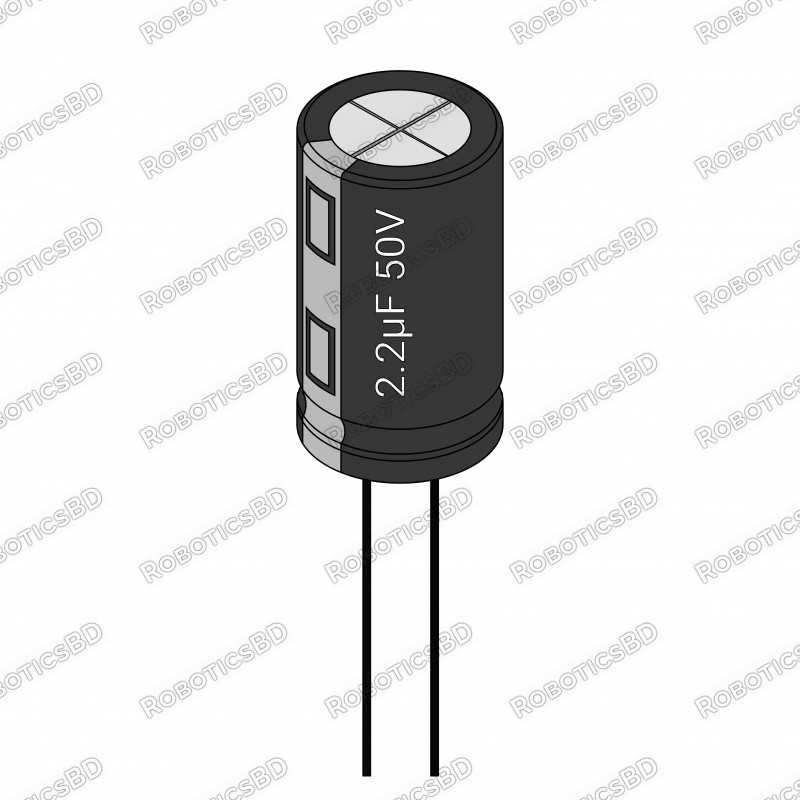

The aluminum electrolytic 2.2uF 50V capacitor is an electronic component that is used to store and release electrical charge in a circuit. It is a type of electrolytic capacitor that uses a layer of aluminum oxide as a dielectric, which separates the two plates of the capacitor. The 2.2uF value refers to the capacitance of the capacitor, which is 2.2 microfarads, and the 50V value refers to the maximum voltage that the capacitor can safely withstand.
Aluminum electrolytic capacitors are polarized components, meaning they have a positive and negative lead that must be connected correctly in a circuit. They are commonly used in power supply circuits, audio circuits, and other applications that require relatively large capacitance values. The compact size, low cost, and relatively high capacitance values make them a popular choice for many circuit designs.. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
-
Capacitance: The capacitor has a capacitance value of 2.2 microfarads, which is a relatively large value for an electrolytic capacitor.
-
Voltage rating: The capacitor is rated to withstand a maximum voltage of 50 volts, which makes it suitable for use in many low- to medium-voltage applications.
-
Polarized: The capacitor is polarized, which means that it must be connected with the correct polarity in a circuit to function properly.
-
Aluminum construction: The capacitor uses an aluminum electrode and an aluminum oxide dielectric to store and release electrical charge.
-
Low cost: The aluminum electrolytic 2.2uF 50V capacitor is a relatively inexpensive component, making it an attractive option for many circuit designs.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
-
Power supply circuits: The capacitor can be used to smooth out voltage fluctuations in power supply circuits, reducing noise and improving stability.
-
Audio circuits: The capacitor can be used as a coupling capacitor to block DC voltage and allow AC signals to pass through in audio circuits.
-
Motor control circuits: The capacitor can be used in motor control circuits to filter noise and improve efficiency.
-
LED driver circuits: The capacitor can be used in LED driver circuits to stabilize voltage and reduce flicker.
-
Timer circuits: The capacitor can be used in timer circuits to control the timing of signals and trigger events at specific intervals.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Capacitance |
2.2 microfarads |
| Voltage rating |
50 volts |
| Tolerance |
±20% |
| Leakage current |
0.01 CV or 3μA (whichever is greater) at 25°C after 2 minutes |
| Ripple current |
27 mA RMS at 100 kHz, 85°C |
| Operating temperature |
-40°C to +105°C |
| Lifetime |
2000 hours at 105°C |
| Dimensions |
5 mm x 11 mm |
| Polarization |
Polarized |
| Packaging |
Tape and reel |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x 2.2uF 50V Capacitor
