Small Size with good self-healing effect. Have strong moisture resistance and well proof voltage. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Material: Polypropylene film
- Electrode: Metallized Vacuum Evaporated Layer (With complexing jumbo-size Zinc and Aluminum)
- Out Box: ABS/PBT Fire-proof plastic box(UL94 V-0) (UL94 V-0)
- Encapsulation: Fire-proof Epoxide Resin
- Pin: With copper-clad steel leads or PVC Electronic Tread
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Rated Voltage |
250VAC/280VAC |
| Capacitance Range |
0.0022µF--4.7µF |
| Capacitance Tolerance |
(±5%); (±10%) |
| Voltage Proof |
4.3UR Or 2100VDC 5S Between the Electrode and Outbox 2000VAC 5S |
| Climate Conditions |
-40--+100℃ |
| Mounting Type |
Through Hole |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Datasheet
Package Includes:

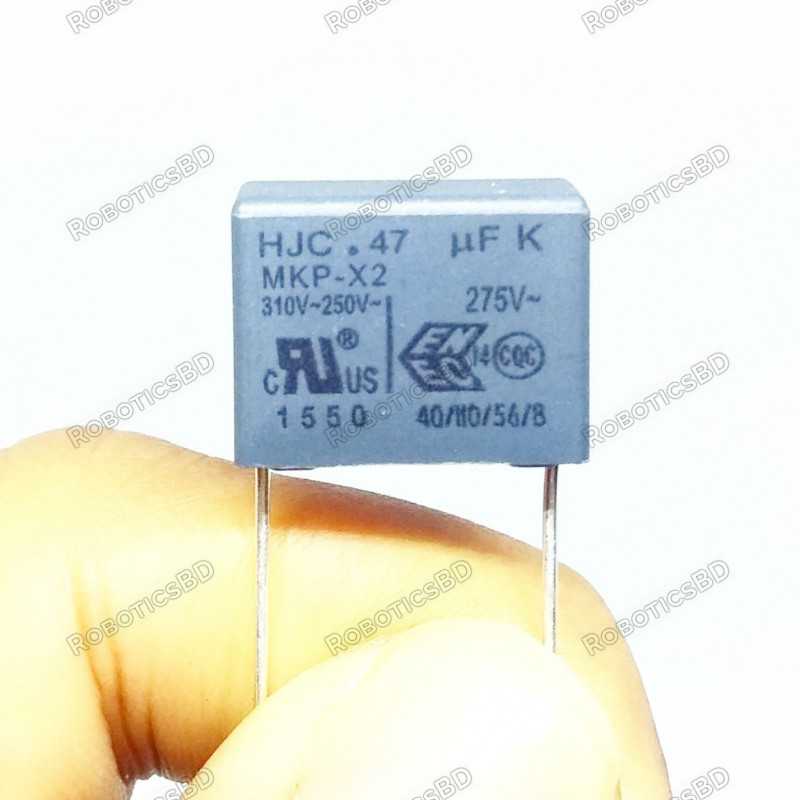

1 x HJC 474 0.47UF K 250V to 275 safety capacitor.
