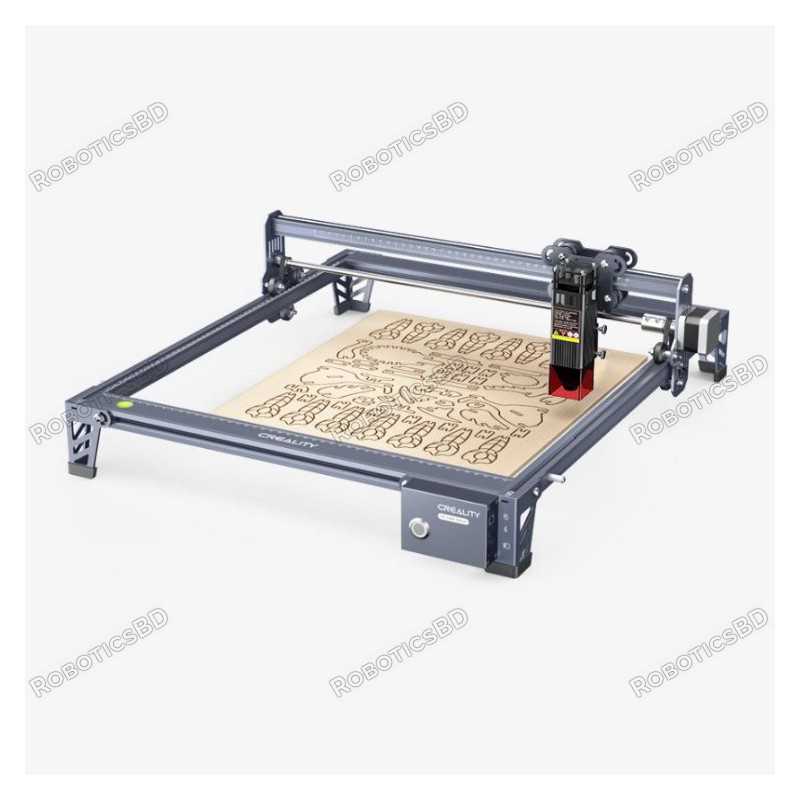

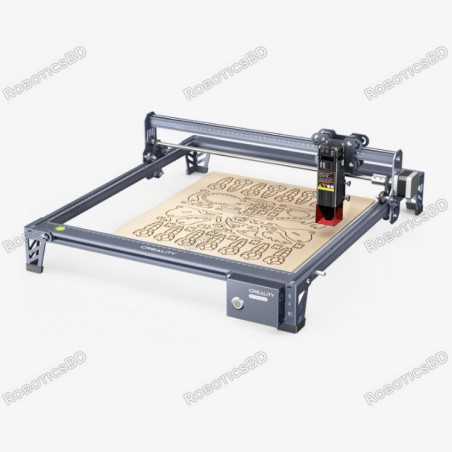

Creality CR-Laser Falcon 10W Laser Engraver, enhanced 10W laser head, with advanced LD+FAC+C-lens technology delivers compressed spot of up to 0.06mm,making deeper cutting with a smoother and cleaner surface possible.
Able to engrave and cut various materials:
Flexible materials: paper, cloth, leather, fabrics, etc.
Materials of average hardness: wood, pvc, bamboo, acrylics, plastics, etc
Materials of high hardness: mated stainless steel, painted metal surface, anodized surface, dark metal surface, etc
User-friendly design:
Embedded bubble level: A visualized aid to level the machine body to ensure engraving consistence.
Multi-level fixed focus bar: Find the right focus distance for different materials without measuring.
Features:
- New Compression Spot Technology: Creality CR-Laser Falcon 10W Laser Engraver is improved LD+FAC+C-Lens technology, which delivers compressed spot to 0.06mm, and making deeper cutting with a smoother and cleaner surface possible. Easily cut through 12mm wood board with one pass.
- Improved Stability: Built-in 32-bit mainboard with aluminum alloy integrated design and dual stepper motors ensure stability in high-speed movement. 4 durable v-shaped motion wheels come with stable v-slot sliding rail and high-tension synchronous belt, which algorithm to drive the steppers in x and y arises precisely, synchronously and quietly.
- Widely Compatibility: Creality CR-Laser Falcon 10W Laser Engraver compatible with laserGRBL lightBurn software which support Linux/Mac OS/Windows(Win XP/Win 7/8/10/11), engraving file format supports SVG/PNG/DX/TIF/BMP/PDF.
- Limited Switch Design: When the movement of laser head reaches the maximum size position, the limit switch will automatically trigger to protect CR-Laser Falcon from collapse.
- One-button Control: A single button to preview, start, pause or stop printing, and the integrated LED indicator will signal the status clearly.
- All-around Safety Protections: With a gyroscope, the machine will stop working in case of accidental tilt, flip or drop, with the buzzer and indicator sending alert.
- Stable and robust Architect: 8mm polished fixed arm instead of average 6mm laser arm, L-shaped anti-slip rubber tripods.
| General Specification |
| Item Model |
Creality CR-Laser Falcon 10W |
| Laser Spot |
0.06mm*0.06mm |
| Laser Module Output Power |
10W |
| Wave Length |
455±5nm |
| Engraving Speed |
Max.10000mm/min |
| Working Area |
415x400mm |
| Engraving accuracy |
0.01mm |
| Connecting Interfaces |
USB, Offline Use |
| Focusing method |
Fixed focus laser |
| Operating software |
LightBurn, laser GRBL, Creality Cloud APP |
| Operating Systems |
Mac OS/Windows |
| File Type(s) |
SVG/PNG/DX/TIF/BMP/PDF/NG |
| Carving materials |
Flexible materials: paper, cloth, leather, fabrics, etc. Materials of average hardness: wood, pvc, bamboo, acrylics, plastics, etc. Materials of high hardness: mated stainless steel, painted metal surface, anodized surface, dark metal surface, etc |
| Cutting material |
Flexible materials: paper, cloth, leather, fabrics, etc. Materials of average hardness: wood, pvc, bamboo, acrylics, plastics, etc Materials of high hardness: mated stainless steel, painted metal surface, anodized surface, dark metal surface, etc |
| Shipment Weight |
5.039 kg |
| Shipment Dimensions |
60 × 30 × 20 cm |
Please allow 5% measuring deviation due to manual measurement.
Gallery:
Package Includes:
1 x CR-Laser Falcon Laser Engraver (10W)
