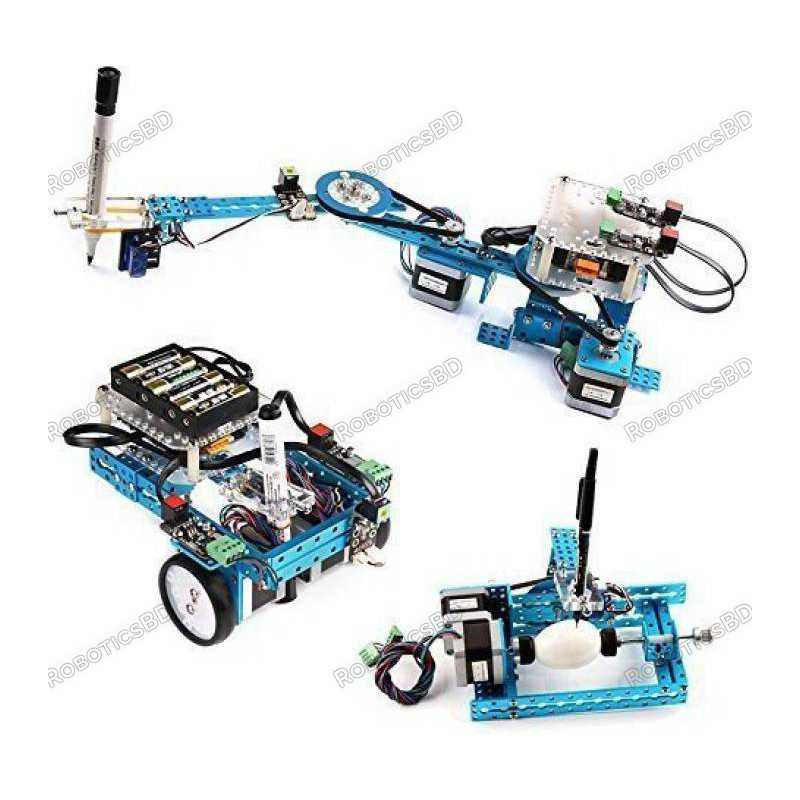

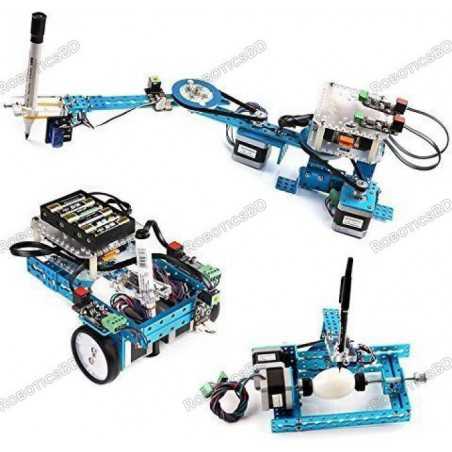

mDrawBot is the world’s most fully-featured four-in-one drawing robot. It can be assembled into 4 different configurations: mScara, mSpider, mEggBot, and mCar. This kit consists of over 60 components from Makeblock, including beams, brackets, motor, etc. It also comes with a specially-designed software named mDraw to control these robots. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- mScara: mScara is a SCARA (Selective Compliance Articulated Robot Arm) driven by stepper motors. Adding a pen on mScara, it can draw pictures on a flat surface. You can also turn mScara into a desktop laser engraver replacing the pen with a laser diode.
- mSpider: mSpider is a drawing robot which can draw pictures on a wall or a white board. Two stepper motors control the movement of mSpider though strings. Theoretically, its drawing range can be expanded by increasing the length of the strings.
- mEggBot: mEggBot is designed to draw on things that are improbable to print on, such as eggs or ping-pong balls. It can be used to write letters, draw expressions on spheroid, or draw Easter eggs.
- mCar: mCar is a three-wheel robot car, which contains two stepper-motor-drive wheels and a ball-caster wheel. It can draw its own movement tracks on flat surface. Installing a chalk instead of a pen, it can draw on the floor. RoboticsBD
mScara:
mSpider:
mEggBot:
mCar:
Features:
- Frame: Anodized Aluminum
- Software: mDraw
- Connection: USB or Bluetooth
- Supported File Types: .Plain SVG, .BMP etc.
- Supported OS: Windows7 or later, Mac OS X
How to Use mDrawBot ?
Each mDrawBot kit can be assembled into any of the 4 different configurations. We provide the detailed assembling instructions and you can build any configuration in an hour. The assembly instructions can be downloaded here: https://github.com/Makeblock-official/mDrawBot.
After installing the mDraw software, you can import images and make the robot draw them. mDraw is a powerful software designed for mDrawBot. Here are some features:
- Support mScara, mSpider, mEggBot, mCar, XY
- Support both pen drawing and laser engraving
- Support custom settings of motor direction, drawing range, etc
- Support saving parameters Support SVG. file
- Support conversion from BMP to SVG
- Support zooming, rotating, mirroring, and moving the SVG graphics
- Support Windows7 or later. (Will be available in Mac OS X, Linux soon.)
- mDraw is an open source project hosted on Github.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Input Voltage |
AC 100-240 V |
| Input Current |
0.6A |
| Output Voltage |
DC 12V, 2.0A |
| Working Area: mScara |
120° of an annulus (exradius 208mm, inradius 168mm) |
| Working Area: mSpider |
Undefined |
| Working Area: mEggbot |
Cylinder with L×D=60×（10-60） |
| Working Area: mCar |
Undefined |
| Main Controller: |
Makeblock Orion (Arduino UNO compatible) |
| Shipment Weight |
2.715 kg |
| Shipment Dimensions |
18 × 16 × 6 cm |
Please allow 5% measuring deviation due to manual measurement.
