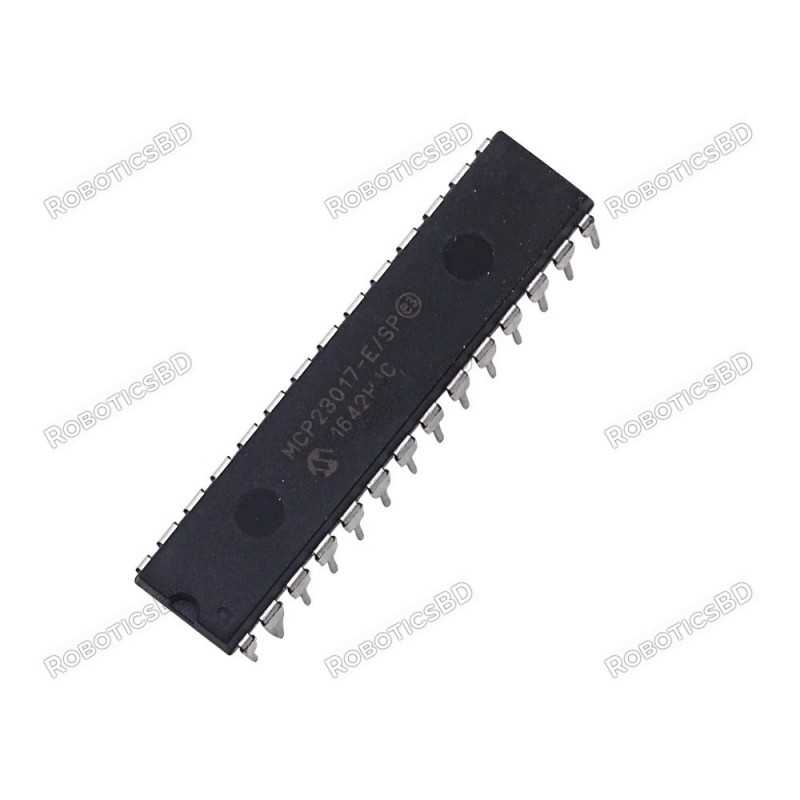

MCP23017 I2C 16 Input/Output Port Expander

RBD-0385

  • IC Name: MCP23017
  • Package/Case: DIP-28
BDT 490.00
BDT 490.00 BDT 490.00 BDT 490.00 BDT 490.00
Tax included Tax excluded Tax included Tax excluded
BDT 490.00 Tax excluded
BDT 490.00 Tax included
BDT 0.00 Tax
BDT 490.00 Tax excluded
BDT 0.00 Tax
BDT 490.00 Tax included
Quantity
In-Stock
19 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Add another 16 pins to your microcontroller using a MCP23017 port expander.The MCP23017 uses two i2c pins (these can be shared with other i2c devices), and in exchange gives you 16 general purpose pins. You can set each of 16 pins to be input, output, or input with a pullup. There's even the ability to get an interrupt via an external pin when any of the inputs change so you don't have to keep polling the chip. RoboticsBD

Use this chip from 2.7-5.5V (good for any 3.3V or 5V setup), and you can sink/source up to 20mA from any of the I/O pins so this will work for LEDs and such. Team it up with a high-power MOSFET if you need more juice. DIP package means it will plug into any breadboard or perfboard.

You can set the i2c address by tying the ADDR0-2 pins to power or ground, for up to 8 unique addresses. That means 8 chips can share a single i2c bus - that's 128 I/O pins! Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. 16-Bit Remote Bidirectional I/O Port: - I/O pins default to input
  2. High-Speed I2C Interface (MCP23017): 100 kHz 400 kHz 1.7 MHz
  3. High-Speed SPI Interface (MCP23S17): 10 MHz (maximum)
  4. Three Hardware Address Pins to Allow Up to Eight Devices On the Bus
  5. Configurable Interrupt Output Pins:
  6. INTA and INTB Can Be Configured to Operate Independently or Together. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
IC Name MCP23017
Package/Case DIP-28
Shipment Weight 0.05 kg
Shipment Dimensions 3 × 3 × 3 cm

 Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

Datasheet

Package Includes:

1 x MCP23017 - i2c 16 input/output port expander.
