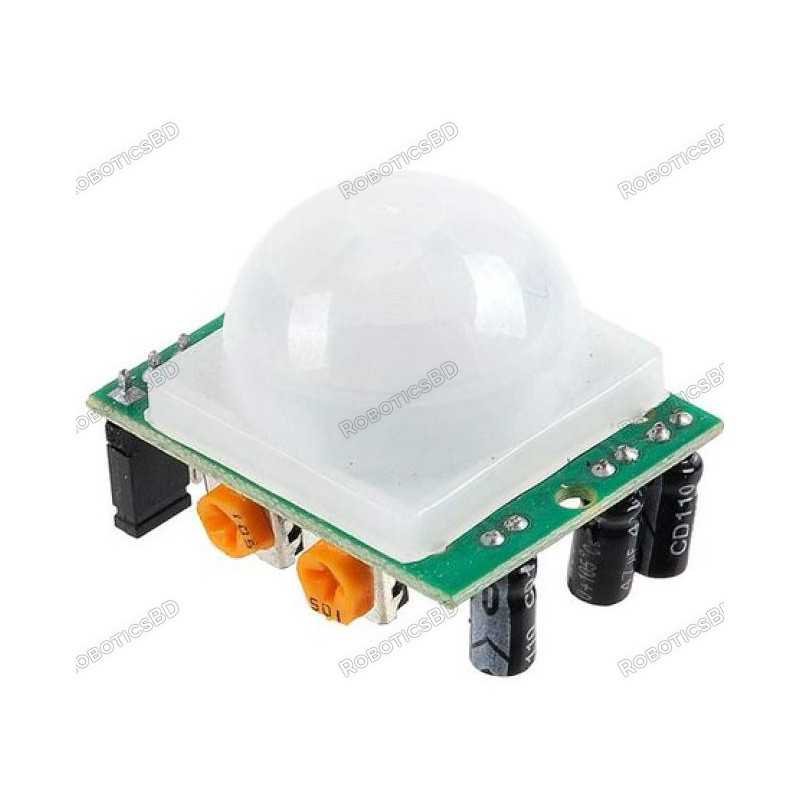

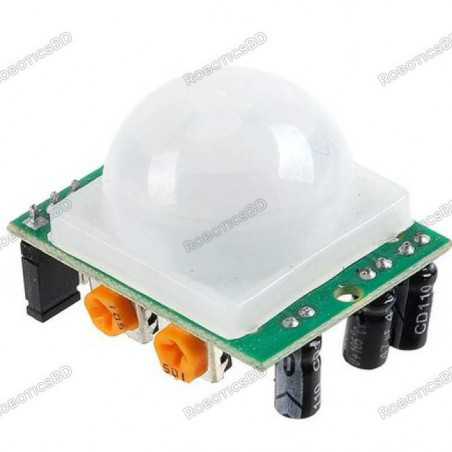

The PIR Motion Sensor Detector Module HC-SR501 is a passive infrared sensor that is used to detect motion. It works by sensing changes in the infrared radiation emitted by objects in its field of view, such as the body heat of a moving person. When motion is detected, the HC-SR501 outputs a digital signal to indicate the presence of movement. The sensor is commonly used in security systems, lighting control, and automation applications to detect the presence of people and trigger an action, such as turning on a light or activating an alarm. The HC-SR501 features a compact size, low power consumption, and adjustable sensitivity, making it a popular choice for a variety of projects and applications. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features :
- Infrared Sensor with Control Circuit Board
- The Sensitivity and Holding Time are adjustable.
- Blockade time: 2.5s (Default)
- Sensitive Setting: Turn to Right, Distance Increases (About 7M); Turn to Left, Distance Reduce (About 3M)
- Time Setting: Turn to Right, Time Increases (About 200S); Turn to Left, Time Reduce (About 5S).
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Application :
- Burglar alarm systems
- Automated lighting systems
- Home security systems
- Automatic door openers
- Smart energy saving systems for households and commercial spaces.
| General Specification |
| Model |
PIR HC-SR501 |
| Operating Voltage (VDC) |
4.5 ~ 20 |
| Average Current Consumption (mA) |
0.06 |
| Distance Measuring Range (CM) |
300 ~ 700 |
| Output Type |
(High/ Low-level Signal) 3.3V TTL output |
| Dimensions (mm) LxWxH |
32 x 24 x 18 |
| Weight (gm) |
10 |
| Working Temperature Range (°C) |
-20 to 80 |
| Detection Angle |
<140° |
| Delay Time |
5 to 200s (Can be Adjusted, Default 5s +/- 3%) |
| Shipment Weight |
0.015 kg |
| Shipment Dimensions |
4 × 3 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Do not obstruct the sensor's view or place it in direct sunlight.
- Avoid high levels of vibration near the sensor.
- Keep the sensor away from strong electromagnetic fields.
- Do not expose the sensor to extreme temperatures.
- Make sure the wiring connections are correct and secure to avoid potential hazards.
Package Includes :
1 x PIR Motion Sensor Detector Module HC SR501
