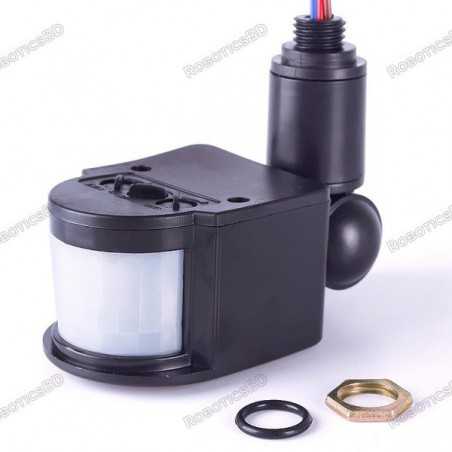

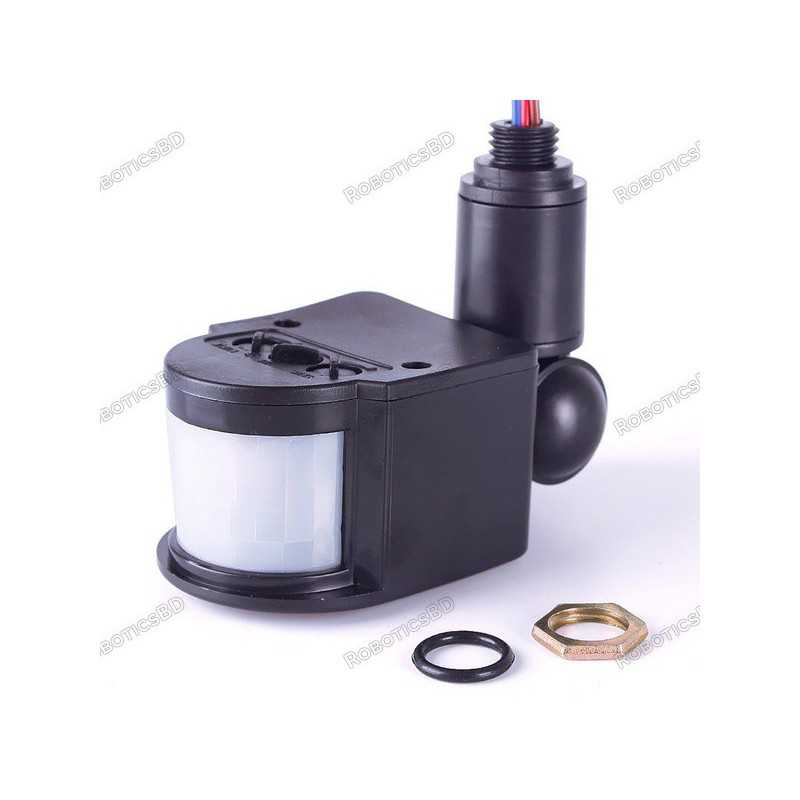

Automatic Infrared PIR Motion Sensor Switch 12V

RBD-1348

  • Easy to install.
  • Automatic, convenient, safe and practical.
  • It has the function of power and detection indication.
  • The motion sensor can identify day and night automatically.
BDT 1,350.00
BDT 1,350.00 BDT 1,350.00 BDT 1,350.00 BDT 1,350.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,350.00 Tax excluded
BDT 1,350.00 Tax included
BDT 0.00 Tax
BDT 1,350.00 Tax excluded
BDT 0.00 Tax
BDT 1,350.00 Tax included
Quantity
In-Stock
18 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Built-human infrared sensor module. Sensor module is light effected and has delay switch module, load capacity and strong anti-jamming capability.  Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Output: Maximum 1000W incandescent lamp, 100W fluorescent lamp Exhaust fan 100W, Motor 100W, Electric bell 100W

Connection:

  1. Blue color: Negative line (-)
  2. Brown color: Live wire (+)
  3. Red: Ground wire

Features:

  1. Easy to install.
  2. Automatic, convenient, safe and practical.
  3. It has the function of power and detection indication.
  4. The motion sensor can identify day and night automatically.
  5. It has a wide detection range made up of up and down, left and right service field.
  6. This product is a new type of energy-saving lighting switch, it adopts a high sensitivity detector, integrates circuit and SMT.
  7. It utilizes human motion infrared rays as control signal sources when one enters the detection field, it will start the controlled load at once.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Color: Grey, Black, White
Material: ABS
Working Rotation: 180 Degree
Voltage: DC 12V
Standard: LVD, EMC, CE, RoHS
IP Rating: Indoor application IP44
LUX Setting: 2-2000lux svr adjustable
Size (cm) 18 x 7 x 5
Induction lighting time: 5s~6min adjustable time
Detection distance: Approx. 12M, installation 1.5-2.5M High
Shipment Weight 0.095 kg
Shipment Dimensions 19 × 8 × 6 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Note:

  1. The item can be less sensitive if you go forward the detector,
  2. but it can be sensitive if you go down the for cross-section.
  3. If the person stops moving under the motion sensor, it can't light on also.
  4. When it is very hot in summer, then the temperature of the environment is nearly the same as people, it may not detect well.

Package Includes:

1 x Automatic Infrared PIR Motion Sensor Switch 12V

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
