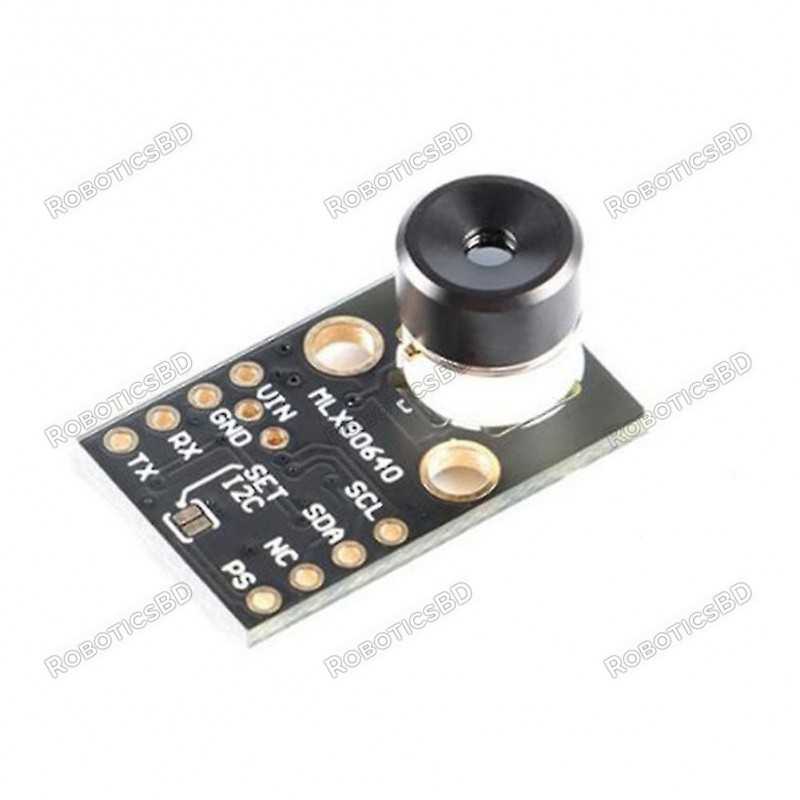

MLX90640BAA 32*24 Thermal Imager Array Temperature Sensor Module Robotics Bangladesh
  • MLX90640BAA 32*24 Thermal Imager Array Temperature Sensor Module Robotics Bangladesh
  • MLX90640BAA 32*24 Thermal Imager Array Temperature Sensor Module Robotics Bangladesh

MLX90640BAA 32*24 Thermal Imager Array Temperature Sensor Module

RBD-2384

  • Module for measuring infrared temperature
  • Uses the GY-MCU90640 MLX90640 BAA 32*24 dot matrix sensor
  • Field of view angle of 110*75 degrees
  • Ambient temperature range of -40 to 85 degrees
  • Target temperature range of -40 to 300 degrees
  • Serial output frequency supports up to 16HZ baud rate 460800
BDT 8,950.00
BDT 8,950.00 BDT 8,950.00 BDT 8,950.00 BDT 8,950.00
Tax included Tax excluded Tax included Tax excluded
BDT 8,950.00 Tax excluded
BDT 8,950.00 Tax included
BDT 0.00 Tax
BDT 8,950.00 Tax excluded
BDT 0.00 Tax
BDT 8,950.00 Tax included
Quantity
Last items in stock
3 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The MLX90640BAA 3224 Thermal Imager Array Temperature Sensor Module is a versatile and easy-to-use sensor module that can be used to measure temperature in a 32x24 pixel grid. The module is based on the MLX90640 thermal sensor chip, which is a high-performance infrared temperature sensor that can measure temperatures from -40 to 300 degrees Celsius. The module has a field of view angle of 11075 degrees, which is suitable for short-distance measurement. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Measures temperature in a 32x24 pixel grid
  2. Suitable for short-distance measurement
  3. Comes with upper computer software for temperature imaging
  4. Works with 3.3V or 5V power supply
  5. Low working current
  6. Wide operating temperature range
  7. Small and lightweight

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Industrial monitoring
  2. Scientific research
  3. Medical diagnostics
  4. Home automation
  5. Security and surveillance

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Sensor Chip MLX90640
Pixel Resolution 32x24
Field of View Angle 110*75 degrees
Ambient Temperature Range -40 to 85 degrees Celsius
Target Temperature Range -40 to 300 degrees Celsius
Serial Output Frequency Up to 16HZ baud rate 460800
Power Supply 3.3V or 5V
Working Current <1mA
Operating Temperature Range -40 to 85 degrees Celsius
Dimension (mm) 48 x 25 x 15
Weight 15g
Shipment Weight 0.020 kg
Shipment Dimensions 10 × 10 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x MLX90640BAA 32*24 Thermal Imager Array Temperature Sensor Module
