Force Sensitive Resistor - Square
  • Force Sensitive Resistor - Square
  • Force Sensitive Resistor - Square
  • Force Sensitive Resistor - Square

Force Sensitive Resistor Square 40mm

RBD-2172

  • Easily customizable to a wide range of sizes
  • Cost-effective
  • Ultra-thin; 0.45 mm
  • Robust; up to 10 million actuations
  • Simple and easy to Integrate. RoboticsBD
  • Force Sensitive Resistor Square High Quality
BDT 1,720.00
BDT 1,720.00 BDT 1,720.00 BDT 1,720.00 BDT 1,720.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,720.00 Tax excluded
BDT 1,720.00 Tax included
BDT 0.00 Tax
BDT 1,720.00 Tax excluded
BDT 0.00 Tax
BDT 1,720.00 Tax included
Quantity
In-Stock
19 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

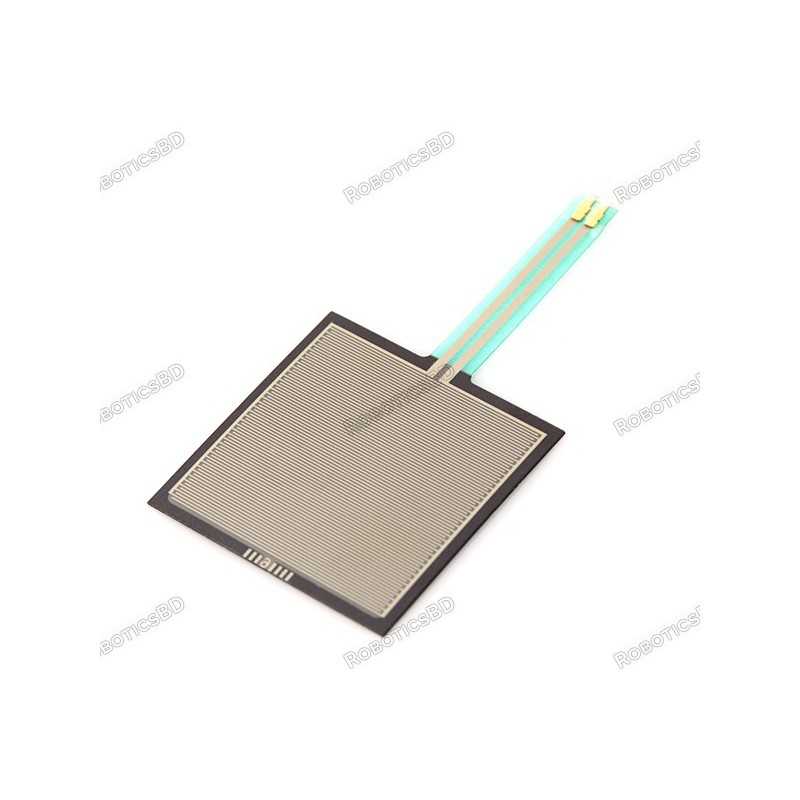

This is a force sensitive resistor with a square, 1.75 x 1.5″, sensing area. This FSR will vary its resistance depending on how much pressure is being applied to the sensing area. The harder the force, the lower the resistance. When no pressure is being applied to the FSR its resistance will be larger than 1MΩ.

This FSR can sense applied force anywhere in the range of 100g-10kg. Two pins extend from the bottom of the sensor with 0.1″ pitch making it bread friendly. There is a peel-and-stick rubber backing on the other side of the sensing area to mount the FSR. RoboticsBD

Just Connect a resistor to form a voltage divider and measure the voltage at the junction to find the force applied. These sensors are simple to set up and great for sensing pressure, but they aren’t incredibly accurate. Use them to sense if it’s being squeezed, but you may not want to use it as a scale.

Dimensions: Overall length: 3.5″ Overall width: 1.75″ Sensing area: 1.75×1.5″ Documents: FSR Integrating Guide Comments Write Your Comments

This sensor can be easily interfaced with Microcontrollers, Arduino Boards, Raspberry Pi etc. using an Analog to Digital Converter (ADC). RoboticsBD

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:
  1. Testing and Measurement Equipment.
  2. Embedded Electronics.
  3. OEM Development Kit.
  4. Consumer Electronics.
  5. Multimeter.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Easily customizable to a wide range of sizes.
  2. Cost-effective.
  3. Ultra-thin: 0.45 mm.
  4. Robust: up to 10 million actuations.
  5. Simple and easy to Integrate. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Shape Square
Sensing Area diameter (mm) 40mm
Min Pressure 100 gm
Max Pressure 10 kg
Length (mm) 89
Weight (gm) Approx 5
Shipment Weight 0.02 kg
Shipment Dimensions 10 × 5 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. FSRguide
  2. force-sensitive-resistor-arduino
  3. FSR Integrating Guide: Refer to the integrating guide for detailed instructions on connecting and using the Force Sensitive Resistor in your projects.
  4. Avoid exposing the FSR to extreme conditions or liquids, as it may affect its performance and durability.
  5. For precise measurements, consider using additional calibration techniques or more accurate sensors if required.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x Force Sensitive Resistor - Square

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-2172
19 Items

Specific References

EAN13
2172
