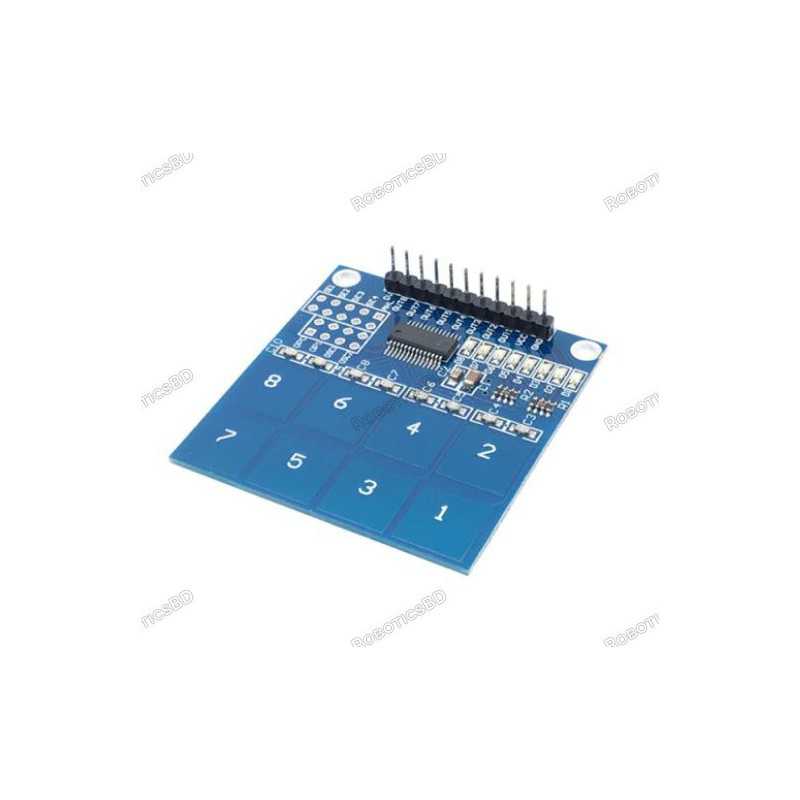

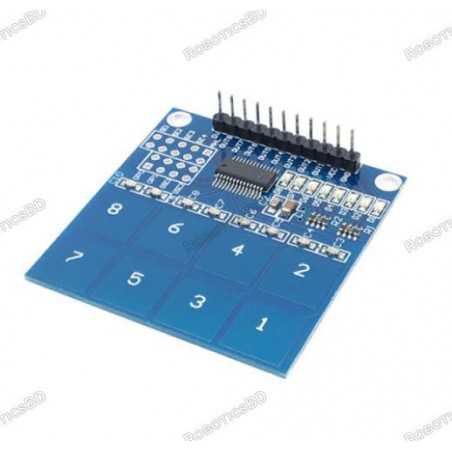

TTP229 8 Channel Digital Capacitive Switch Touch Sensor Module for Arduino Robotics Bangladesh
  • TTP229 8 Channel Digital Capacitive Switch Touch Sensor Module for Arduino Robotics Bangladesh

TTP229 8 Channel Digital Capacitive Switch Touch Sensor Module for Arduino

RBD-0416

  • Onboard 8 key TTP226 capacitive touch induction IC. RoboticsBD
  • Onboard 8-way level indicator.
  • Working voltage: 2.4 to 5.5 V.
  • Modules, you can set the output mode, key output mode, the longest time and fast/low power output
BDT 250.00
BDT 250.00 BDT 250.00 BDT 250.00 BDT 250.00
Tax included Tax excluded Tax included Tax excluded
BDT 250.00 Tax excluded
BDT 250.00 Tax included
BDT 0.00 Tax
BDT 250.00 Tax excluded
BDT 0.00 Tax
BDT 250.00 Tax included
Quantity
In-Stock
20 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The TTP226 is a touchpad detector IC which offers 8 touch key. The touching detection IC is designed for replacing the traditional direct button key with a diverse pad size. Capacitive touch allows electronics to sense when your finger is within a few millimeters of a surface to simulate a button “press” just like how the pushbutton works. Capacitive sensing may be used in any place where low to no force human touch sensing is desirable. The TTP229 is capacitive sensing design specifically for touch pad controls. The device has a built in regulator for the touch sensor. Stable sensing method can cover diversity conditions. Interface control panel links through non-conductive dielectric material. The main application is focused at replacing of the mechanical switch or button. This board can independently handle the 8 touch pads with 8 direct output pins. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. On-board TTP226 capacitive touch induction IC
  2. On-board 8-way level indicator.
  3. Adjustable output mode, key output mode, longest time and fast/low power output. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Operating Voltage (VDC) 2.4 ~ 5.5
Output Sink Current 8mA
Output Pin Pull-up Current 4mA
Response Time (Low Power Mode) 220ms
Response Time 60mS
Length (mm) 46
Width (mm) 47
Height (mm) 11
Weight (gm) 6
Shipment Weight 0.01 kg
Shipment Dimensions 8 × 10 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x TTP229 8 Channel Digital Capacitive Switch Touch Sensor Module for Arduino.
