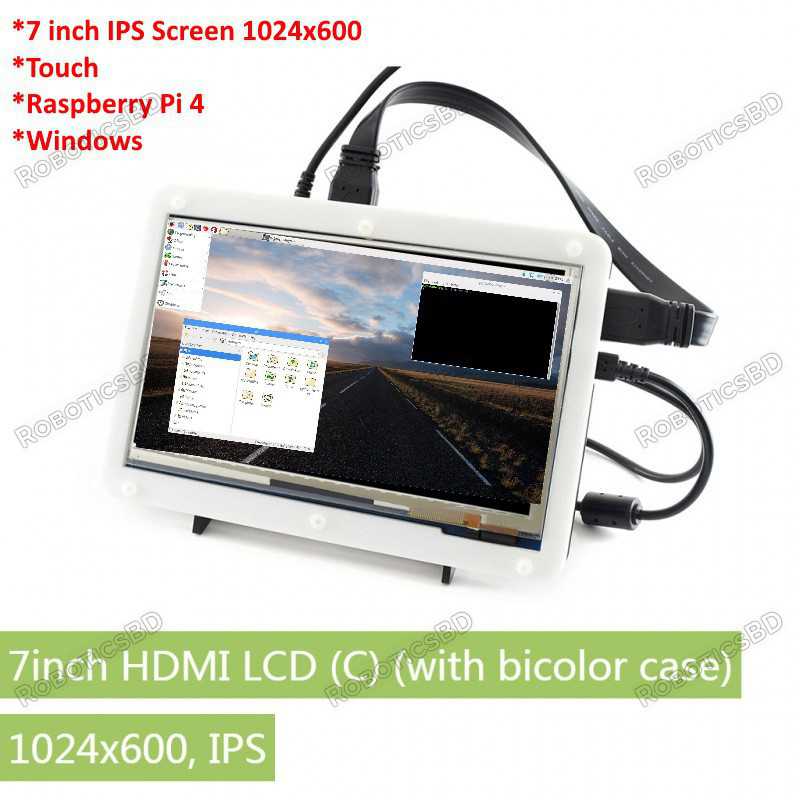

Raspberry Pi 7inch HDMI Touchscreen LCD with Case

RBD-1167
Waveshare

  • Resolution:1024 x 600
  • Display Port: HDMI
  • Touch Type: Capacitive
  • Touch Points:5 points
  • 7-inch IPS screen with a hardware resolution of 1024×600.
  • 5-points capacitive touch control.
  • Using Raspberry Pi, it supports Raspbian / Ubuntu / Kali / Retropie and WIN10 IoT, no need to install any drivers.
BDT 7,990.00
BDT 7,990.00 BDT 7,990.00 BDT 7,990.00 BDT 7,990.00
Tax included Tax excluded Tax included Tax excluded
BDT 7,990.00 Tax excluded
BDT 7,990.00 Tax included
BDT 0.00 Tax
BDT 7,990.00 Tax excluded
BDT 0.00 Tax
BDT 7,990.00 Tax included
Quantity
In-Stock
13 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This is a Waveshare 7-inch Resistive Touch Screen LCD, with a resolution of 1024×600, and a resistive touch panel, which supports Raspberry Pi and can also be used as a computer monitor. This product supports Windows 10/8.1/8/7 OS. For the Windows 10/8.1/8 OS. This LCD can support Raspbian / Ubuntu / Kali / Retropie and WIN10 IoT systems. When the LCD works on systems such as Raspberry Pi, the resolution must be set manually, otherwise, it will cause an abnormal display. There is no such problem when the LCD works on the PC version of Windows. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Specifications:

  1. Resolution:1024 x 600
  2. Display Port: HDMI
  3. Touch Type: Capacitive
  4. Touch Points:5 points
  5. 7-inch IPS screen with a hardware resolution of 1024×600.
  6. 5-points capacitive touch control.
  7. Using Raspberry Pi, it supports Raspbian / Ubuntu / Kali / Retropie and WIN10 IoT, no need to install any drivers.
  8. Using as a computer monitor, it supports Windows 10 / 8.1 / 8 / 7, five-point touch, no need to install any drivers.
  9. Support backlight control, more power saving.

Working with Raspberry Pi:

For the Windows OS on PC, the resolution of the LCD is automatically identified. Hence, you do not need to make the relative settings. When working with Raspberry Pi, you should set the resolution of the LCD by yourself, or else the LCD screen will not work. For more detail information, please read the following section. RoboticsBD

Turn on the "backlight" switch then connect the LCD to your Pi (HDMI Port of LCD -> HDMI Port of Pi; USB Port of LCD -> USB Port of Pi; 5V~2A power supply). Download the Raspbian image from Raspberry Pi web site. Write the image to a TF card and append the following lines to the config.txt file which is located in the root of your TF card:

  • max_usb_current=1
  • hdmi_group=2
  • hdmi_mode=87
  • hdmi_cvt 1024 600 60 6 0 0 0
  • hdmi_drive=1

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Resolution: 1024 x 600
Display Port: HDMI
Touch Type: Capacitive
Touch Points: 5 points
Shipment Weight 0.275 kg
Shipment Dimensions 22 × 16 × 4 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. 7inch HDMI LCD (C)
  2. 7inch HDMI LCD (C) User Manual

Package Includes:

1 x 7inch HDMI LCD (C)

1 x HDMI cable

1 x HDMI to Micro HDMI Adapter

1 x USB type A plug to micro B plug cable

1 x RPi screws pack (4pcs)

1 x Bicolor Case for 7inch LCD

1 x Quick start sheet.
