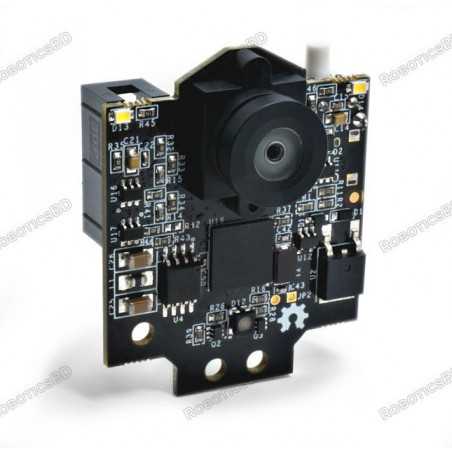

Pixy2 CMUcam5 Smart Vision Sensor Robotics Bangladesh

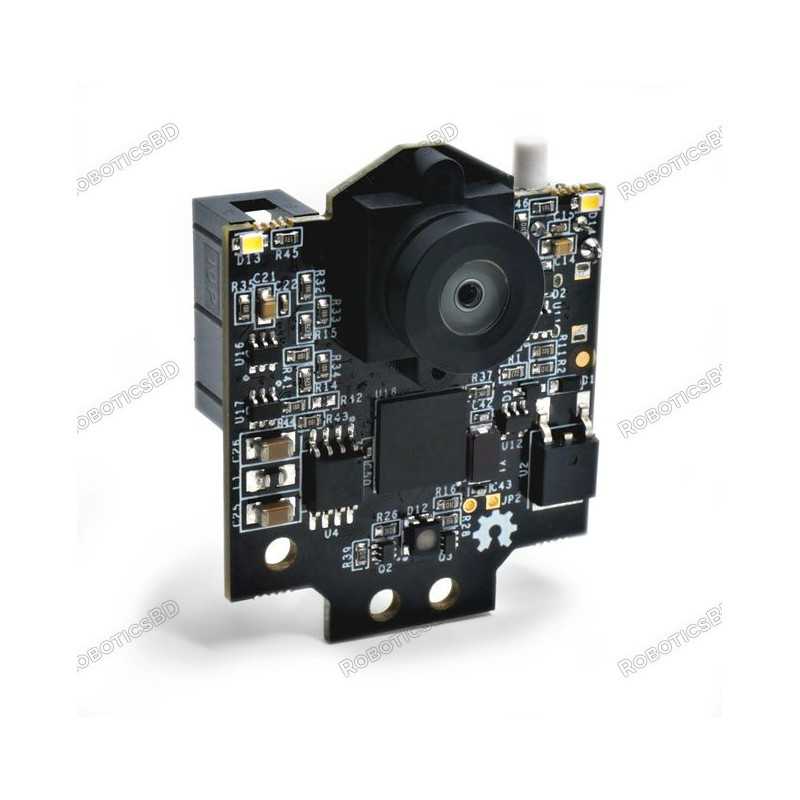

  • Pixy2 CMUcam5 Smart Vision Sensor Robotics Bangladesh
  • Pixy2 CMUcam5 Smart Vision Sensor Robotics Bangladesh
  • Pixy2 CMUcam5 Smart Vision Sensor Robotics Bangladesh
  • Pixy2 CMUcam5 Smart Vision Sensor Robotics Bangladesh
  • Pixy2 CMUcam5 Smart Vision Sensor Robotics Bangladesh

Pixy2.1 CMUcam5 Smart Vision Sensor

RBD-1422

  • Processor: NXP LPC4330, 204 MHz, dual core
  • Image sensor: Aptina MT9M114, 1296×976 resolution with integrated image flow processor
  • Lens field-of-view: 80 degrees horizontal, 40 degrees vertical
  • Power consumption: 140 mA typical
  • Power input: USB input (5V) or unregulated input (6V to 10V)
  • RAM: 264K bytes
  • Flash: 2M bytes
BDT 12,950.00
BDT 12,950.00 BDT 12,950.00 BDT 12,950.00 BDT 12,950.00
Tax included Tax excluded Tax included Tax excluded
BDT 12,950.00 Tax excluded
BDT 12,950.00 Tax included
BDT 0.00 Tax
BDT 12,950.00 Tax excluded
BDT 0.00 Tax
BDT 12,950.00 Tax included
Quantity
In-Stock
4 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The Pixy2.1 CMUcam5 is the second version of Pixy. It's faster, smaller, and more capable than the original Pixy, adding line tracking/following algorithms as well as other features.  Pixy2.1 CMUcam5 can detect lines, intersections and small barcodes, intended for line-following robots. RoboticsBD

The small, fast, easy-to-use, low-cost, readily-available vision system. Able to learn to detect objects that you teach it. Compatible with Arduino using the included cable. Also works with Raspberry Pi, BeagleBone and similar controllers. All libraries for Arduino, Raspberry Pi, etc. are provided.  Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Pixy2.1 detects lines, intersections and small barcodes, intended for line-following robots.
  2. Improved framerate – 60 frames-per-second.
  3. Tracking algorithms have been added to color-based object detection.
  4. Improved and simplified libraries for Arduino, Raspberry Pi, and other controllers.
  5. Integrated light source.
  6. C/C++ and Python are supported
  7. Communicates via one of several interfaces: SPI, I2C, UART, USB or analog/digital output
  8. Configuration utility runs on Windows, macOS, and Linux
  9. All software/firmware is open-source GNU-licensed
  10. All hardware documentation including schematics, bill of materials, PCB layout, etc. are provided
  11. Seven color signatures
  12. Hundreds of objects

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Lens type Standard M12
Processor NXP LPC4330, 204 MHz, dual-core
Power Input USB input (5V) or unregulated input (6V to 10V)
Lens field-of-view 80° horizontal, 40° vertical
RAM 264K bytes
Flash 2M bytes
Length (mm) 38
Width (mm) 42
Height (mm) 15.3
Weight (gm) 70
Shipment Weight 0.075 kg
Shipment Dimensions 6 × 6 × 4 cm

Please allow 5% measuring deviation due to manual measurement.


The Pixy 2.1 camera isn't designed for high-quality photography. Its primary function is object recognition through its camera, so the images it captures might have a retro feel rather than the crispness of modern photography.

Sample Image:

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Pixy Software
  2. Pixy Project

Package Includes:

1 x Pixy2.1 CMUcam5 Smart Vision Sensor

1 x Connecting IDC Cable.

1x Mounting Accessories.
