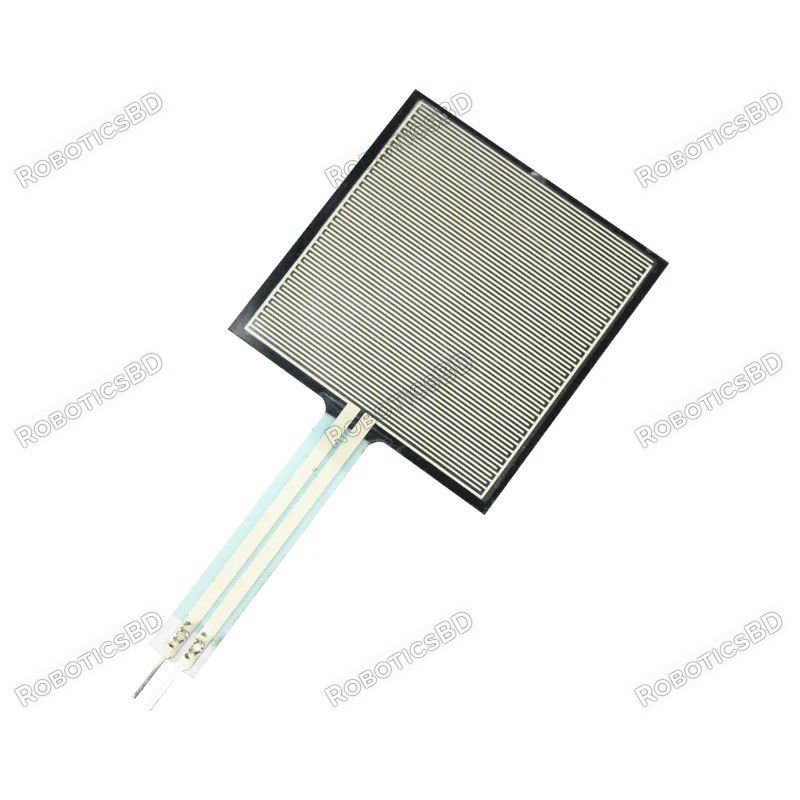

Force Sensor Resistor Square 38.1mm

RBD-0417

  • Easily customizable to a wide range of sizes
  • Cost-effective
  • Ultra-thin; 0.45 mm
  • Robust; up to 10 million actuations
  • Simple and easy to Integrate. RoboticsBD
BDT 1,620.00
BDT 1,620.00 BDT 1,620.00 BDT 1,620.00 BDT 1,620.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,620.00 Tax excluded
BDT 1,620.00 Tax included
BDT 0.00 Tax
BDT 1,620.00 Tax excluded
BDT 0.00 Tax
BDT 1,620.00 Tax included
Quantity
In-Stock
12 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

his Force Sensor Resistor Square 38.1mm can sense applied force anywhere in the range of 100g-10kg. Two pins extend from the bottom of the sensor with 0.1″ pitch making it bread friendly. There is a peel-and-stick rubber backing on the other side of the sensing area to mount the FSR.

Just Connect a resistor to form a voltage divider and measure the voltage at the junction to find the force applied. These sensors are simple to set up and great for sensing force, but they aren’t incredibly accurate. Use them to sense if it’s being squeezed, but you may not want to use it as a scale.

Dimensions: Overall length: 3.5″ Overall width: 1.75″ Sensing area: 1.75×1.5″ Documents: FSR Integrating Guide Comments Write Your Comments

This Force Sensor Resistor Square 38.1mm can be easily interfaced with Microcontrollers, Arduino Boards, Raspberry Pi etc. using an Analog to Digital Converter (ADC).

Applications:
  1. Testing and Measurement Equipment.
  2. Embedded Electronics.
  3. OEM Development Kit.
  4. Consumer Electronics.
  5. Multimeter.

Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:
  1. Testing and Measurement Equipment.
  2. Embedded Electronics.
  3. OEM Development Kit.
  4. Consumer Electronics.
  5. Multimeter.

Features:

  1. Easily customizable to a wide range of sizes.
  2. Cost-effective.
  3. Ultra-thin: 0.45 mm.
  4. Robust: up to 10 million actuations.
  5. Simple and easy to Integrate. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Shape Square
Sensing Area diameter (mm) 38.1
Min Pressure 100 gm
Max Pressure 10 kg
Length (mm) 89
Weight (gm) Approx 5
Shipment Weight 0.02 kg
Shipment Dimensions 10 × 5 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. FSRguide
  2. force-sensitive-resistor-arduino

Package Includes:

1 x Force Sensitive Resistor - Square .

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-0417
12 Items

Specific References

EAN13
0417
