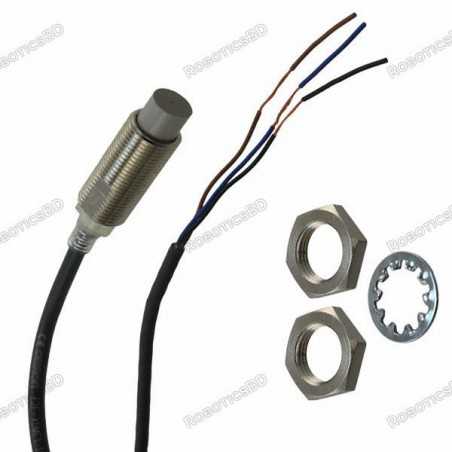

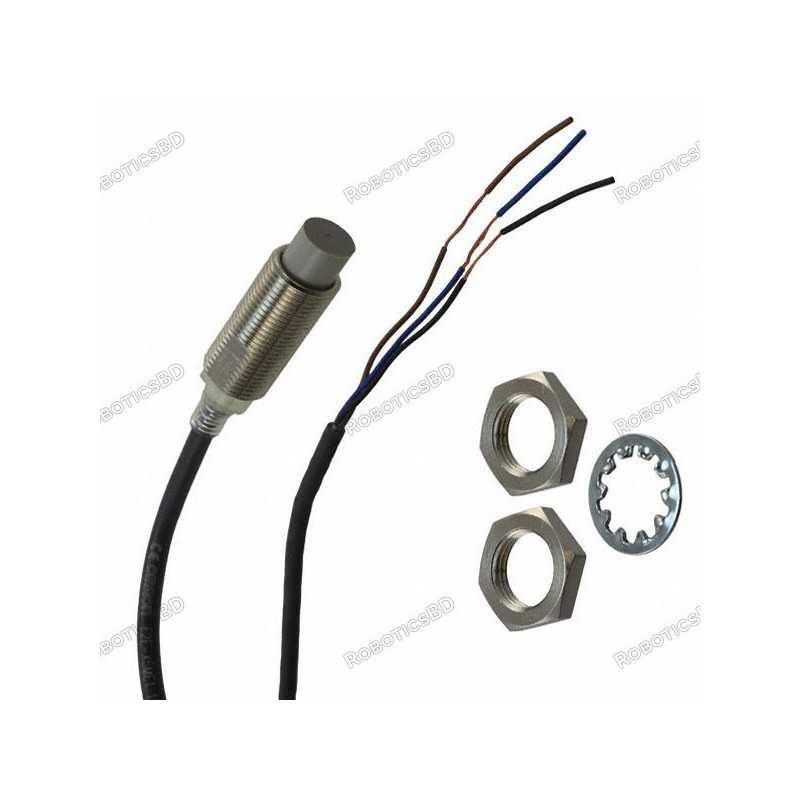

Omron Proximity Sensor Switch Omron E2E-X5ME1

RBD-0491

  • Sensor Type: Inductive
  • Sensing Distance: 0.197" (5mm)
  • Output Type: NPN-NO, 3-Wire
  • Response Frequency: 400Hz
BDT 1,299.00
BDT 1,299.00 BDT 1,299.00 BDT 1,299.00 BDT 1,299.00
Tax included Tax excluded Tax included Tax excluded
BDT 1,299.00 Tax excluded
BDT 1,299.00 Tax included
BDT 0.00 Tax
BDT 1,299.00 Tax excluded
BDT 0.00 Tax
BDT 1,299.00 Tax included
Quantity
Last items in stock
2 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This is a High-accuracy good quality Omron Proximity Sensor Switch E2E-X5ME1

Applications:
  1. Industrial Grade
  2. Pipeline counter. RoboticsBD

Features:

  1. Material - Body: Nickel-Plated Brass
  2. Voltage - Supply: 10V ~ 40V
  3. Termination Style: Cable Leads
  4. Operating Temperature: -40°C ~ 85°C

General Specification
Sensing head size M12
Type Cylinder type (with screw), Unshielded
Power source DC Three-wires models
Sensing distance 5 mm ±10%
Setting distance 0 to 4 mm
Differential distance 10% max. of sensing distance
Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing object Iron 15 x 15 x 1 mm
Response frequency 0.4 kHz
Power supply voltage 12 to 24 VDC ripple (p-p) 10% max.
Operating voltage range 10 to 30 VDC
Current consumption 13 mA max.
Control output (Output type) NPN collector load built-in output
Control output (Switching capacity) 200 mA max.
Indicator Operation indicator (red)
Operation mode NO
Protective circuit Output short-cut protection
Reverse polarity protection
Surge suppressor
Ambient temperature (Operating) -40 to 85 ℃
Ambient temperature (Storage) -40 to 85 ℃
Ambient humidity (Operating) 35 to 95% RH
Ambient humidity (Storage) 35 to 95% RH
Temperature influence ±10% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃
±15% max. of sensing distance at 23 ℃ in the temperature range of -40 to 85 ℃
Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance Between charged parts and the case: 5 MΩ min. at 500 VDC
Dielectric strength Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance Destruction: 1000 m/s2 10 times each in X, Y, and Z directions
Degree of protection IEC: IP67
Company standard: Oil-proof
Connection method Pre-wired models (5 m)
Material Case: Brass nickel plating
Sensing surface: Polybutylene terephthalate (PBT)
Clamping nuts: Brass nickel plating
Toothed washers: Iron zinc plating
Accessories Instruction manual
Shipment Weight 0.08 kg
Shipment Dimensions 18 × 18 × 6 cm

Documentation:

  1. https://www.ia.omron.com/product/item/1488/

Package Includes:

1 x Omron Proximity Sensor Switch Omron E2E-X5ME1
