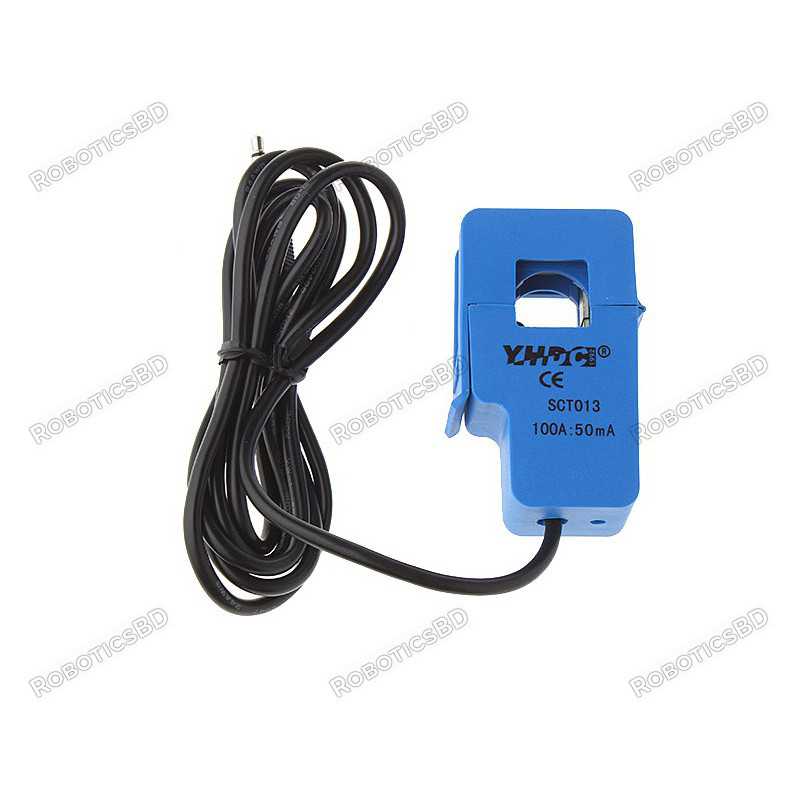

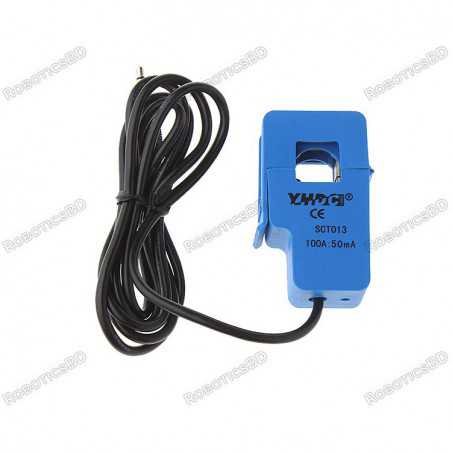

Non-invasive AC current Sensor Split Core Current Transformer SCT-013-050 50A Robotics Bangladesh
  • Non-invasive AC current Sensor Split Core Current Transformer SCT-013-050 50A Robotics Bangladesh
  • Non-invasive AC current Sensor Split Core Current Transformer SCT-013-050 50A Robotics Bangladesh

Non-invasive AC current Sensor Split Core Current Transformer SCT-013-050 50A

RBD-1835

  • Input current (RMS): 50A.
  • Work temperature: -25℃～+70℃.
  • Storage temperature: -30℃～+90℃.
  • Work voltage: 660V.
  • Frequency range: 50Hz-1KHz.
BDT 780.00
BDT 780.00 BDT 780.00 BDT 780.00 BDT 780.00
Tax included Tax excluded Tax included Tax excluded
BDT 780.00 Tax excluded
BDT 780.00 Tax included
BDT 0.00 Tax
BDT 780.00 Tax excluded
BDT 0.00 Tax
BDT 780.00 Tax included
Quantity
In-Stock
29 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The SCT-013-050 Non-invasive current sensor offers a silicon steel sheet split core structure, hanging installation with leads Length of 1m, used for current measurement, monitor and protection for AC motor, lighting equipment, air compressor, etc.  Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications
  1. Suitable for the current measuring.
  2. Monitoring and protection of AC motor
  3. Lighting equipment
  4. Air compressor

Features :

  1. Non-invasive current transformer
  2. Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection
  3. Meet UL94-V0 flame retardant properties
  4. Two forms of output current, voltage (voltage output built-in the sampling resistor).

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model SCT-013-050
Rated Input (rms) (A) 50
Max. Input (A) -
Rated output (V) 1
Linearity <0.2%
Accuracy ±1%
Work voltage (V) 660
Frequency range 50Hz – 1KHz
Dielectric strength 3.5KV 50Hz 1min
Operating Temperature (°C) -25 ~ 70
Connecting cable length (m) 1
Length (mm) 57.5
Width (mm) 34
Height (mm) 21
Weight (gm) 64
Shipment Weight 0.07 kg
Shipment Dimensions 8 × 6.5 × 2.5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Dimensional diagram:

Package Includes:

1 x Non-invasive AC current Sensor Split Core Current Transformer SCT-013-050 50A
