Gravity: Analog AC Current Sensor (20A)

RBD-1972
DFRobot

  • Brand Gravity
  • Analog AC Current Sensor 20A
  • AC Current Signal Conversion Module
  • Open Type AC Transformer Probe Included
  • Non-contact Measurement
BDT 3,250.00
BDT 3,250.00 BDT 3,250.00 BDT 3,250.00 BDT 3,250.00
Tax included Tax excluded Tax included Tax excluded
BDT 3,250.00 Tax excluded
BDT 3,250.00 Tax included
BDT 0.00 Tax
BDT 3,250.00 Tax excluded
BDT 0.00 Tax
BDT 3,250.00 Tax included
Quantity
Out-of-Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

When you want to measure the AC current, are you still having trouble cutting the wires, wiring, or soldering. Gravity: Analog AC Current Sensor comes to the rescue, eliminating the need to cut wires or reconnect circuits. Simply clamp the AC transformer probe on the AC line, and then plug the 3.5mm headphone jack into the signal conversion module to read the current AC current value. The analog output is designed to be compatible with 3V3/5V micro-controller. It can be conveniently used for AC current measurement to monitor AC motors, lighting equipment, air compressors, etc. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

Features:

  1. Non-contact measurement, high safety
  2. Multiple ranges for various measurement scenarios
  3. Compatible with 3V3/5V micro-controller

Applications:

  1. AC motor automatic monitoring
  2. Lighting and electrical equipment measurement

General Specification
AC Current Signal Conversion Module
Input Voltage (VCC) 3.3V-5.5V
Interface Gravity Analog (PH2.0-3P，analog voltage output 0.2-2.8V DC)
AC Voltage Input Range 0-1V (AC RMS)
Relative Error ±4%
Dimension 32×27 mm /1.26×1.06 in
Weight 5g
Open Type AC Transformer Probe
AC Current Range 0-20A
Signal Output (standard Φ3.5mm 3P plug) 0-1V AC voltage, linear corresponding range 0-20A
Accuracy ±1%
Non-linearity ≤±0.2%
Frequency Range 50Hz~1kHz
Cable Length 1m
Working Temperature -25 ℃~+70 ℃
Opening Size 13×13 mm / 0.51×0.51 in
Weight 50g
Shipment Weight 0.070 kg
Shipment Dimensions 13 ×11 × 4 cm

Please allow 5% measuring deviation due to manual measurement.

Documentation:

  1. Product Wiki

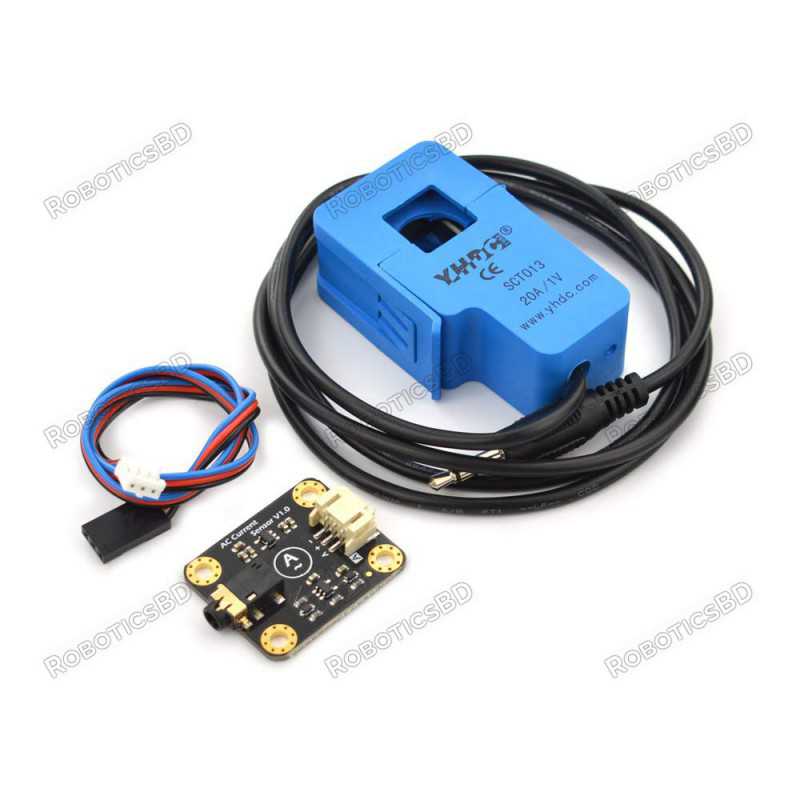

Package Includes:

1 x AC Current Signal Conversion Module

1 x Open Type AC Transformer Probe  (20A)

1 x Gravity-3P Analog Sensor Cable
