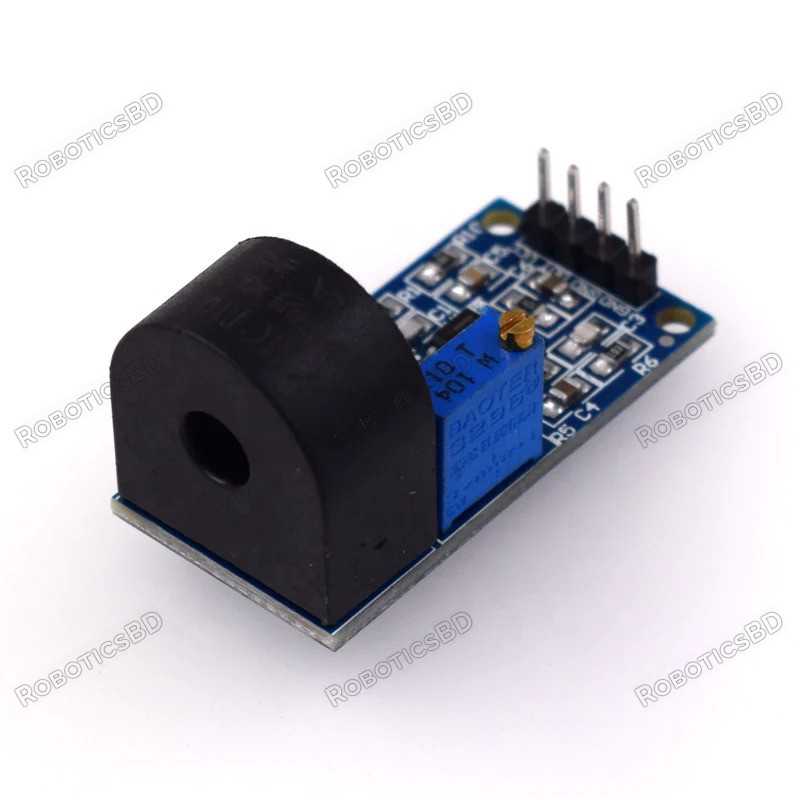

HW670 5A Current Sensor

RBD-2120

  • Onboard precision microcurrent transformer.
  • Onboard sampling resistor.
  • The module can measure AC currents less than 5A, the corresponding analog output 5A/5mA.
BDT 200.00
BDT 200.00 BDT 200.00 BDT 200.00 BDT 200.00
Tax included Tax excluded Tax included Tax excluded
BDT 200.00 Tax excluded
BDT 200.00 Tax included
BDT 0.00 Tax
BDT 200.00 Tax excluded
BDT 0.00 Tax
BDT 200.00 Tax included
Quantity
In-Stock
11 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

HW-670 AC current Sensor is the best for the purpose of the DIY project and industrial application, where we need to measure the accurate AC current with current transformer. This is an perfect choice to measure the AC current using Arduino/ESP8266/Raspberry Pi like an opensource platform. In many electrical projects, engineer directly deals with measurements with few basic requirements.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Onboard precision micro current transformer
  2. High precision op-amp circuit board, do accurate sampling for the signal and appropriate compensation, and other functions
  3. The module can measure within 5A current communication , corresponding to output analog quantity can be adjusted
  4. PCB board size : 38 (mm) x18.5 (mm)

General Specification
Rated Input Current (A) 5
Rated Output Current (mA) 5
The linear range 0 ~ 10A (100 ohms)
Change 1000: 1
Linearity 0.002
Precision Rating 0.2
Sealing material Epoxy Resin
Operating Temperature (°C) -40 to 90
Length (mm) 40
Width (mm) 19
Height (mm) 22
Weight (gm) 8
Shipment Weight 0.010 kg
Shipment Dimensions 10 × 6 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

Package Includes:

1 x HW670 5A Current Sensor

Product Details
RBD-2120
11 Items

Specific References

EAN13
2120
