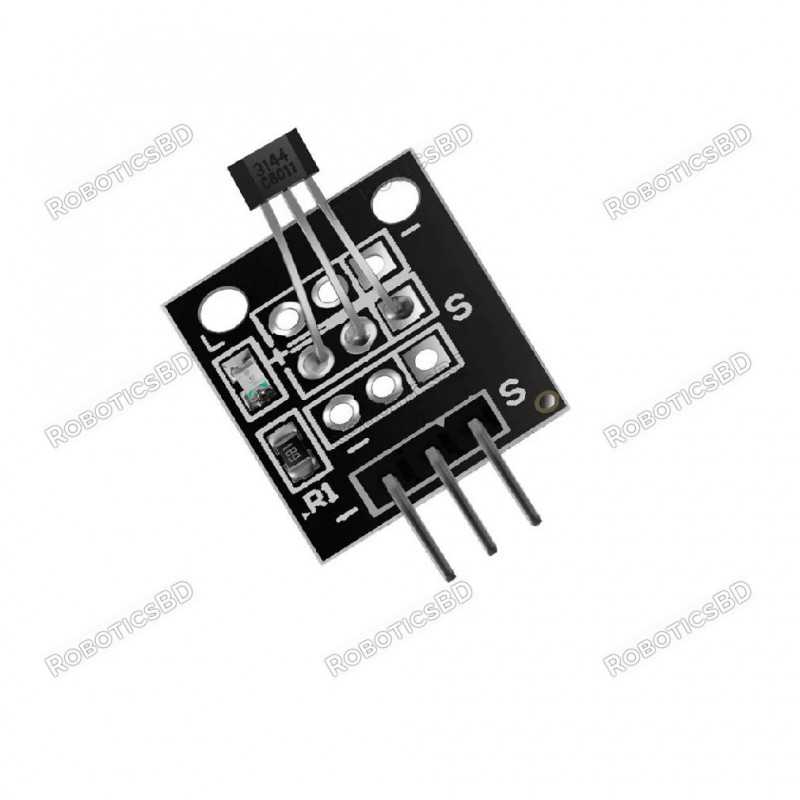

A3144 Hall Effect Sensor Module

RBD-2073

  • Digital Output Hall-effect sensor.
  • Operating voltage: typically 5V.
  • Output Current: 25mA.
  • It can be used to detect both the poles of a magnet.
BDT 60.00
BDT 60.00 BDT 60.00 BDT 60.00 BDT 60.00
Tax included Tax excluded Tax included Tax excluded
BDT 60.00 Tax excluded
BDT 60.00 Tax included
BDT 0.00 Tax
BDT 60.00 Tax excluded
BDT 0.00 Tax
BDT 60.00 Tax included
Quantity
In-Stock
57 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The A3144 Hall Effect Sensor Magnet Detector Switch for Arduino is a switch that will turn on/off in the presence of a magnetic field. If no magnetic field is present, the signal line of the sensor is HIGH (3.5 V). If a magnetic field is presented to the sensor, the signal line goes LOW, at the same time the LED on the sensor lights up. An onboard LED will also indicate the presence of a magnetic field.

Pin Connection

Connect the Powerline (middle) to +5V and ground (-) to GND. Connect signal (s) to any digital pin on the Arduino.

Product Images are shown for illustrative purposes only and may differ from the actual product.

Note: Product images/ Components brand may vary from actual product as our stock rotates.

Note: PCB might be different from the picture as per stock

Features :

  1. Digital Output Hall-effect sensor.
  2. Operating voltage: typically 5V.
  3. Output Current: 25mA.
  4. It can be used to detect both the poles of a magnet.
  5. The output voltage is equal to the operating voltage.
  6. Operating temperature: -40°C to 85°C.
  7. Turn on and Turn off time is 2 μsec each.
  8. Inbuilt reverse polarity protection.
  9. Suitable for Automotive and Industrial Applications.

General Specification
Color Black
Operating Voltage (VDC) 5
Power Consumption at Rest 3mA
Power Consumption when Switched 8mA
Operating Temperature (°C) -40 to 90
Length (mm) 20
Width (mm) 16
Weight (gm) 2
Shipment Weight 0.005 kg
Shipment Dimensions 12 × 8 × 2.5 cm

Please allow 5% measuring deviation due to manual measurement.

Package Includes :

1 x A3144 Hall Effect Sensor Magnet Detector Switch for Arduino.

Product Details
RBD-2073
57 Items

Specific References

EAN13
2073
