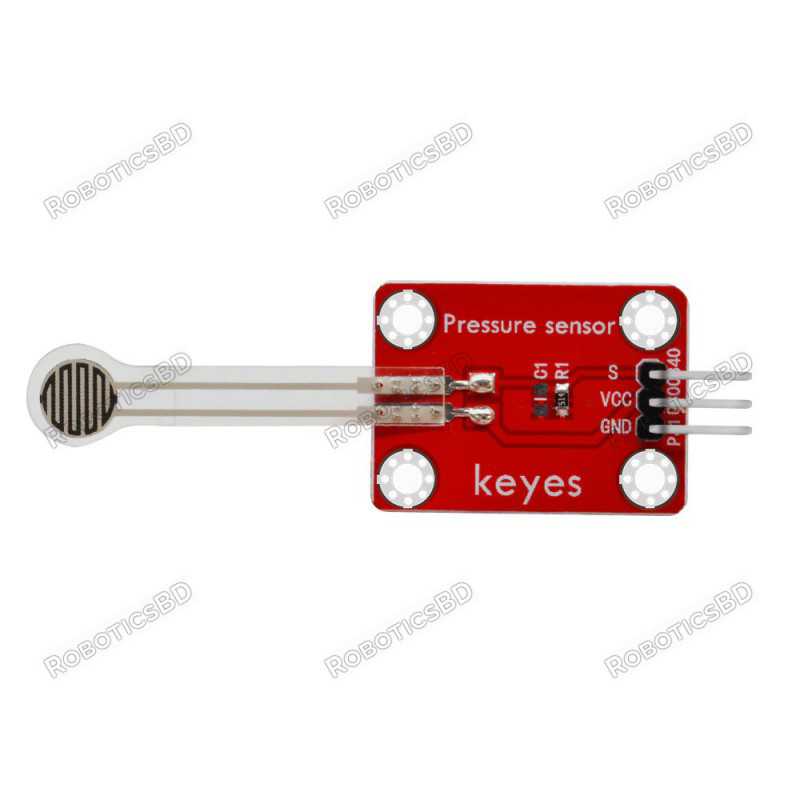

Resistive Film Pressure Sensor Module Pin Header Analog Signal 200mm Robotics Bangladesh
  • Resistive Film Pressure Sensor Module Pin Header Analog Signal 200mm Robotics Bangladesh

Resistive Film Pressure Sensor Module Pin Header Analog Signal 200mm

RBD-1854

  • This module is compatible with various microcontroller control boards, such as arduino series microcontrollers.
  • The module contains 2 kinds of interfaces.
  • The module comes with a 20cm wire, which is long enough for your use.
  • It has a short response time and quick response.
BDT 590.00
BDT 590.00 BDT 590.00 BDT 590.00 BDT 590.00
Tax included Tax excluded Tax included Tax excluded
BDT 590.00 Tax excluded
BDT 590.00 Tax included
BDT 0.00 Tax
BDT 590.00 Tax excluded
BDT 0.00 Tax
BDT 590.00 Tax included
Quantity
In-Stock
35 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This sensor adopts the flexible Nano pressure-sensitive material with an ultra-thin film pad. It has the functions of water-proof and pressure detection.

When the sensor detects the outside pressure, the resistance of sensor will make a change. So we can use the circuit to convert the pressure signal that senses pressure change into the corresponding electric signal output. In this way, we can know the conditions of pressure changes by detecting the signal changes. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Smart Home
  2. Consumer Electronics
  3. Vehicle Electronics
  4. Medical Equipment
  5. Pressure Detection
  6. Smart Robot

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. The thin film pressure sensor is an ultra-thin film based on a new type of Nano pressure-sensitive material supplemented by a comfortable Young's modulus
  2. The substrate is made by one-time patching, which has the dual functions of waterproof and pressure sensitive
  3. When the sensor senses external pressure, the sensor resistance value changes
  4. A circuit is used to convert the pressure signal sensed by the sensor into an electrical signal with a corresponding change in strength for output. In this way, the pressure change can be obtained by detecting the change of the electrical signal
  5. This product is compact in structure and easy to use, suitable for beginners to learn programming, and can also be used in more complex systems

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Wire length 200mm
Working voltage DC3.3-5V
Location hole size 3mm in diameter
Control signal analog signal
Range 0-5KG
Thickness <0.3mm
Response point 150g
Repeatability <±9.7% (60% load)
Consistency ±10%
Durability >1 million times
Initial resistance greater than 10MΩ (no load)
Response time <1 ms
Recovery time <15ms
Working temperature -20°C~60°C
Size 67*22mm
Weight 2.4g
Shipment Weight 0.005 kg
Shipment Dimensions 9 × 8 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Pressure Detection

Package Includes:

1 x Resistive Film Pressure Sensor Module Pin Header Analog Signal 200mm
