SN04-N NPN NO 5mm Distance Detector Proximity Sensor Switch Module Robotics Bangladesh
  • SN04-N NPN NO 5mm Distance Detector Proximity Sensor Switch Module Robotics Bangladesh

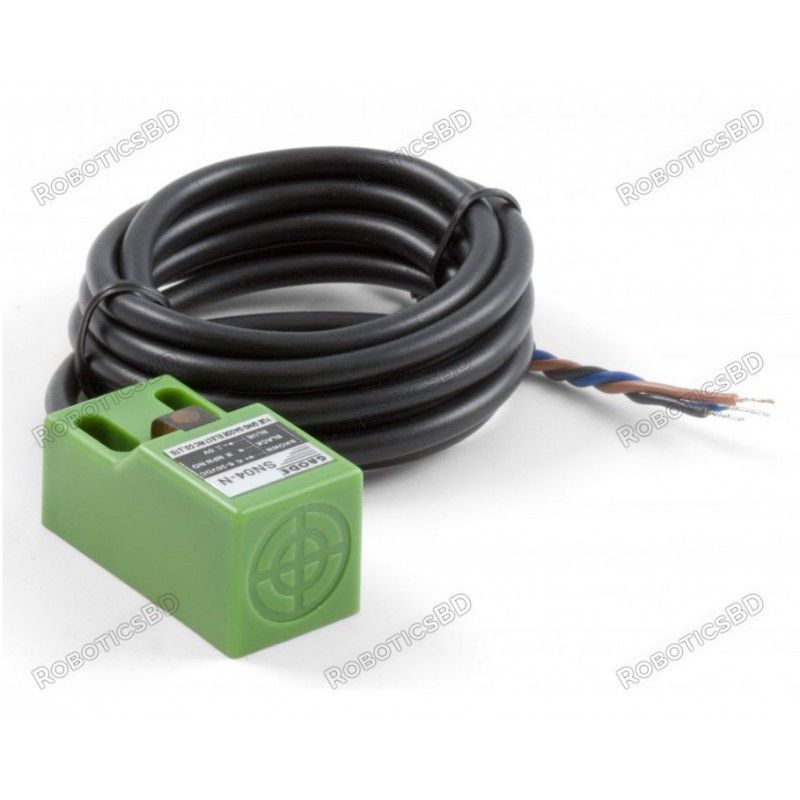

SN04-N NPN NO 5mm Distance Detector Proximity Sensor Switch Module

RBD-2804

  1. Operating Voltage(V): 5 ~24
  2. Current Consumption Max: 5 mA
  3. Detection distance(mm): 5 mm.
  4. Type of detection: Inductive.
  5. Cable Length: 145 cm.
  6. Response Frequency: 500Hz Max.
  7. Protection class: IP 67.
BDT 450.00
BDT 450.00 BDT 450.00 BDT 450.00 BDT 450.00
Tax included Tax excluded Tax included Tax excluded
BDT 450.00 Tax excluded
BDT 450.00 Tax included
BDT 0.00 Tax
BDT 450.00 Tax excluded
BDT 0.00 Tax
BDT 450.00 Tax included
Quantity
18 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This SN04-N NPN NO 5mm Distance Detector Proximity Sensor Switch Module will detect the presence of a metallic object within 4mm of the surface of the sensor.

The detection distance may vary slightly depending on the shape, size, and type of metal the object is made of. It can detect through thin, non-metallic materials and has an LED indicator that turns on when the device is powered and increases in brightness when an object is detected.

Wire Connections:

  1. Brown wire: 5 ~ 24 VDC (+Ve).
  2. Blue wire: 0 V (GND).
  3. Black wire: signal.
Note: This product is available in two colors as Green and Blue, which are shipped randomly to our customers.

Features :

  1. Red LED checks the state of the proximity sensor
  2. High repeated positioning accuracy
  3. High switching frequency
  4. Wide voltage range
  5. Antivibration, dust, water and oil prevention
  6. Reverse power protection, short circuit protection, directly connecting with PLC
  7. It can replace small switches and limit switches.

Package Includes :

1 x SN04-N NPN NO 5mm Distance Detector Proximity Sensor Switch Module
