KS-RG22 High Precision Electric Eye Color Sensor Robotics Bangladesh
  • KS-RG22 High Precision Electric Eye Color Sensor Robotics Bangladesh

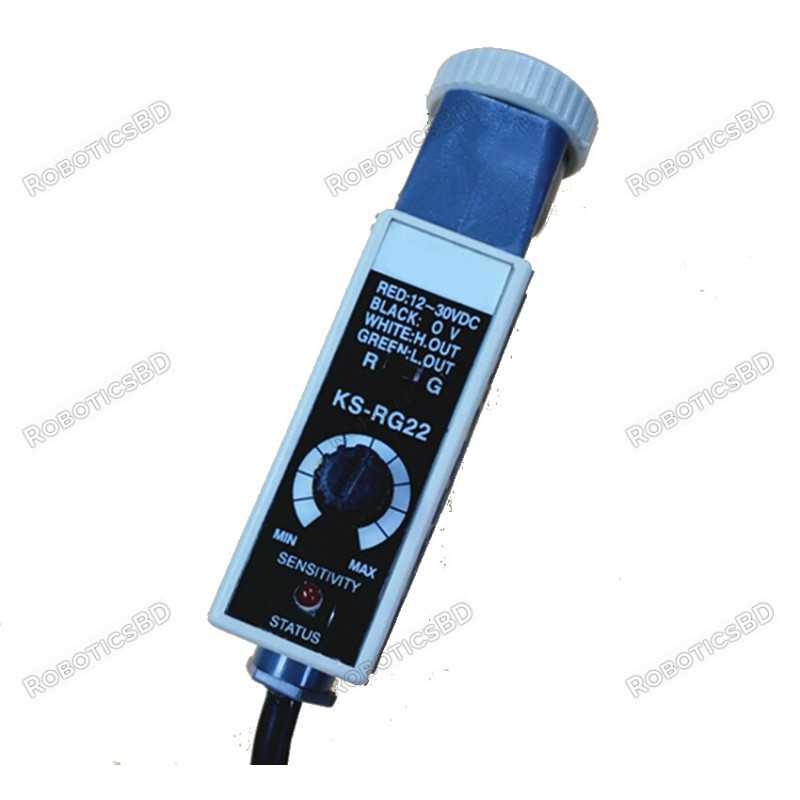

KS-RG22 High Precision Electric Eye Color Sensor

RBD-1860

  • Model KS-RG22
  • Coaxial reflection type
  • Supply voltage DC10-30V±10%
BDT 4,790.00
BDT 4,790.00 BDT 4,790.00 BDT 4,790.00 BDT 4,790.00
Tax included Tax excluded Tax included Tax excluded
BDT 4,790.00 Tax excluded
BDT 4,790.00 Tax included
BDT 0.00 Tax
BDT 4,790.00 Tax excluded
BDT 0.00 Tax
BDT 4,790.00 Tax included
Quantity
In-Stock
5 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Photoelectric sensor, or photo eye, is a device used to detect the distance, absence, or presence of an object by using a light transmitter, often infrared, and a photoelectric receiver. They are used extensively in industrial manufacturing. Photoelectric sensor adopts the coaxial reflective type; emission sources used special Poly-type LED light; and several different light sources for option. Widely used for all kinds of vertical automatic packaging machines, Horizontal packaging machines, all kinds of bag making machines, cutting machine, slitting machine, and printing machines. As a color-coded identification sign, it can precisely control bags' length and auto-correction. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Various packaging machines
  2. Sanctions machines
  3. printing presses.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. With sensitivity adjustment knob and action indicator, making adjustment easy and easy.
  2. With short circuit protection and power polarity protection, it can effectively prevent circuit damage.
  3. Excellent detection ability to detect marks of different colors.
  4. Fast response, response time is only 0.1-1ms.
  5. Lighting and dark motion can be selected through the control line.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model KS-G22
Light source Green
Detection method Coaxial reflection type
Detection distance 10mm ± 2mm
Supply voltage DC10-30V±10%
Current consumption Less than 45mA
Source chromatogram White, Red, Green, Blue (selected according to model number)
Light spot φ0.5-1.5
Detection angle Vertical deviation of the light from the detector is ±2°
Response time 0.1-0.5ms
Output mode Dark, Bright, Selectable
Protection level IP67 (anti-dark and dustproof)
Ambient temperature Work -15- +65 °, save is -25- +80 °
Lead wire φ5.4VC four core sheathed shielded cable Standard length 2M
Light-resistant environment White woven lamp <3000Lx, sunlight 10000 Lx
Housing ABS engineering plastic
Shipment Weight 0.165 kg
Shipment Dimensions 14 × 9 × 4 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x KS-RG22 High Precision Electric Eye Color Sensor
