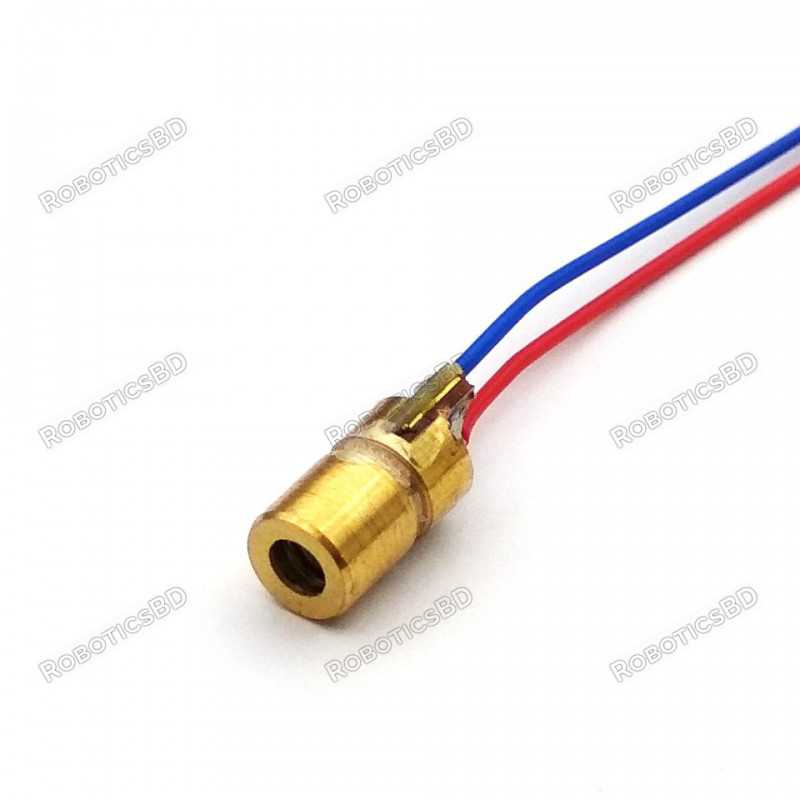

5mW Adjustable Laser Dot Diode Module Robotics Bangladesh
  • 5mW Adjustable Laser Dot Diode Module Robotics Bangladesh
  • 5mW Adjustable Laser Dot Diode Module

5mW Adjustable Laser Dot Diode Module

RBD-0150

  • Output Power: 5mW
  • Working Voltage: 3-3.3V DC
  • Working temperature: -10 ℃~＋40 ℃
  • Housing material: Copper
  • Working life: more than 2000 hours
  • Spot mode: Dot Facula (continuous output)
  • Laser wavelength: 650nm red-colored.
  • Operating current: <40mA
  • Power lead length: 120mm.
  • 5V could damage the laser
BDT 26.00
BDT 26.00 BDT 26.00 BDT 26.00 BDT 26.00
Tax included Tax excluded Tax included Tax excluded
BDT 26.00 Tax excluded
BDT 26.00 Tax included
BDT 0.00 Tax
BDT 26.00 Tax excluded
BDT 0.00 Tax
BDT 26.00 Tax included
Quantity
In-Stock
164 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Housing Material Copper
Laser Output Type Dot Facula (continuous output)
Dimensions(Dia.xLen.) mm 6×10
Weight (gm) 2
Operating Voltage (VDC) 3-3.3V
Operating Temperature (°C) -10 to 50
Output Power 5mW
Wavelength (nm) 650
Working Current <40mA
Working Life more than 2000 hours
Cable Length (cm) 7
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x 5mW Adjustable Laser Dot Diode Module
