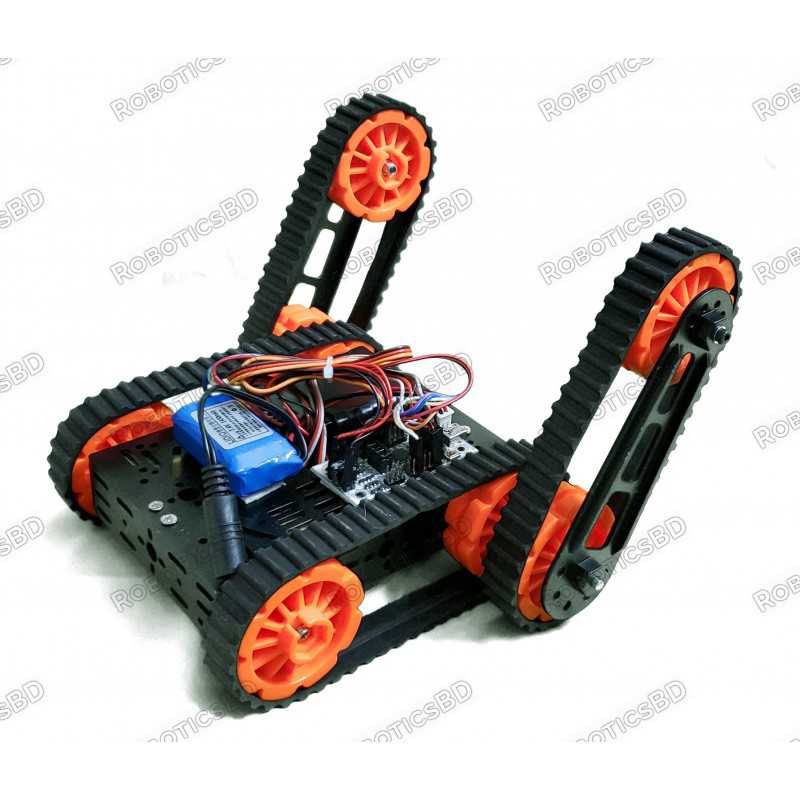

The Multi-Chassis Tracked Robot Kit (Tank Climber) is an easy to assemble and use robot chassis platform. The Multi-Chassis kit provides you with everything you need to give your robot a fast four wheel drive platform with plenty of room for expansion to add various sensors and controllers. This chassis is designed with a robotic top-level climbing structure of 262mm in length. It can climb steps up to 150mm high. Hobbyists love this robot since it is small but, can handle rough terrain. RoboticsBD
The standard version of the tank chassis (DG012-SV), add a pair of additional tracks and four 52 mm diameter wheels, equip them with two DC motors with 48:1 gearboxes and a metal shaft plus one servo and you get the DG012-RP chassis, the most comprehensive of all the Dagu Multi-Chassis robotics platforms!
The DG012-RP Multi-Chassis model will keep you busy for quite some time – first you’ll need to mount the tank platform with its dual track system before then customizing your mobile robot, so you’ll have your work cut out! RoboticsBD
Assembling your Rescue Vehicle tank chassis should pose no particular problems, since the kit comes with all the necessary parts and tools as well as an illustrated manual. RoboticsBD
Once mounted, all that remains is for you to decide what you want to do with this mobile robot, capable even of climbing stairs. You can for example install your microcontroller on the chassis to manage all your chosen sensors and other accessories, hence increasing your mini-tank’s autonomy or intelligence. We’ll leave the rest to you. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Maximum load: On the move: 7.5 kg (on earth, test with 7,4 V 1100 mAh 10C 8.14 Wh Li-ion battery)
- Maximum load: Not moving: 50 kg (on stable support)
- 2 DC motors with 48:1 gearmotor and metal shaft
- 4 high-quality all-terrain tracks
- 8 x 52 mm diameter wheels for moving over sand and grass and in puddles and mounting structures up to 150 mm in height
Applications
- Educational Projects: Perfect for students and educators looking to explore robotics and build customized robots.
- Robotic Prototyping: Use it as a versatile platform for prototyping and testing different robot designs.
- Rescue and Exploration: Ideal for developing robots capable of navigating and exploring challenging or disaster-stricken environments.
- Custom Robot Development: Create specialized robots for specific tasks, such as automated deliveries or remote surveillance.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Dimensions |
262 x 222 x 60 mm |
| Net weight |
800 g |
| Operating voltage |
6–9 V (a LiPo 7.2 V battery is ideal) |
| Shipment Weight |
0.800 kg |
| Shipment Dimensions |
26.5 × 22.5 × 6 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Multi Chassis Rescue
- Encoder Kit
Package Includes:
1 x Multi Chassis Tank Stair Climber.
