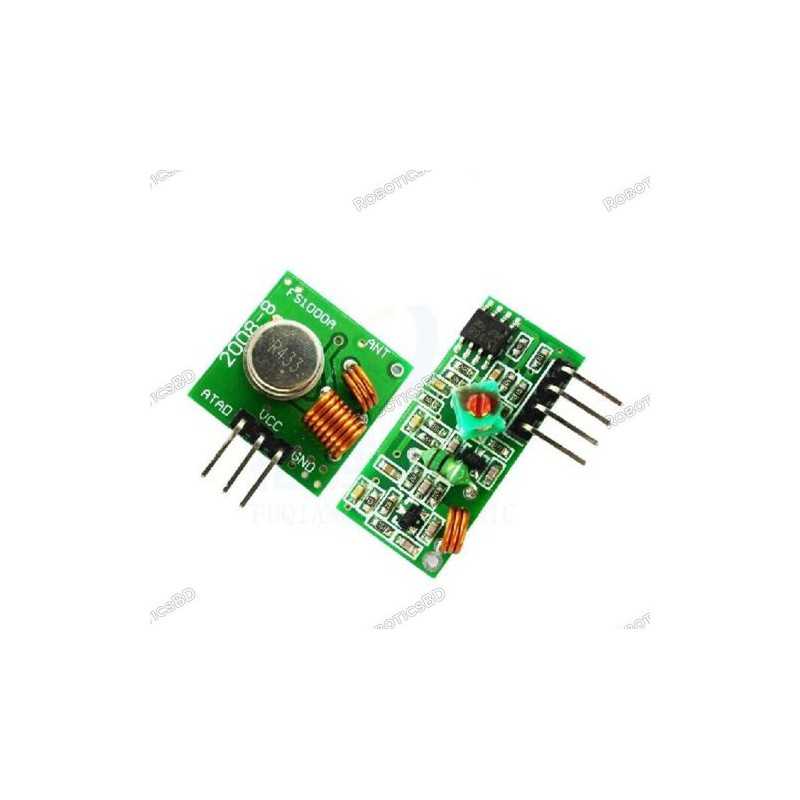

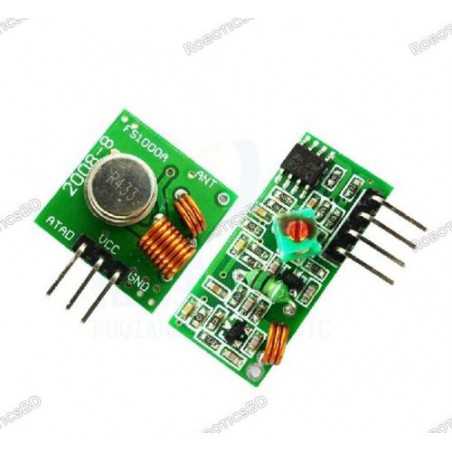

RF Transmitter Receiver Pair 433 MHz
  • RF Transmitter Receiver Pair 433 MHz

RF Transmitter Receiver Pair 433 MHz

RBD-0688

  • Wide input supply (2.5 V to 12V)
  • Easy to integrate (V+, GND, and Data)
  • The device in deep sleep mode when Data pin is grounded
  • Very small dimension.
BDT 117.00
BDT 117.00 BDT 117.00 BDT 117.00 BDT 117.00
Tax included Tax excluded Tax included Tax excluded
BDT 117.00 Tax excluded
BDT 117.00 Tax included
BDT 0.00 Tax
BDT 117.00 Tax excluded
BDT 0.00 Tax
BDT 117.00 Tax included
Quantity
In-Stock
145 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This RF module comprises an RF Transmitter and an RF Receiver. The transmitter/receiver (Tx/Rx) pair operates at a frequency of 433 MHz. An RF transmitter receives serial data and transmits it wirelessly through RF through its antenna connected at pin4. RoboticsBD

The transmission occurs at the rate of 1Kbps – 10Kbps. The transmitted data is received by an RF receiver operating at the same frequency as that of the transmitter.

This low-cost RF transmitter can be used to transmit signals up to 100 meters (the antenna design, working environment, and supply voltage will seriously impact the effective distance). It’s good for a short distance, battery power device development. 433 MHz is the operating frequency for transmitter and receiver pair.  Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. Wide input supply (2.5 V to 12V)
  2. Easy to integrate (V+, GND, and Data)
  3. The device in deep sleep mode when Data pin is grounded
  4. Very small dimension. RoboticsBD

Receiver Module specification :

Receiver

Operation voltage: DC5V
Static Current: 4MA
Receiver frequency: 433.92MHZ; 315 Mhz
Sensitivity：－105DB
Dimension：30*14*9mm
External Antenna：32CM signal wire, spiral

Transmitter Module Specification :

Operating voltage: 3-12V
Operating frequency: 433.92MHz; 315Mhz
Standby current: 0mA
Operating current :20-28mA
Transmission distance:> 500m (open to receiving plate sensitivity at-103dBm distance of more than)
Output Power: 16dBm (40mW)
Transfer rate: <10Kbps
Modulation mode: OOK (Amplitude Modulation)
Operating Temperature: -10 ℃ ~ +70 ℃
Size: 19 × 19 × 8mm

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Transmitter specification As per below
Operating voltage 3-12V
Operating frequency 433.92MHz; 315Mhz
Operating current 20 – 28 mA
Transmission distance > 500 m
Output Power 16dBm (40mW)
Transfer rate <10Kbps
Dimensions (mm) 19 x 19 x 8 (L x W x H)
Receiver specification As per below
Operation voltage DC 5V
Receiver frequency 433.92MHZ; 315 Mhz
Sensitivity －105DB
External Antenna 32CM signal wire，spiral
Dimensions(mm) 30 x 14 x 9 (L x W x H)
Shipment Weight 0.06 kg
Shipment Dimensions 5 × 5 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x 433mHz Transmitter.

1 x 433mHz Receiver.
